FR157 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR157

Preview

FR157: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-15,; CategoryDiscrete semiconductor diode; File Size234KB，2 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric View All

FR157 Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-15,

FR157 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	O-PALF-W2
Reach Compliance Code	compliant
Is Samacsys	N
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

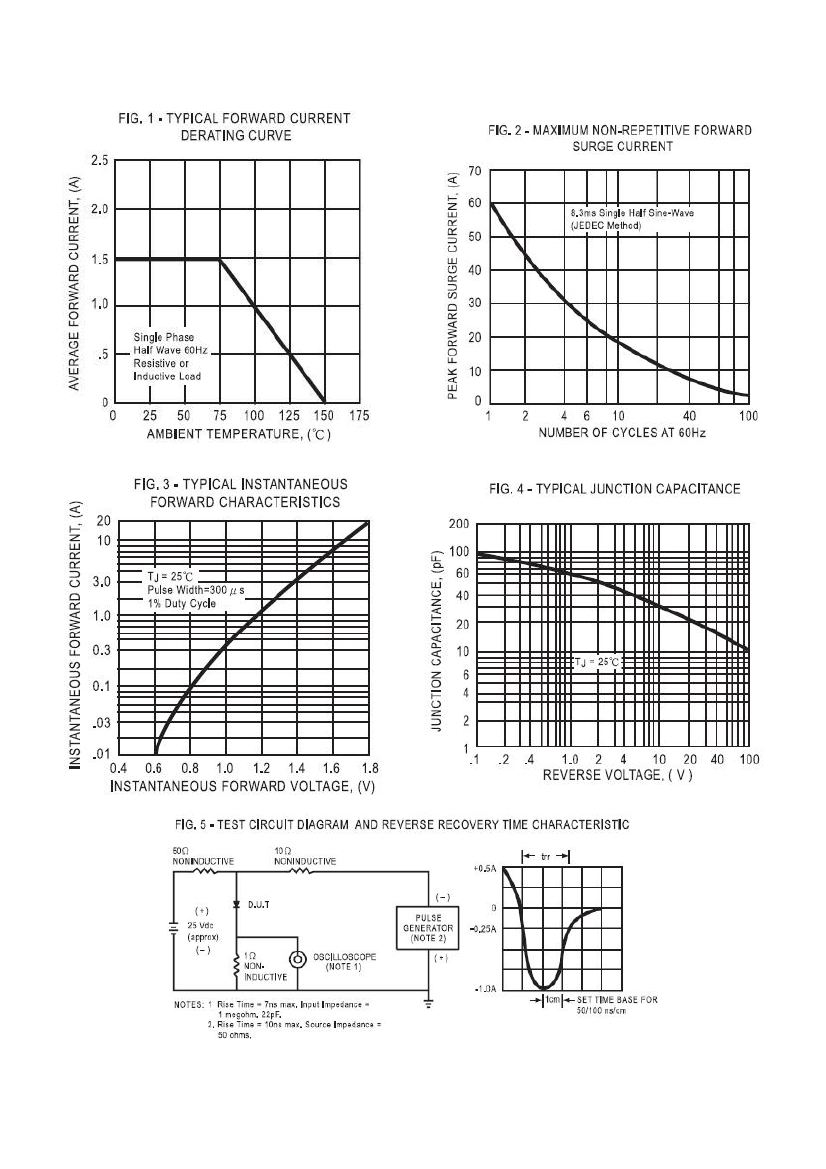

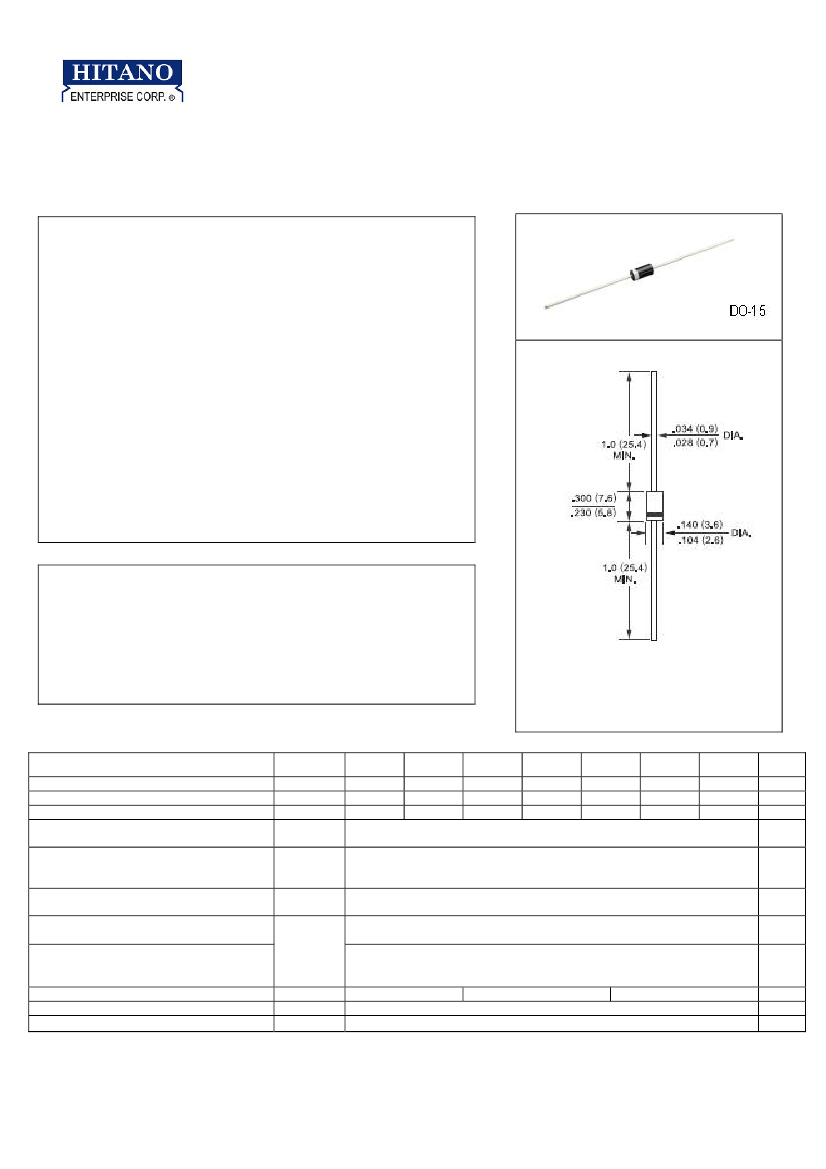

HITANO ENTERPRISE CORP.

FR151-FR157

TECHNICAL SPECIFICATIONS OF FAST RECTIFIER

VOLTAGE RANGE – 50 to 1000 Volts CURRENT – 1.5 Amperes

FEATURES

*Fast switching

*Low leakage

*Low forward voltage drop

*High current capability

*High current surge

*High reliability

MECHANICAL DATA

*Case : Molded plastic

*Epoxy : UL 94V-0 rate flame retardant

*Lead : MIL-STD-202E , Method 208 guaranteed

*Mounting position : Any

*Weight : 0.38 gram

MAXIMUM RATINGS AND ELECTRICAL

CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise

specified.

Single phase, half wave, 60 Hz , resistive or inductive load.

For capacitive load , derate current by 20%.

Dimensions in inches and

(millimeters)

SYMBOL

FR151

FR152

FR153

FR154

FR155

FR156

FR157

UNIT

S

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified

Current At T

A

=75℃

Peak Forward Surge Current 8.3 ms

single half sine-wave superimposed on

rated load (JEDEC Method)

Maximum instantaneous Forward Voltage

at 1.5A DC

Maximum DC Reverse Current at Rated

DC Blocking Voltage T

A

=25℃

Maximum Full Load Reverse Current

Full Cycle Average, .375*(9.5mm)

lead length at TL=55℃

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range

V

RRM

V

RMS

V

DC

l

O

I

FSM

V

F

50

35

50

100

70

100

200

140

200

400

280

400

1.5

60

1.3

5.0

600

420

600

800

560

800

1000

700

1000

Valts

Amps

Valts

uAmp

s

uAmp

s

I

R

100

trr

C

J

T

J

, T

STG

150

250

40

-65 to +150

500

nSec

pF

℃

NOTES: 1. Test Conditions : I

F

= 0.5A ,I

R

= 1.0A ,I

RR

= 0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0 volts.
