BA4116FVE2 datasheet, PDF - EEWORLD Datasheet

BA4116FVE2: DescriptionSPECIALTY TELECOM CIRCUIT, PDSO16, 0.65 MM PITCH, SSOP-16; CategoryWireless rf/communication Telecom circuit; File Size200KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA4116FVE2 Overview

SPECIALTY TELECOM CIRCUIT, PDSO16, 0.65 MM PITCH, SSOP-16

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDSO-G16
JESD-609 code	e3/e2
length	5 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.2 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
Base Number Matches	1

Communication ICs

FM IF detector for cordless phones

BA4116FV

The BA4116FV is an IC with mixing circuit, IF circuit, FM detector circuit, RSSI circuit, and noise detector circuit. As it

can operate at low voltages, it is ideal for use in cordless phones.

FApplications

Cordless phones, amateur short wave radios, and other portable wireless equipment

FFeatures

1) Input frequencies of 10MHz to 150MHz can be ac-

commodated.

2) Low-voltage operation. (1.8 to 5.5V)

3) Excellent temperature characteristic.

4) High sensitivity; 12dB SINAD sensitivity = 8dBµVEMF

(50

Ω)

5) High intercept point. (–11dBm)

6) Small package used. (0.65mm pitch)

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

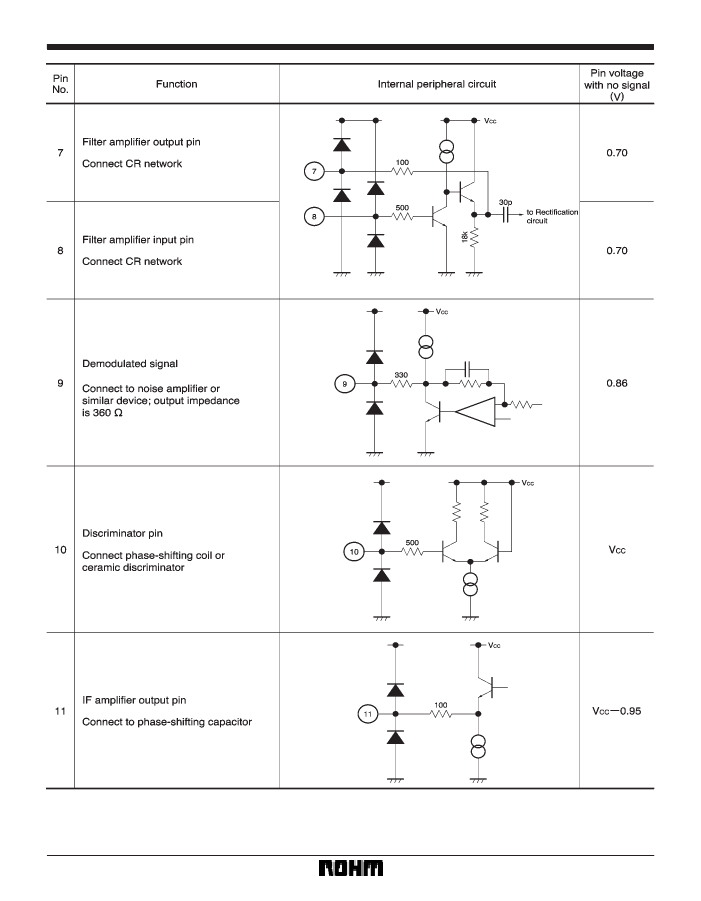

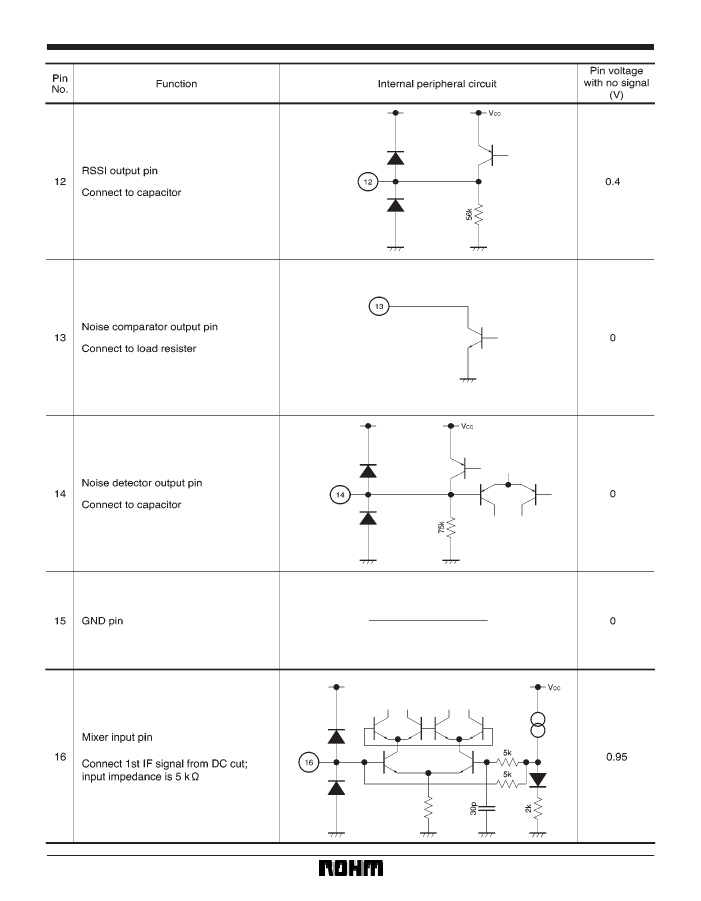

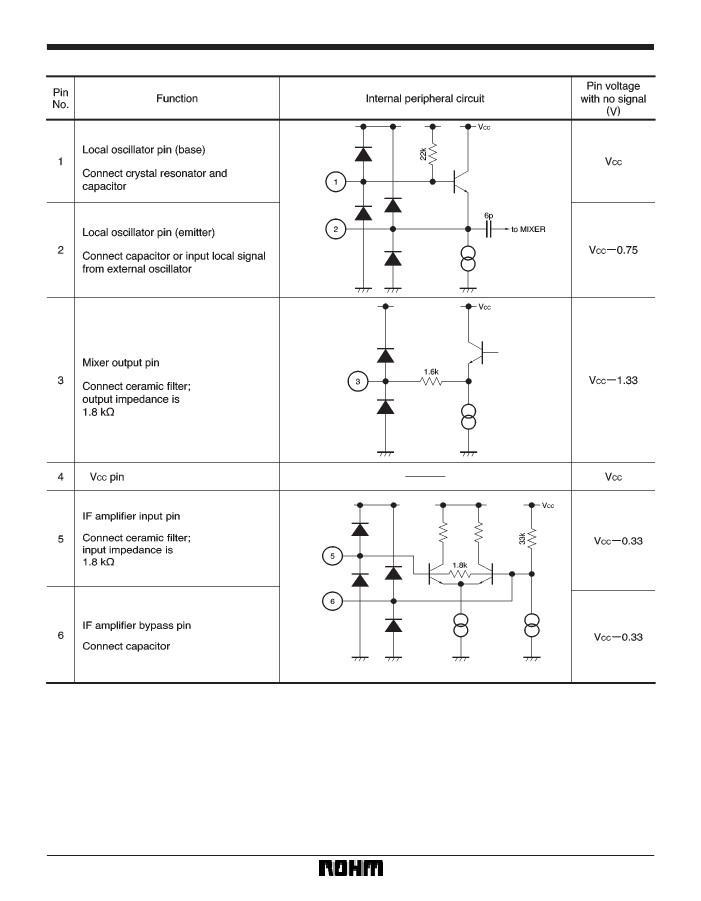

52

	BA4116FVE2	BA4116FV-E2
Description	SPECIALTY TELECOM CIRCUIT, PDSO16, 0.65 MM PITCH, SSOP-16	Frequency range: 10MHz ~ 150MHz Number of mixers: 1 RF type: Cordless phone Gain: 18dB Noise figure: -
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	SOIC	SOIC
package instruction	TSSOP,	0.65 MM PITCH, SSOP-16
Contacts	16	16
Reach Compliance Code	unknown	compliant
JESD-30 code	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3/e2	e3/e2
length	5 mm	5 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Telecom integrated circuit types	TELECOM CIRCUIT	TELECOM CIRCUIT
Temperature level	OTHER	OTHER
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
width	4.4 mm	4.4 mm
Base Number Matches	1	1
