BA8206FE2: DescriptionTELEPHONE RINGER CKT, PDSO8, SOP-8; CategoryWireless rf/communication Telecom circuit; File Size106KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA8206FE2 Overview

TELEPHONE RINGER CKT, PDSO8, SOP-8

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDSO-G8
JESD-609 code	e3/e2
length	5 mm
Number of functions	1
Number of terminals	8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.6 mm
surface mount	YES
Telecom integrated circuit types	TELEPHONE RINGER CKT
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
Base Number Matches	1

Communication ICs

Tone ringer IC for telephone set

BA8206 / BA8206F

The BA8206 and BA8206F are tone ringer ICs which produce a bell sound from a ringing signal. The frequency of the

bell sound can be varied by changing the constants of the external resistance and capacitors.

The operation initiation current dissipation can be changed at the RSL pin.

Also, the output load can be selected, as a piezoelectric buzzer, a transformer coupled speaker, or other similar devices.

FApplications

Telephones, multi-function telephones, telephone answering machines, facsimiles, equipment involving telephones

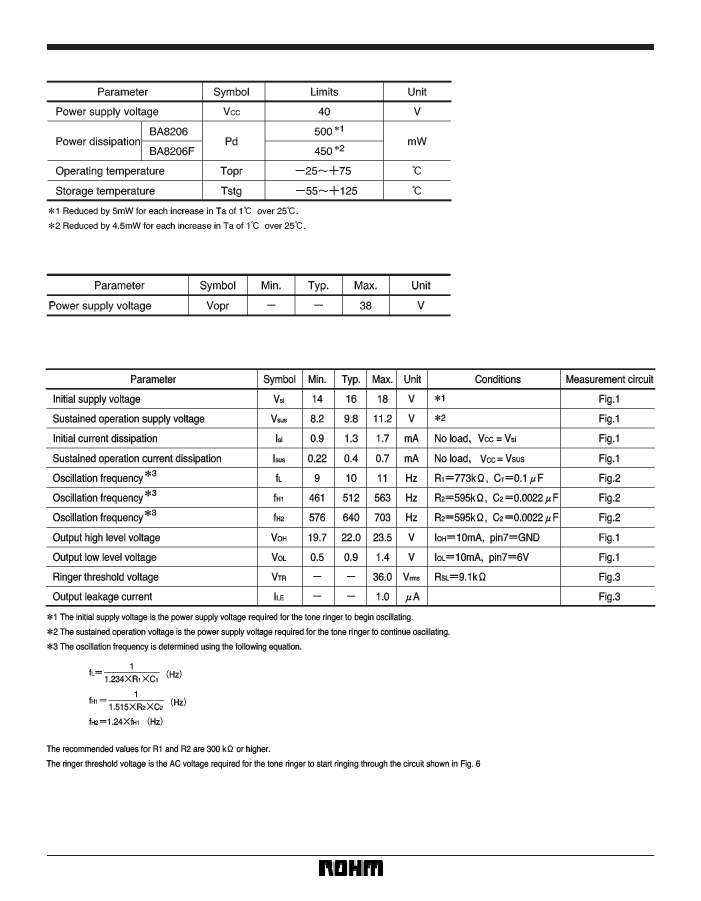

FFeatures

1) Low current dissipation.

2) Withstands up to 40V.

3) Operation initiation current dissipation can be

changed using RSL pin.

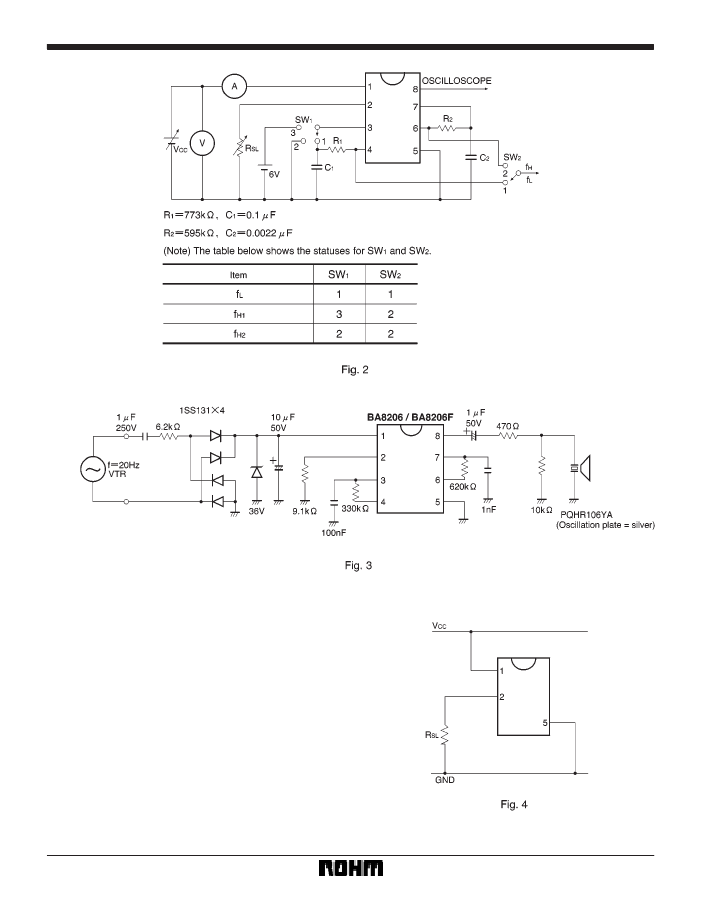

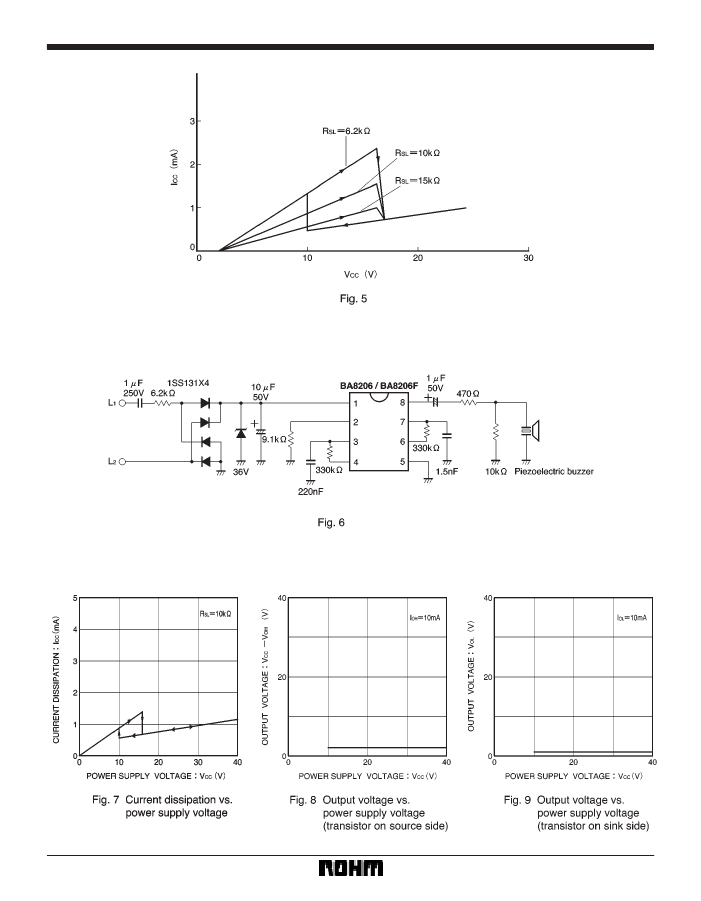

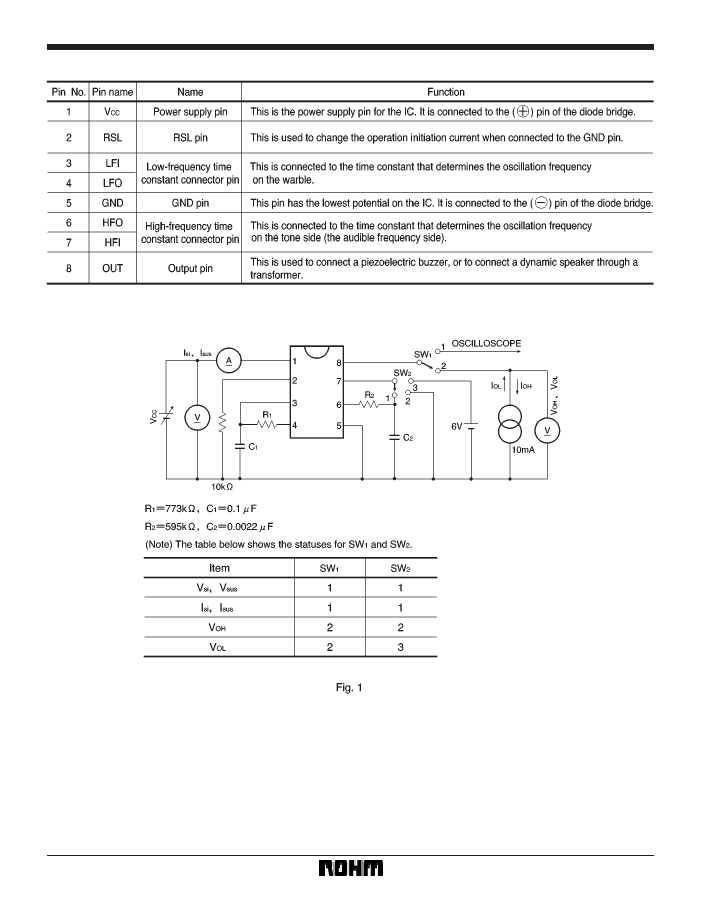

FBlock

diagram

4) Pin layout is compatible with the BA8205, BA6565A,

and ML8205.

252
