1226-A1D-15S-CA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1226-A1D-15S-CA

1226-A1D-15S-CA: DescriptionD Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size427KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1226-A1D-15S-CA Overview

D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle

1226-A1D-15S-CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.494 inch
subject depth	0.237 inch
body length	1.214 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	1226
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

http://www.tekcon.com

http://www.tekcon.com.tw

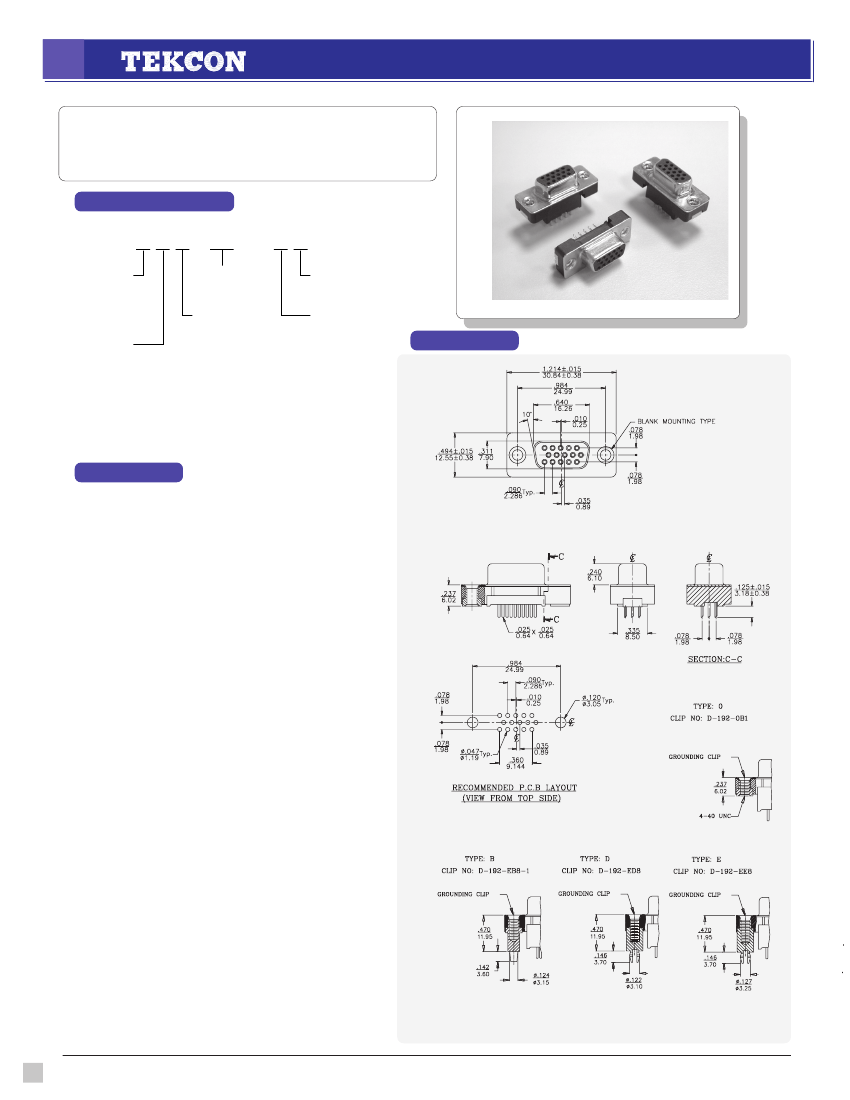

1226 Series

D-Sub Miniature Connector

Vertical, One Metal Shell, Receptacle

Ordering Information

1226

X X X

15 S

X X

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

A - Gold Flash

Hex-Nut

Type 0,1,6

see Hex-Nut Table

(P.14-4, Appendix D.)

NO. of Contact

Grounding Clip

0- no finger for (4-40 UNC)

B- 2 finger for

3.20mm

(tapper dip type)

D- 2 finger for

3.05mm

(board lock type)

E- 2 finger for

3.18mm

(board lock type)

Shell Plating

A - Nickel (Std.)

B - Tin

Profile:

A - 6.02 mm

B - 7.90 mm

C - 11.48 mm

D - 7.10 mm

E - 11.95 mm (for 9 pin)

F - 11.00 mm

Dimension

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic, UL94V-0.

Shell:

Steel with Nickel Plating (Tin on Request).

Contact:

Copper Alloy.

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

Hex-Nut:

Brass with Tin Plating.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

Voltage Rating:

600V.

Current Rating:

5 AMP.

Contact Resistance:

10 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

4-13
