ECS-FREQ8-10-5G3XADM-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-FREQ8-10-5G3XADM-TR

ECS-FREQ8-10-5G3XADM-TR: DescriptionParallel - 3Rd Overtone Quartz Crystal, 26MHz Min, 39.999MHz Max, ROHS COMPLIANT, SMD, 3 PIN; CategoryPassive components Crystal/resonator; File Size168KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-FREQ8-10-5G3XADM-TR Overview

Parallel - 3Rd Overtone Quartz Crystal, 26MHz Min, 39.999MHz Max, ROHS COMPLIANT, SMD, 3 PIN

ECS-FREQ8-10-5G3XADM-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	500 µW
frequency stability	0.01%
frequency tolerance	25 ppm
JESD-609 code	e3
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	39.999 MHz
Minimum operating frequency	26 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

Case Ground

Industry Std. HC-49US Package

Extended Temp Range Option

RoHS Compliant

CSM-7X-3L

SMD CRYSTAL

The CSM-7X-3L is a low profile SMD Crystal with case ground

is ideal for applications that require a case ground.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

CSM-7X-3L

MIN

3.57

TYP

MAX

70.000

± 30 *

± 50 *

Series

500

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-10 to +70°C

Specify in P/N

-10

-55

@ +25°C ±3°C

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

3.57 ~ 4.999

Fundamental

150

13.000 ~ 19.999

Fundamental

5.000 ~ 5.999

Fundamental

20.000 ~ 30.000

Fundamental

6.000 ~ 6.999

Fundamental

30.100

~ 39.999

3rd Overtone

100

7.000 ~ 8.999

Fundamental

40.000 ~ 70.000

3rd Overtone

9.000 ~ 12.999

Fundamental

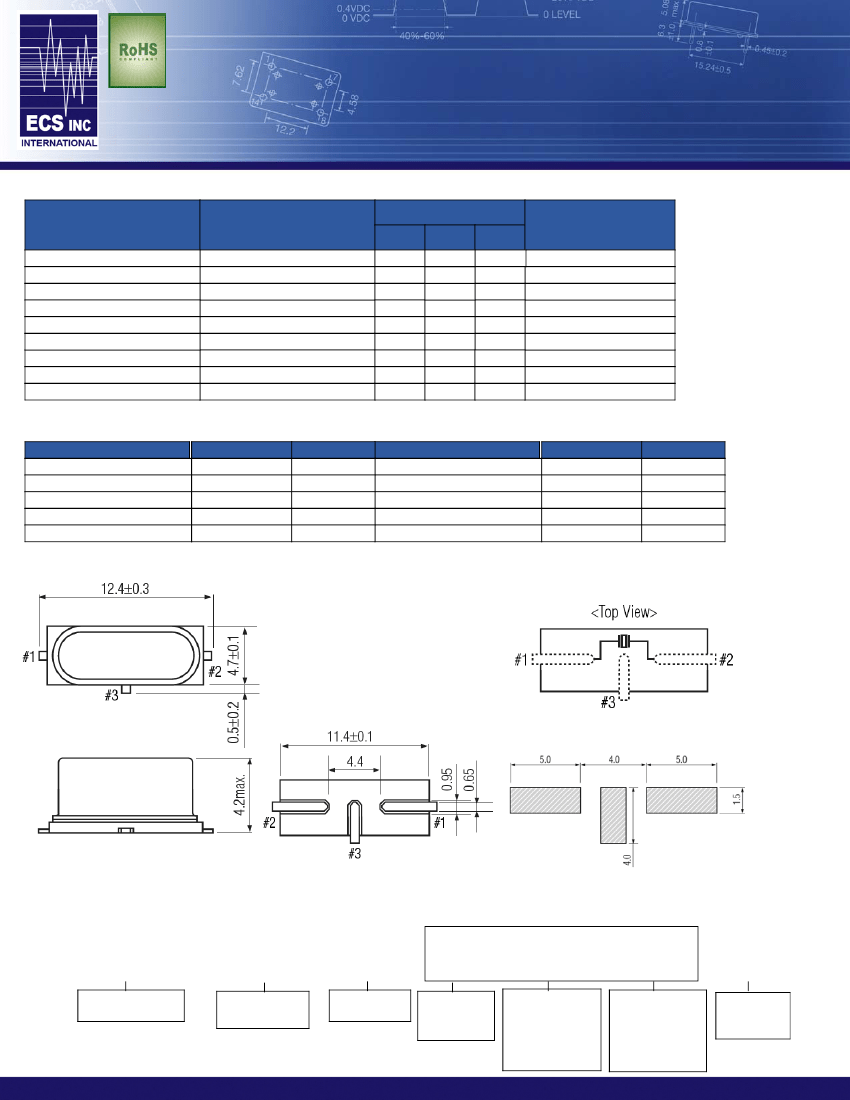

DIMENSIONS (mm)

Figure 2) Crystal Connection

Figure 1) Top, Side, and Bottom views

Figure 3) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-5G3XDS-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

5G3X =

CSM-7X-3L

Custom Options

Tolerance

Blank = Std

A = ± 25 ppm

C = ± 10 ppm

Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

- Packaging

TR= Tape

& Reel

1K/Reel

Rev 11/07

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
