74LS181NA+1 datasheet, PDF - EEWORLD Datasheet

74LS181NA+1: DescriptionArithmetic Logic Unit, TTL, PDIP24,; Categorylogic logic; File Size427KB，7 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

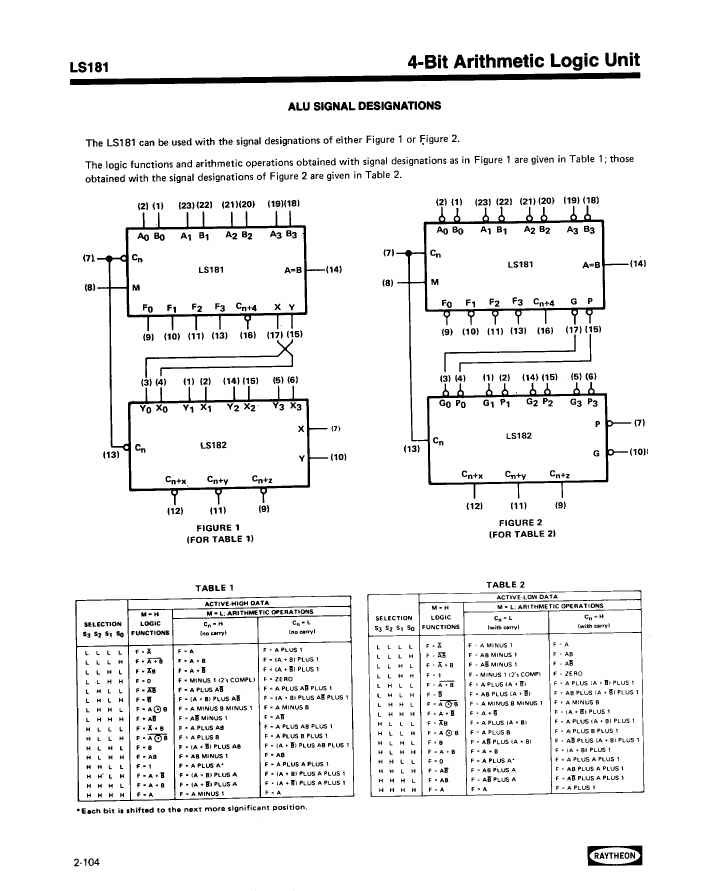

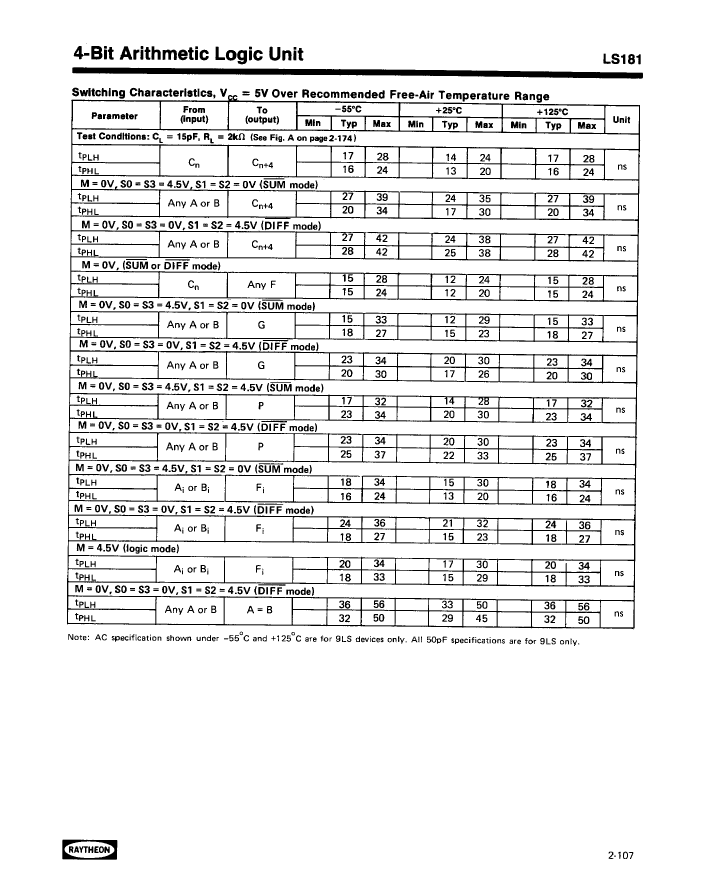

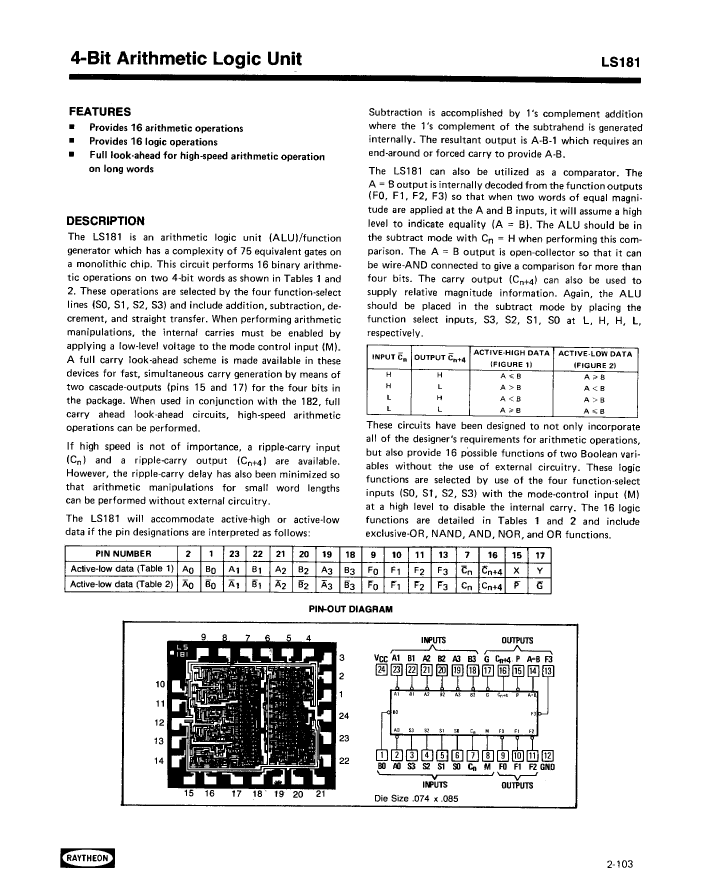

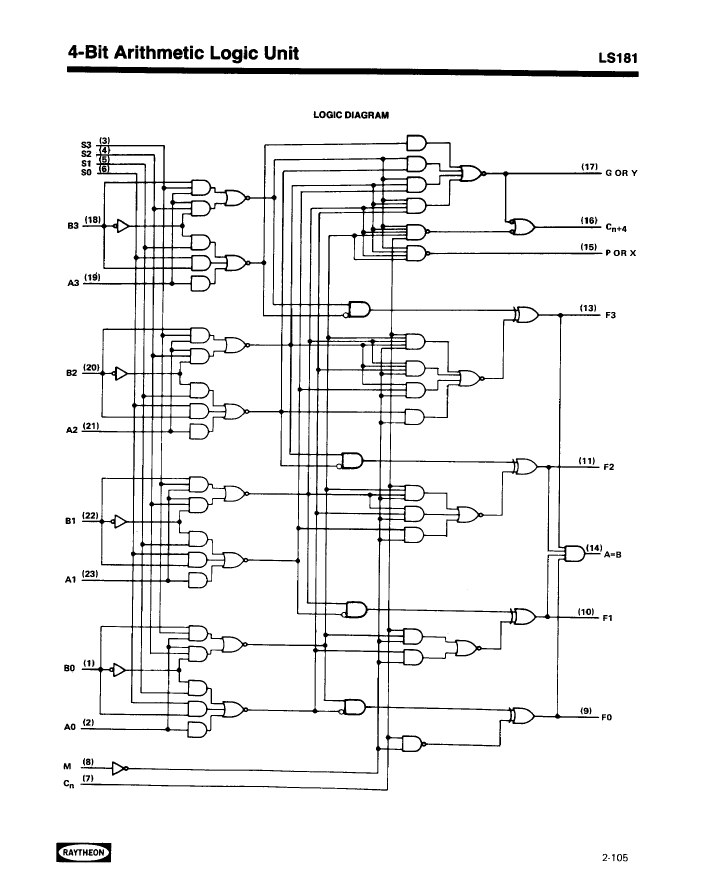

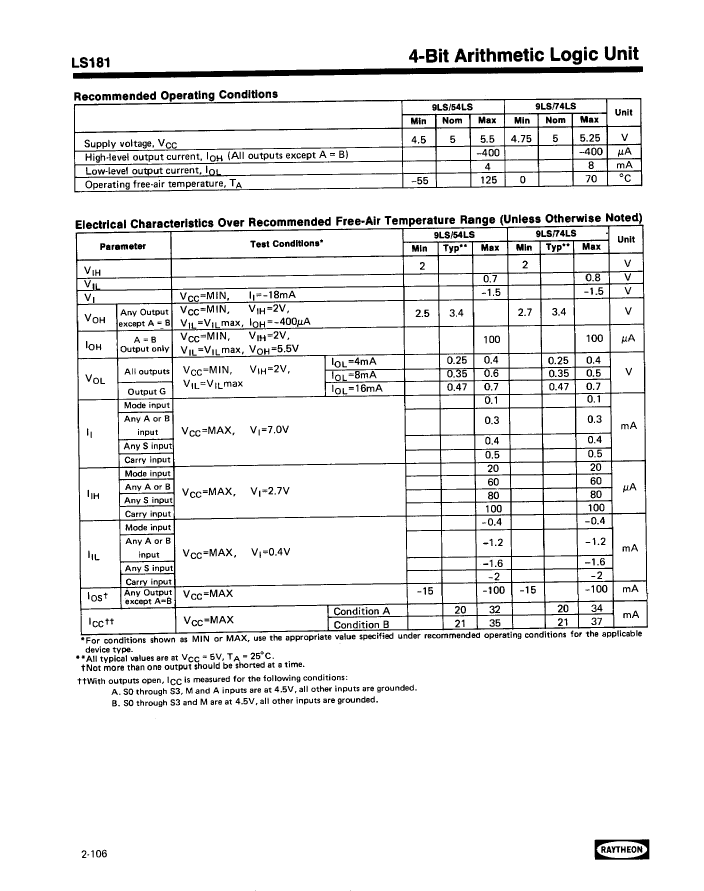

74LS181NA+1 Overview

Arithmetic Logic Unit, TTL, PDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	74LS181NA+1	74LS181NA+2	74LS181N
Description	Arithmetic Logic Unit, TTL, PDIP24,	Arithmetic Logic Unit, TTL, PDIP24,	Arithmetic Logic Unit, TTL, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of terminals	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Is Samacsys	N	N	-
Certification status	Not Qualified	-	Not Qualified
Base Number Matches	1	1	-
