UMH9NTR

Description
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon, ROHS COMPLIANT, UMT6, SC-88, 6 PIN
CategoryDiscrete semiconductor    The transistor
File Size476KB,8 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

UMH9NTR Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon, ROHS COMPLIANT, UMT6, SC-88, 6 PIN

UMH9NTR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionSMALL OUTLINE, R-PDSO-G6
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)68
JESD-30 codeR-PDSO-G6
Humidity sensitivity level1
Number of components2
Number of terminals6
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz
Base Number Matches1
EMH9 / UMH9N / IMH9A
NPN 100mA 50V Complex Digital Transistors
(Bias Resistor Built-in Transistors)
lOutline
Parameter
Tr1 and Tr2
EMT6
(6)
(1)
(5)
(4)
Datasheet
UMT6
I
C(MAX.)
R
1
R
2
lFeatures
V
CC
50V
100mA
10kW
47kW
SMT6
(6)
(1)
(5)
(4)
(2)
(3)
(2)
(3)
EMH9
(SC-107C)
(4)
(5)
UMH9N
SOT-353 (SC-88)
1) Built-In Biasing Resistors.
2) Two DTC114Y chips in one package.
3) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit).
4) The bias resistors consist of thin-film resistors
with complete isolation to allow negative biasing
of the input. They also have the advantage of
completely eliminating parasitic effects.
5) Only the on/off conditions need to be set for
operation, making the circuit design easy.
6) Lead Free/RoHS Compliant.
(6)
(3)
(2)
(1)
IMH9A
SOT-457 (SC-74)
lInner
circuit
EMH9 / UMH9N
OUT
(6)
IN
(5)
GND
(4)
OUT
(4)
IMH9A
IN
(5)
GND
(6)
lApplication
Inverter circuit, Interface circuit, Driver circuit
(1)
GND
(2)
IN
(3)
OUT
(3)
GND
(2)
IN
(1)
OUT
lPackaging
specifications
Part No.
EMH9
UMH9N
IMH9A
Package
EMT6
UMT6
SMT6
Package
size
(mm)
1616
2021
2928
Taping
code
T2R
TR
T108
Basic
Reel size Tape width
ordering
(mm)
(mm)
unit (pcs)
180
180
180
8
8
8
8,000
3,000
3,000
Marking
H9
H9
H9
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
1/7
2012.06 - Rev.B

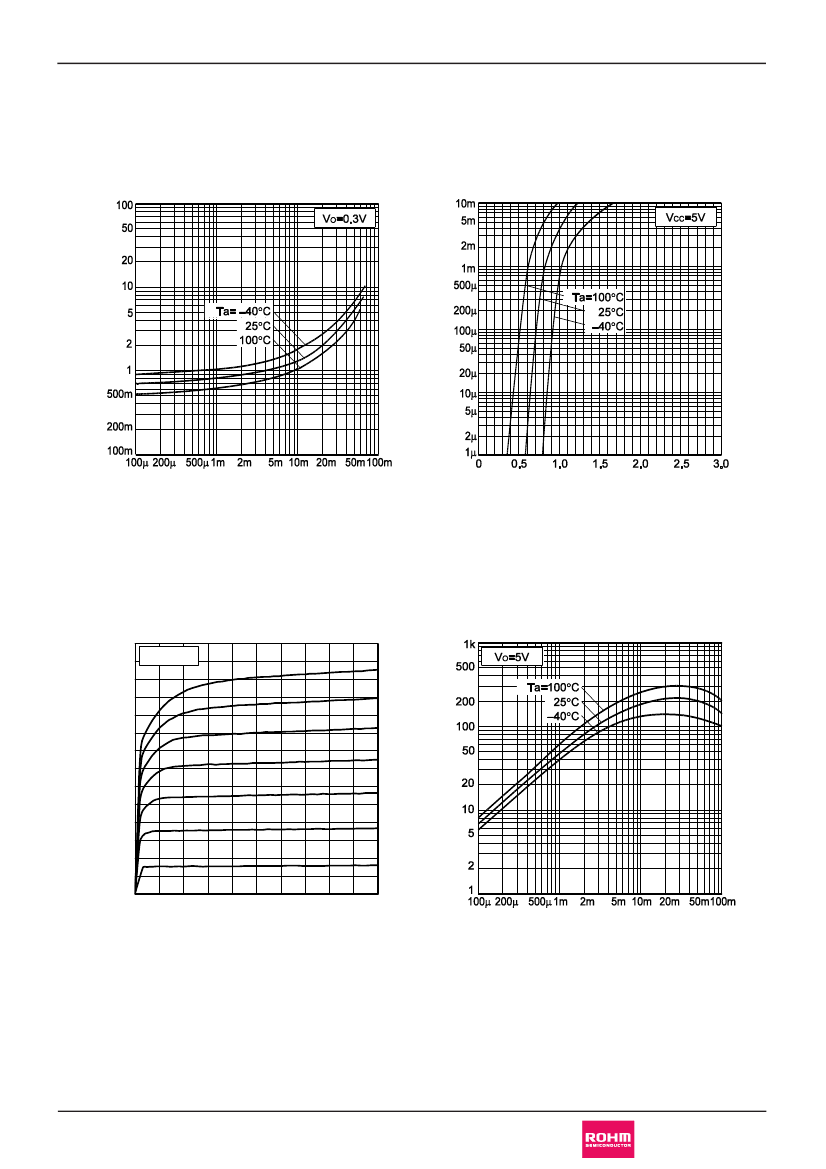

UMH9NTR Related Products

UMH9NTR IMH9AT108
Description Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon, ROHS COMPLIANT, UMT6, SC-88, 6 PIN Small Signal Bipolar Transistor, 0.07A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon,
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
package instruction SMALL OUTLINE, R-PDSO-G6 SMALL OUTLINE, R-PDSO-G6
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Maximum collector current (IC) 0.1 A 0.07 A
Collector-emitter maximum voltage 50 V 50 V
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE) 68 68
JESD-30 code R-PDSO-G6 R-PDSO-G6
Number of components 2 2
Number of terminals 6 6
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260
Polarity/channel type NPN NPN
surface mount YES YES
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 10 10
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
