EP630LC-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> EP630LC-15

EP630LC-15: DescriptionOT PLD, 17ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size125KB，4 Pages; ManufacturerAltera (Intel)

Download Datasheet Parametric Compare View All

EP630LC-15 Overview

OT PLD, 17ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28

EP630LC-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCJ, LDCC28,.5SQ
Contacts	28
Reach Compliance Code	compliant
Other features	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS
Architecture	PAL-TYPE
maximum clock frequency	71.4 MHz
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
length	11.5062 mm
Dedicated input times	4
Number of I/O lines	16
Number of entries	20
Output times	16
Number of product terms	160
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4 DEDICATED INPUTS, 16 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220
power supply	5 V
Programmable logic type	OT PLD
propagation delay	17 ns
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.5062 mm
Base Number Matches	1

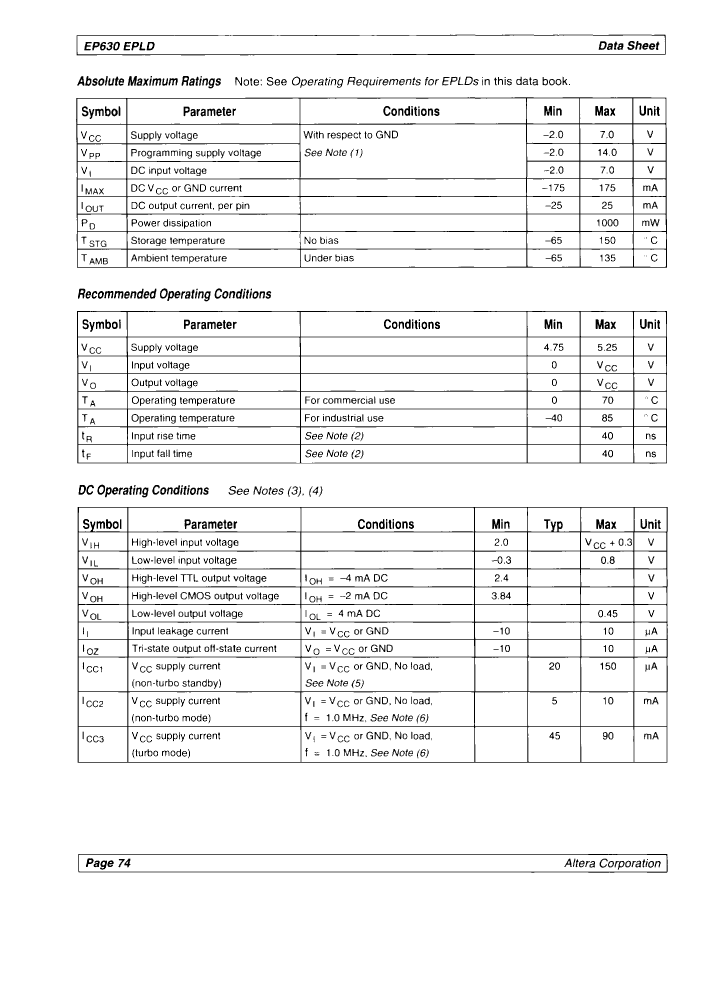

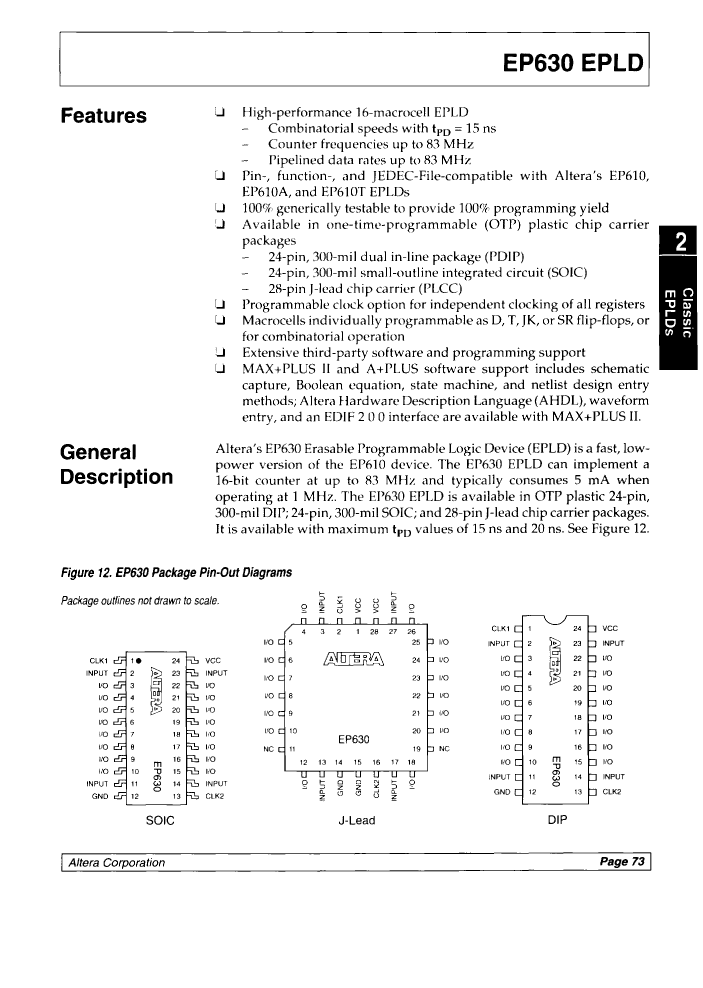

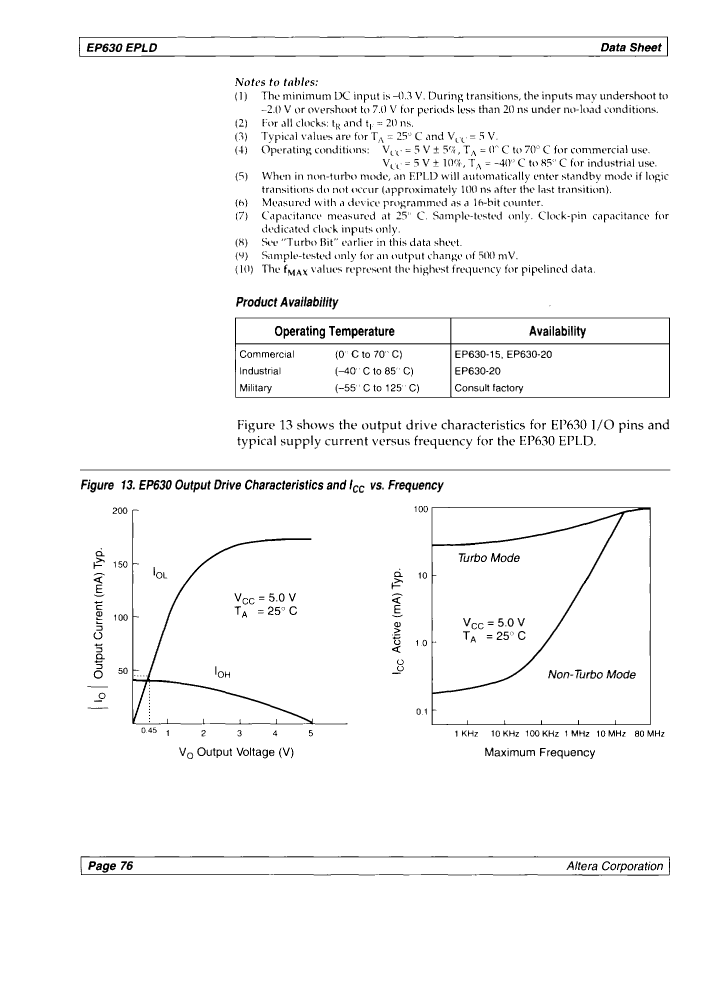

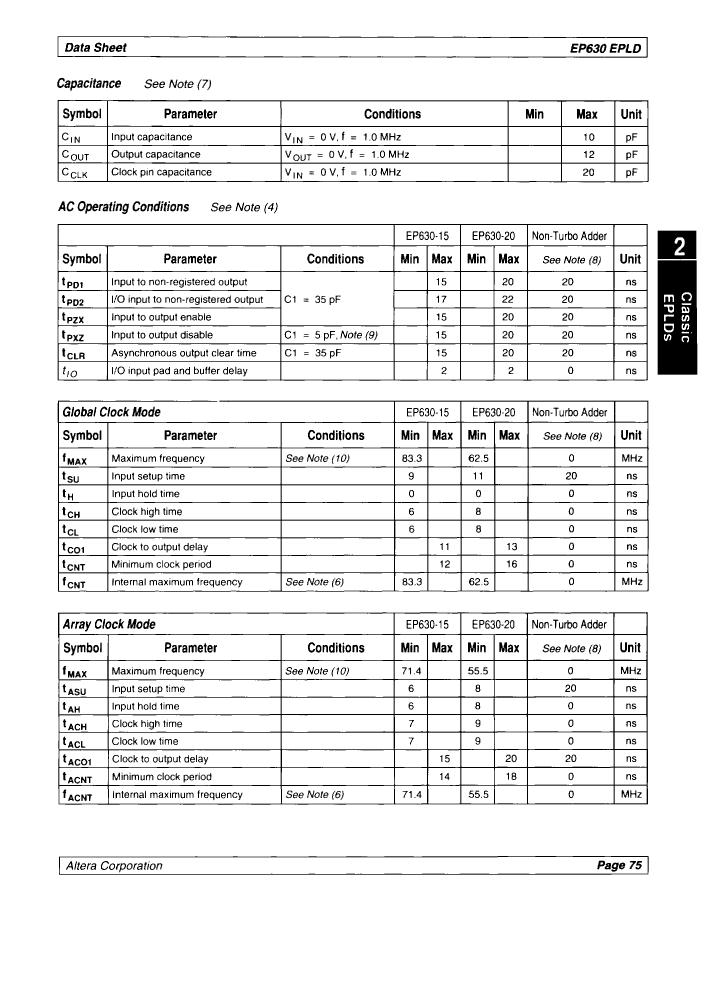

Preview

Download Datasheet

View All

EP630LC-15 Related Products

	EP630LC-15	EP630LC-20	EP630LI-20	EP630PC-15	EP630PC-20	EP630PI-20	EP630SC-15	EP630SC-20	EP630SI-20
Description	OT PLD, 17ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28	OT PLD, 22ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28	OT PLD, 22ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28	OT PLD, 17ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	OT PLD, 22ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	OT PLD, 22ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	OT PLD, 17ns, PAL-Type, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	OT PLD, 22ns, PAL-Type, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	OT PLD, 22ns, PAL-Type, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	QLCC	QLCC	DIP	DIP	DIP	SOIC	SOIC	SOIC
package instruction	QCCJ, LDCC28,.5SQ	QCCJ, LDCC28,.5SQ	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	SOP, SOP24,.4	SOP, SOP24,.4
Contacts	28	28	28	24	24	24	24	24	24
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS	MACROCELLS INTERCONNECTED BY GLOBAL BUS; 16 MACROCELLS; 2 EXTERNAL CLOCKS
Architecture	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE
maximum clock frequency	71.4 MHz	55.5 MHz	55.5 MHz	71.4 MHz	55.5 MHz	55.5 MHz	71.4 MHz	55.5 MHz	55.5 MHz
JESD-30 code	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	11.5062 mm	11.5062 mm	11.5062 mm	31.6865 mm	31.6865 mm	31.6865 mm	15.4 mm	15.4 mm	15.4 mm
Dedicated input times	4	4	4	4	4	4	4	4	4
Number of I/O lines	16	16	16	16	16	16	16	16	16
Number of entries	20	20	20	20	20	20	20	20	20
Output times	16	16	16	16	16	16	16	16	16
Number of product terms	160	160	160	160	160	160	160	160	160
Number of terminals	28	28	28	24	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C
organize	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	DIP	DIP	DIP	SOP	SOP	SOP
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ	LDCC28,.5SQ	DIP24,.3	DIP24,.3	DIP24,.3	SOP24,.4	SOP24,.4	SOP24,.4
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	220	220	220	NOT SPECIFIED	NOT SPECIFIED	220	220	220	220
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
propagation delay	17 ns	22 ns	22 ns	17 ns	22 ns	22 ns	17 ns	22 ns	22 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	4.572 mm	4.572 mm	4.318 mm	4.318 mm	4.318 mm	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage	5.25 V	5.25 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.75 V	4.75 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.5062 mm	11.5062 mm	11.5062 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.5 mm	7.5 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
