BX6515PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX6515PM

BX6515PM: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size44KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX6515PM Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX6515PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	11 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6515PM

Features

Medium Gain: +12.5 dB Typical

Output Power: +16.5 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6515PM, 4 Pin TO-8 (T4)

TN6515PM, 4 Pin Surface Mount (SM3)

FP6515PM, 4 Pin Flatpack (FP4)

BX6515PM,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +43 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +31 dBm (Typ.)

Maximum Ratings

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

11.0 Min.

+15.0 Min.

-15 Max.

2.0:1 Max.

5.5 Max.

+15

55 Max.

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5 - 500 MHz

12.5

+16.5

-16

<1.5:1

4.5

+15

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-160

-170

-172

-174

Guarantee

-156

-166

-168

-170

Note: Care should always be taken to effectively ground the case of each unit.

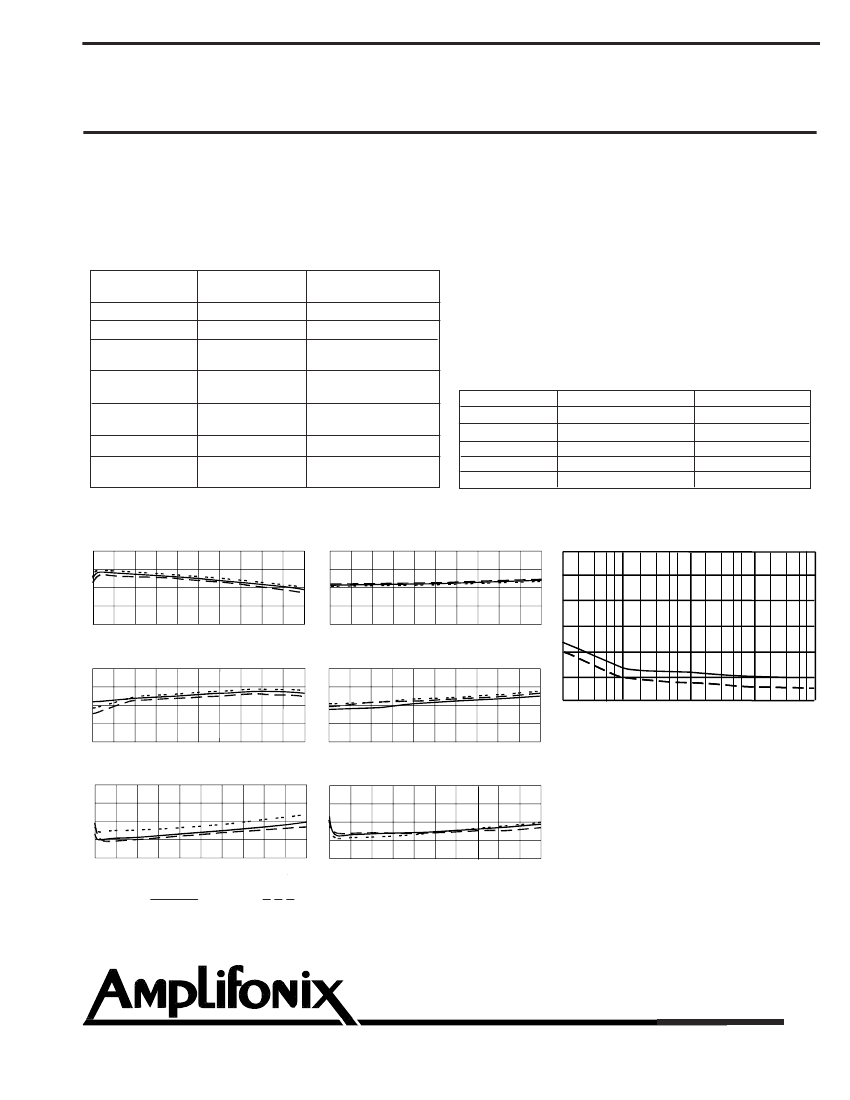

Typical Performance Data

Start 5 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Reverse Isolation (dB)

-120

-130

-140

-150

-160

-170

-180

100

Phase Noise (dBc/Hz)

Stop 500 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

10K

100K

_________Guarantee __ __ __ __Typical

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Residual Phase Noise Test Conditions

Carrier Frequency: 200 MHz

Power Output: +16.5 dBm

Temperature: 25 ºC

Agilent ES5500 System

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

3/31/04

BX6515PM Related Products

	BX6515PM	TM6515PM	TN6515PM
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN
Reach Compliance Code	unknown	unknow	unknow
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT
Gain	11 dB	11 dB	11 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
Maker	-	Spectrum Microwave	Spectrum Microwave
