B125C5000/3300-400 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> B125C5000/3300-400

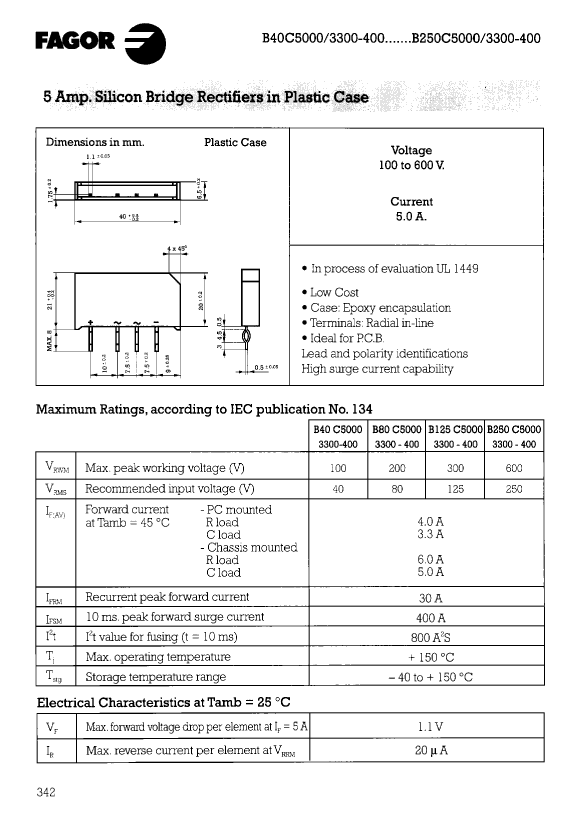

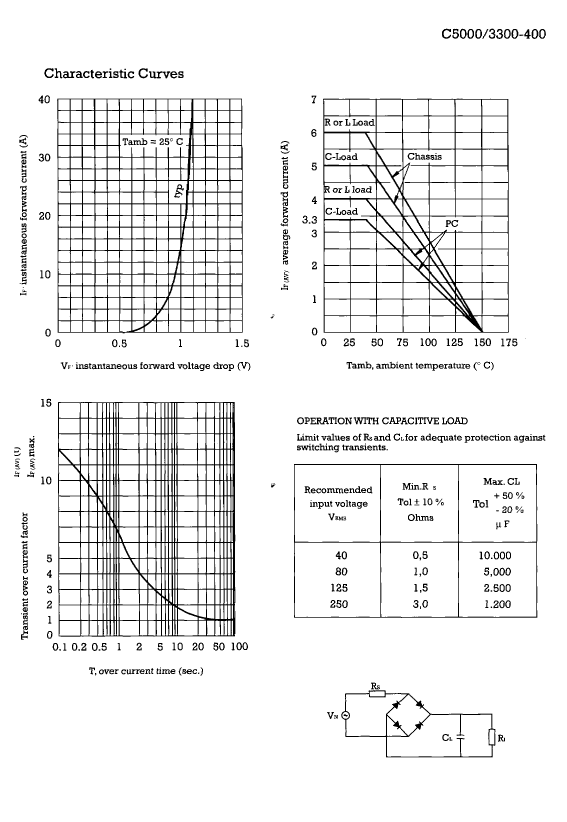

B125C5000/3300-400: DescriptionBridge Rectifier Diode, 1 Phase, 4A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

B125C5000/3300-400 Overview

Bridge Rectifier Diode, 1 Phase, 4A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4

B125C5000/3300-400 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PSIP-T4
Contacts	4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSIP-T4
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

B125C5000/3300-400 Related Products

	B125C5000/3300-400	B250C5000/3300-400	B80C5000/3300-400	B40C5000/3300-400
Description	Bridge Rectifier Diode, 1 Phase, 4A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 600V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 200V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, 100V V(RRM), Silicon, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	PLASTIC PACKAGE-4
Contacts	4	4	4	4
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	4 A	4 A	4 A	4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	600 V	200 V	100 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
