EKIN2-90DTR: DescriptionDemodulator, I/Q, 0MHz Min, 90MHz Max, 9dB Conversion Loss-Max, SM-28, 8 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

EKIN2-90DTR Overview

Demodulator, I/Q, 0MHz Min, 90MHz Max, 9dB Conversion Loss-Max, SM-28, 8 PIN

EKIN2-90DTR Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Base Number Matches	1

Preview

Download Datasheet

View All

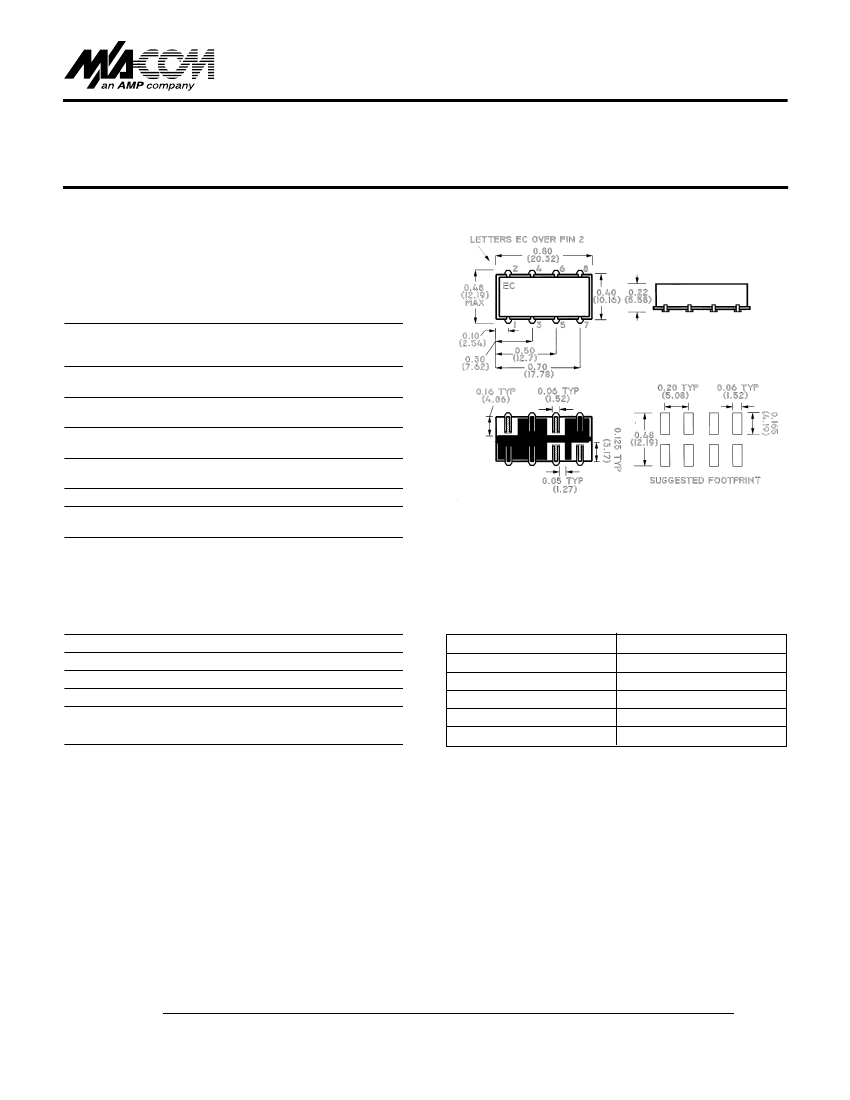

E-Series I/Q Demodulator

90 MHz

Features

q

EKIN2-90D

V3.00

SM-28

Excellent Phase and Amplitude Balance

LO Power: +10 dBm Typical

Surface Mount

Speciﬁcations

@ 25°C

Frequency Range

LO / RF

I/Q

Amplitude Unbalance

Phase Unbalance

Isolation

LO to RF

Conversion Loss

(LO) Carrier Power

Input IP3

1

90 MHz

DC - 0.5 MHz

Typical

0.2 dB

Typical

1°

Typical

55 dB

Typical

6 dB

Typical

17 dBm

Maximum

0.5 dB

Maximum

2°

Minimum

40 dB

Maximum

9 dB

+10 dBm

Minimum

15 dBm

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .x = ±0.04 (1.00)

.xx = ±0.02 (0.50)

.xxx = ±0.010 (0.250)

1. Input IP

3

Test Conditions

RF1: 90.4 MHz @ -10 dBm

RF2: 90.5 MHz @ -10 dBm

LO: 90 MHz @ +10 dBm

Operating Characteristics

Operating Temp.

Storage Temp.

Impedance

RF Power (1dB Compression)

-10°C to +70°C

-40°C to +85°C

50 Ohms Nominal

3 dBm Maximum

Pin Conﬁguration

Function

LO

RF

I

Q

Case Ground

Packaging

Tube

Forward Tape & Reel

Pin. No.

1

8

5

6

2,3,4,7

Ordering Information

Part No.

EKIN2-90D

EKIN2-90DTR

S 1091 A

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

s

1

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

s

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020
