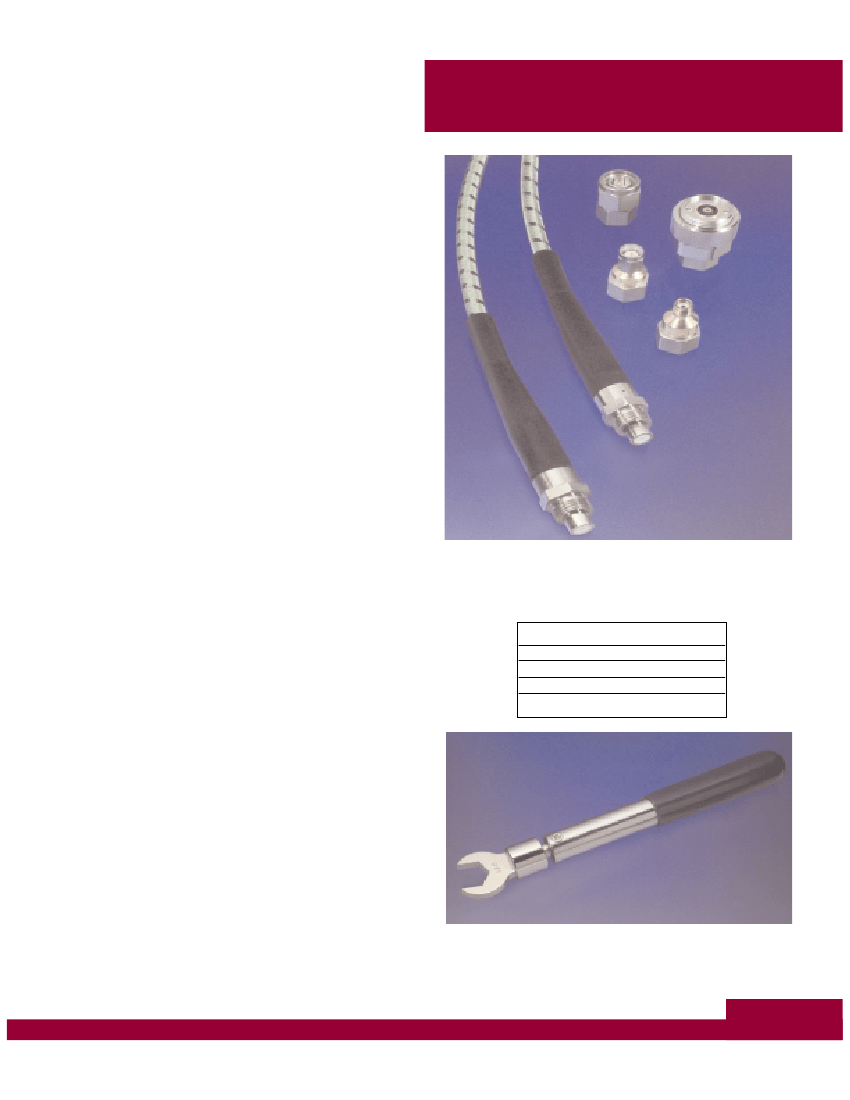

VersaLine18
(formerly M/A-COM’s1999 Series)
Description:
VersaLine18
cables allow the user to interchange coaxial
connectors with alternate interface styles or to replace
worn or damaged connector’s without compromising
performance.
VersaLine18
cables make use of Tyco Electronics
field proven cable construction and connector attachment
methods to maximize cable service life, increase
productivity and reduce down-time for trouble-free
operation in a variety of harsh conditions.
VersaLine18
cables remain unequaled for versatility,
reliability, ruggedness and long service life when year
in and year out RF and microwave testing is required.
Features:
•
•
•
•
•
Operation to 18 GHz
Field interchangeable connectors (SMA, Type N,
ETNC, 7mm, 3.5mm))
Electrically stable with flexure
Triple shielded, low loss cable
Abrasion resistant nomex jacket
Photo 111627
Applications:
•
•
•
•
•
High volume test lab and manufacturing line test
operations
Field and job site installation, verification and test
activities
Periodic and quality program tests
Upgrade and replacement RF test equipment test
port cables
Test applications requiring cables with ruggedness,
long life and consistent performance
Torque Wrench:
Used so that replaceable connectors meet 14 lb. torque
requirement for ultimate RF performance.
Tools for Use with:
Repl. Conn.
SMA, 3.5mm
ETNC
Type N, 7mm
Part Number
1064236-1
1055419-1
1055868-1
1061789-1
Specifications:
Operating Frequency, Maximum
VSWR, Maximum
Phase Stability with Flexure
Minimum Bend Radius
Shielding Effectiveness
Propagation Velocity
Operating Temperature Range
Flex Life
18 GHz
1.25:1
±0.5˚/GHz
1.25 inch
(31.8 mm)
>90dB ft
76% C
-65 to 125˚C
100,000 min.
Photo 111626
3
VersaLine18
Part Numbers:
(Cable Assemblies sold without
replaceable connector kits)
18 GHz
2 Feet
1049982-1
Length
3 Feet
4 Feet
1049982-2 1049982-3
5 Feet
1049982-4
6 Feet
1049982-5
Part Number
SMA Plug
SMA Recp.
ETNC Plug
Type N Plug
7mm
3.5mm Plug
3.5mm Recp.
Kit #1
1349589-1
Qty. 2
Kit #2
1249589-2
Qty. 2
Replaceable Connector Kits
Kit #3
Kit #4
Kit #5
1349589-3 1349589-4
1349589-5
Qty. 1
Qty. 1
Qty. 2
Qty. 2
Kit #6
1349589-6
Kit #7
1349589-7
Kit #8
1349589-8
Qty. 2
Qty. 2
Qty. 2
Connector Dimensions
(Replaceable connectors shown on assembly for reference)
SMA or 3.5mm Male
4.4 [112.0]
.58 [14.7]MAX
.50 [12.7] HEX
Type N Male
4.50 [114.0]
.87 [22.1]MAX
.750 [19.1] HEX
ETNC Male
4.4 [112.0]
7mm
4.9 [124.5]
.65 [16.5]MAX
.863 [21.92]MAX
.562 [14.3] HEX
Performance Data:
Maximum Cable Assembly Insertion Loss
3
6 FT
2.5
5 FT
Insertion Loss dB
2
4 FT
3 FT
2 FT
1.5
1
0.5
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Frequency (GHz)
4
AMP, M/A-COM and TYCO are trademarks.
Other trademarks used are the property of their respectiveowners.
1308601-2.5M-USE-FP-11/00
Technical Support Center: 1-800-522-6752
On the Internet: www.amp.com
