53K1C7-C05N1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53K1C7-C05N1

53K1C7-C05N1: DescriptionRF N Connector, Female, Cable Mount, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size96KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

53K1C7-C05N1 Overview

RF N Connector, Female, Cable Mount, Jack, ROHS COMPLIANT

53K1C7-C05N1 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	SILVER (236)
Contact completed and terminated	SILVER (236)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.05 dB
insulator material	PTFE TPX
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53K1C7-C05N1
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

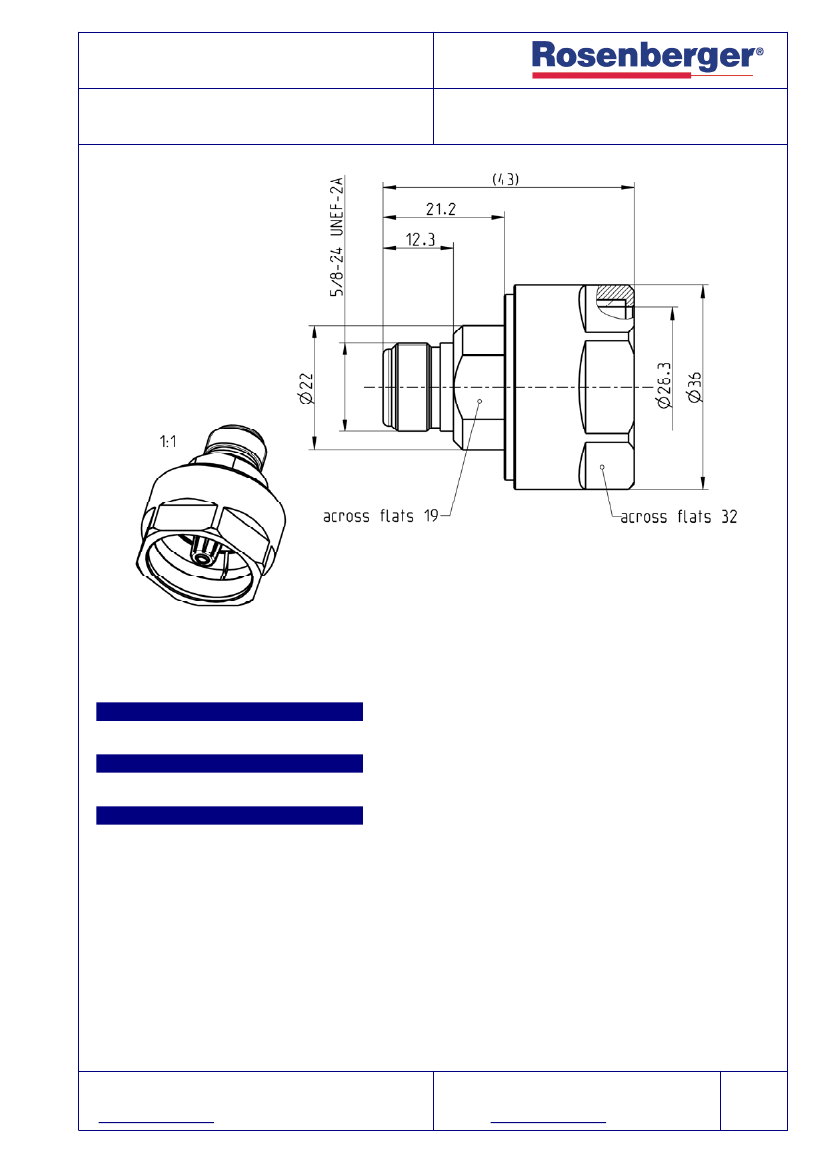

TECHNICAL DATA SHEET - Draft

N 50

STRAIGHT JACK

(7/8”R)

53K1C7-C05N1

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-16, MIL-PRF-39012, CECC 22210

Documents

Assembly instruction

60 I 36

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Material

Spring bronze

Brass

PTFE, TPX

Silicone

Plating

Silver, 3-6 µm

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
