CRF-102-R250

Description
Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Locking, Plug
CategoryThe connector    The connector
File Size163KB，1 Pages
ManufacturerE-tec Interconnect Ltd.
Download Datasheet Parametric View All

CRF-102-R250 Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Locking, Plug

CRF-102-R250 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width0.15 inch
subject depth0.28 inch
body length0.276 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberCR
Plug contact pitch0.098 inch
Installation option 1LOCKING
Number of rows loaded1
Maximum operating temperature90 °C
Minimum operating temperature-25 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Total number of contacts2
Base Number Matches1

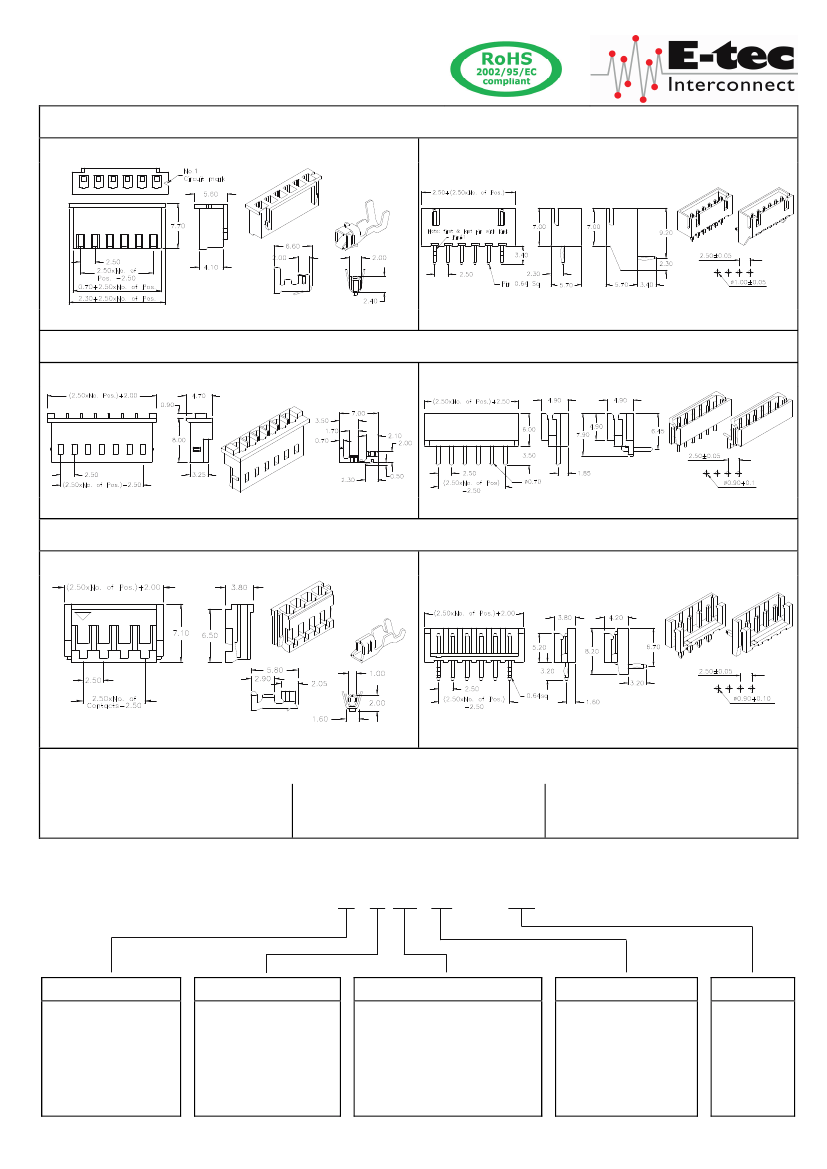

Preview

Download Datasheet
2.50mm
Crimp Contact Connectors
Fully shrouded
S - Type
female plug
(AWG 22 to 28)
S - Type
-THT- male
Order Code housing:
CRF-1xx-S250
contact:
CRF-999-S250-99
Order Code straight:
CRS-1xx-S250-99
right angle:
CRR-1xx-S250-99
Fully shrouded with inside ribs
I - Type
female plug
(AWG 24 to 28)
I - Type
-THT- male
Order Code housing:
CRF-1xx-I250
contact:
CRF-999-I250-99
Order Code straight:
CRS-1xx-I250-99
right angle:
CRR-1xx-I250-99
Single side shrouded with inside ribs
R - Type
female plug
(AWG 24 to 28)
R - Type
-THT- male
Order Code housing:
CRF-1xx-R250
contact:
CRF-999-R250-99
Order Code straight:
CRS-1xx-R250-99
right angle:
CRR-1xx-R250-99
SPECIFICATIONS
Current rating
Insulator resistance
Voltage rating
3A
1000 MΩ min.
250 V AC max.
Contact resistance
Withstanding voltage
Operating temp.
20 mΩ max.
1000 V AC
-25°C to +90°C
Contact material
Insulator material
PCB Thickness
Copper alloy
Nylon UL 94 V-0
1.60 mm (.063“)
How to order
CR X - x xx - X 250 -
99
Type
F
R
S
= Female
= R/A male
= Straight male
Rows
1
= single row
9
= loose contacts
Nbr of contacts
02 - 20
= S - type
02 - 15
= I & R - types
99
= loose contacts
MOQ: 10K / reel
Execution
S
I
R
=
=
=
S - type
I - type
R – type
Plating
99
= tin
(leadfree)
see dwgs above
Other platings
on request
127
