RN2505(TE85R)

Description
TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-3L1A, SMV, 5 PIN, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size467KB,7 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

RN2505(TE85R) Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-3L1A, SMV, 5 PIN, BIP General Purpose Small Signal

RN2505(TE85R) Parametric

Parameter NameAttribute value
package instructionSMALL OUTLINE, R-PDSO-G5
Contacts5
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBUILT-IN BIAS RESISTOR RATIO IS 0.0468
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationCOMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)80
JESD-30 codeR-PDSO-G5
Number of components2
Number of terminals5
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
Base Number Matches1

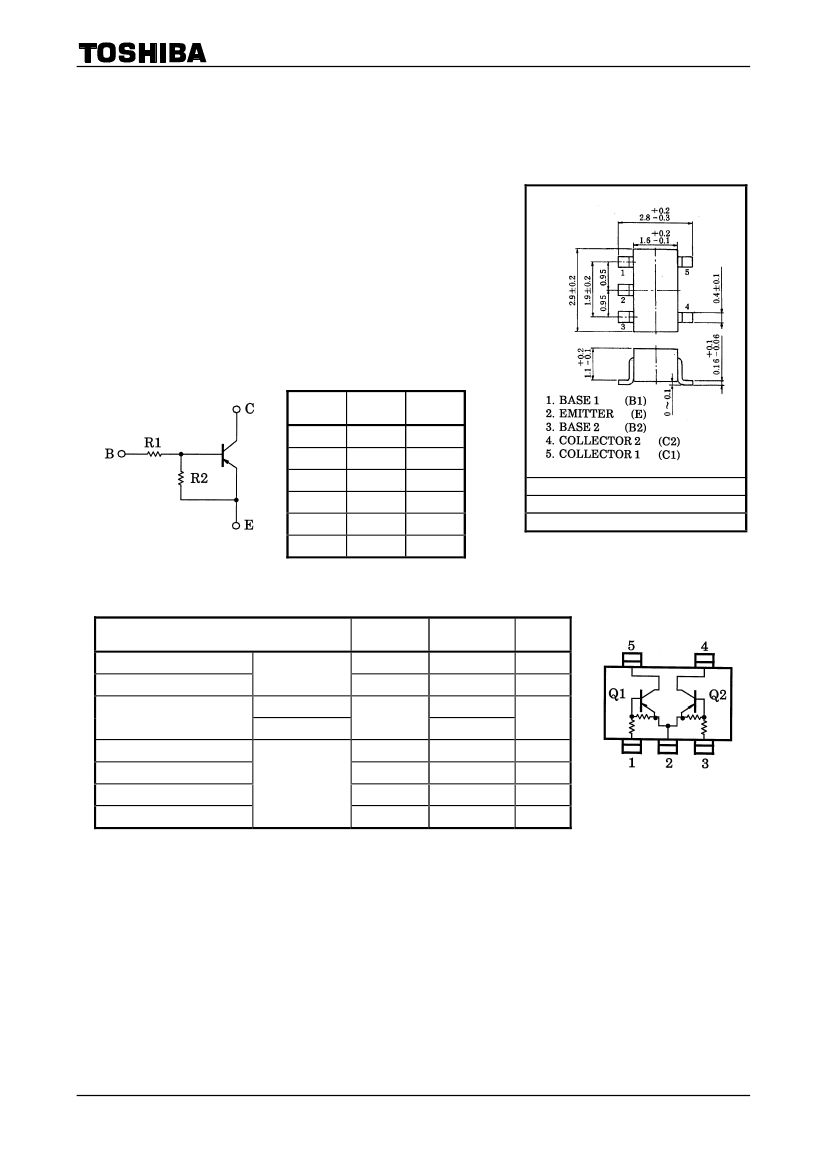

RN2501~RN2506
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor)
RN2501,RN2502,RN2503
RN2504,RN2505,RN2506
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Including two devices in SMV (super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Complementary to RN1501 to RN1506
Unit: mm
Equivalent Circuit and Bias Resistor Values
Type No.
RN2501
RN2502
RN2503
RN2504
RN2505
RN2506
R1 (kΩ)
4.7
10
22
47
2.2
4.7
R2 (kΩ)
4.7
10
22
47
47
47
SMV
JEDEC
JEITA
TOSHIBA
2-3L1A
Weight: 14 mg (typ.)
Absolute Maximum Ratings
(Ta = 25°C) (Q1, Q2 Common)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
RN2501 to 2506
RN2501 to 2506
RN2501 to 2504
RN2505, 2506
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
*
Tj
Tstg
Rating
−50
−50
−10
−5
−100
300
150
−55
to150
Unit
V
V
V
mA
mW
°C
°C
Equivalent Circuit
(Top View)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
* Total rating
1
2010-05-20
