SKKT106B/12E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKT106B/12E

SKKT106B/12E: Description180A, 1200V, SCR, TO-240AA, CASE A48, SEMIPACK-7; CategoryAnalog mixed-signal IC Trigger device; File Size952KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT106B/12E Overview

180A, 1200V, SCR, TO-240AA, CASE A48, SEMIPACK-7

SKKT106B/12E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-240AA
package instruction	CASE A48, SEMIPACK-7
Contacts	7
Manufacturer packaging code	CASE A48
Reach Compliance Code	compliant
Shell connection	ISOLATED
Nominal circuit commutation break time	150 µs
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	250 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-XUFM-X7
JESD-609 code	e3/e4
Number of components	2
Number of terminals	7
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	180 A
Maximum repetitive peak off-state leakage current	20000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

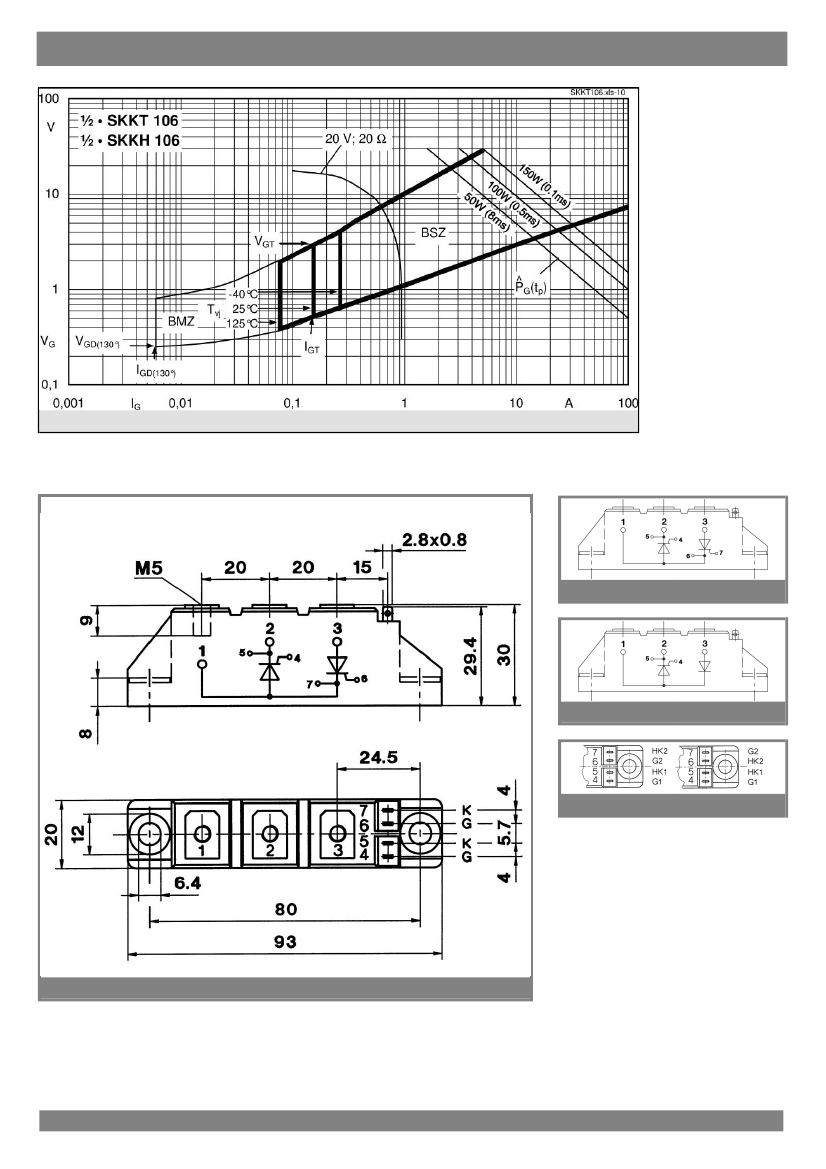

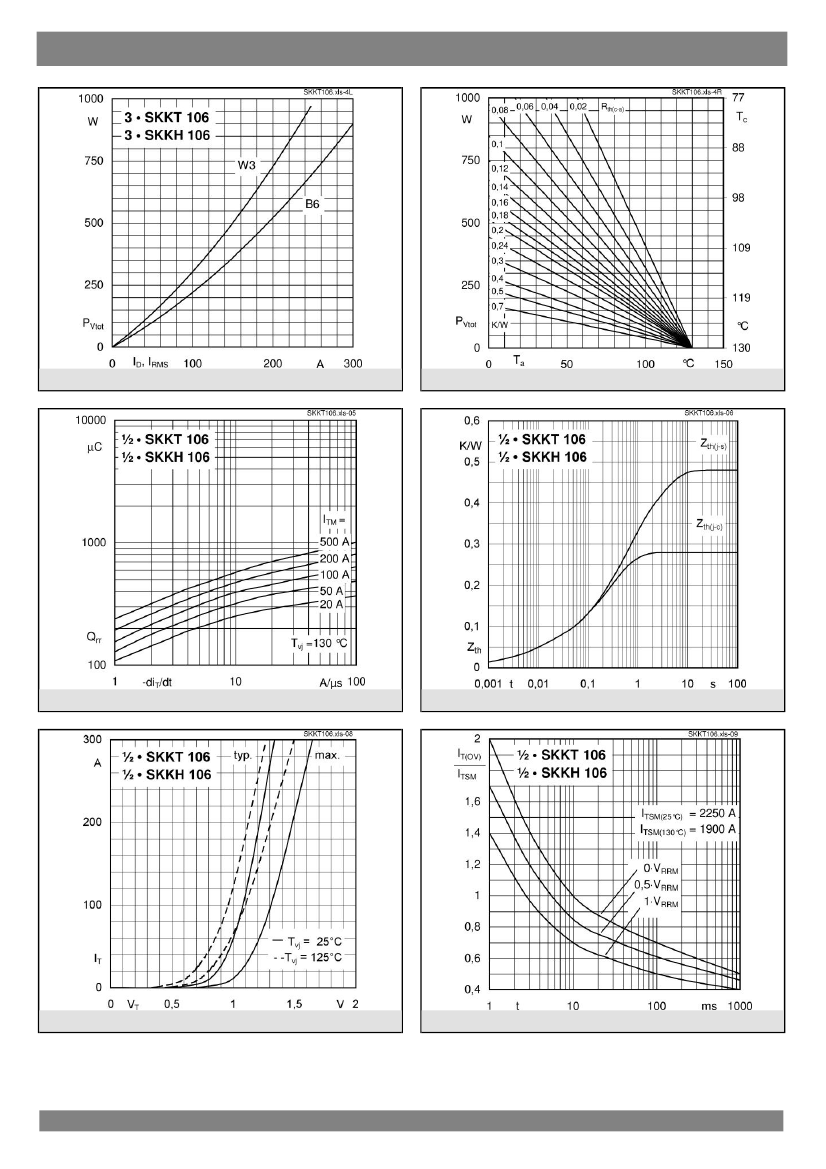

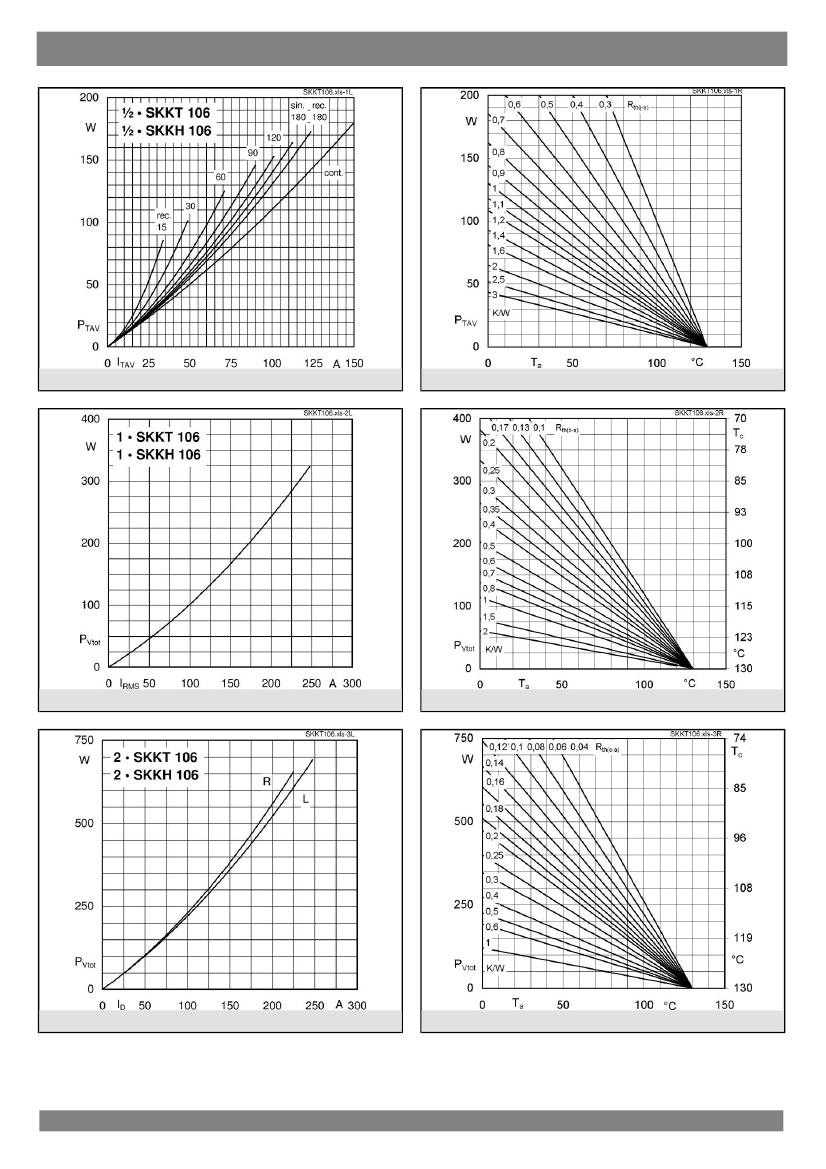

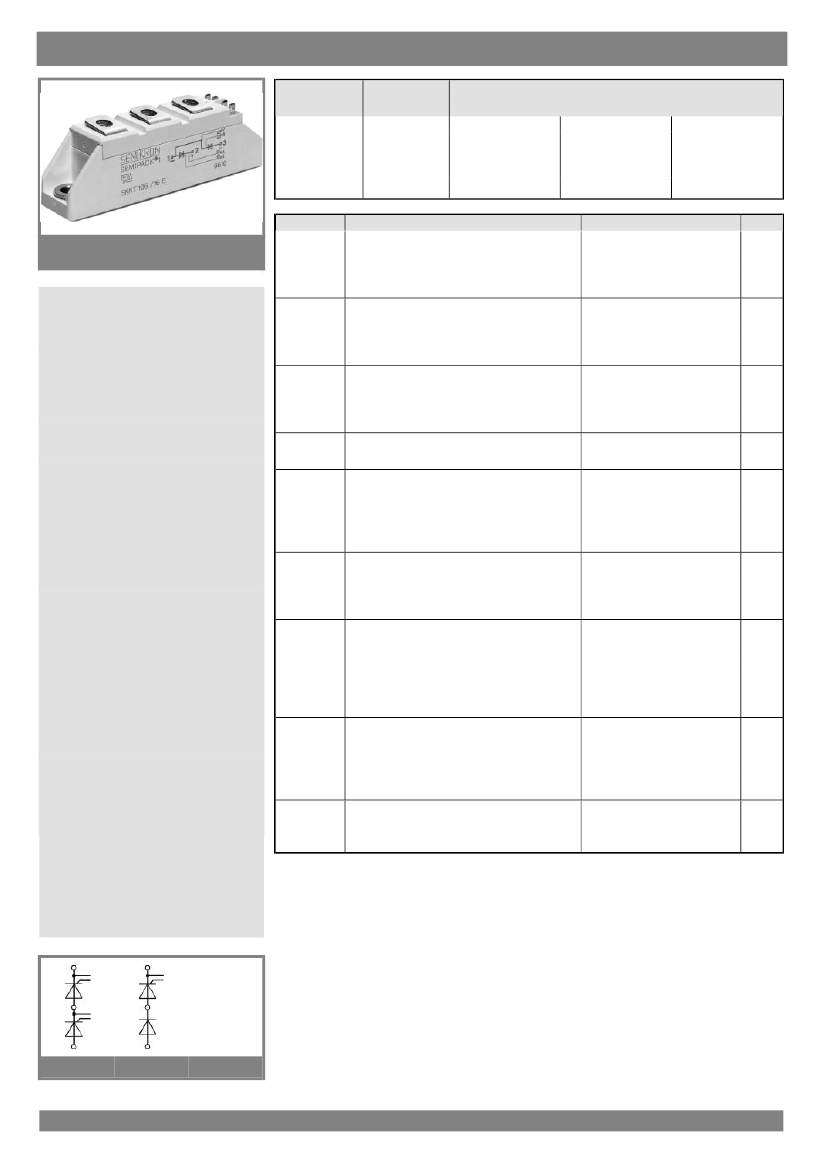

SKKT 106, SKKT 106B, SKKH 106

THYRISTOR

Symbol

Conditions

Values

Units

SEMIPACK

Thyristor / Diode Modules

SKKT 106

SKKT 106B

SKKH 106

Features

Typical Applications*

SKKT

SKKH

09-03-2004 NOS
