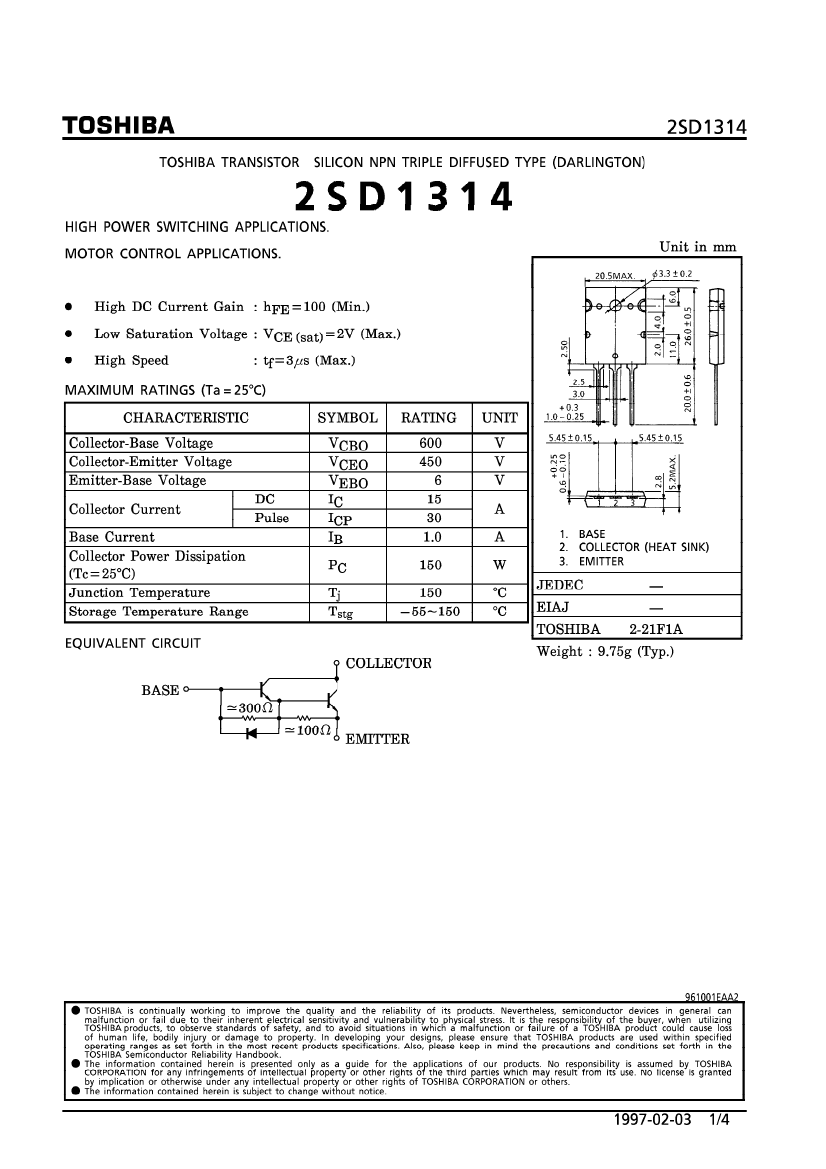

2SD1314 datasheet, PDF - EEWORLD Datasheet

2SD1314: DescriptionNPN TRIPLE DIFFUSED TYPE (HIGH POWER SWITCHING, MOTOR CONTROL APPLICATIONS); CategoryDiscrete semiconductor The transistor; File Size187KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

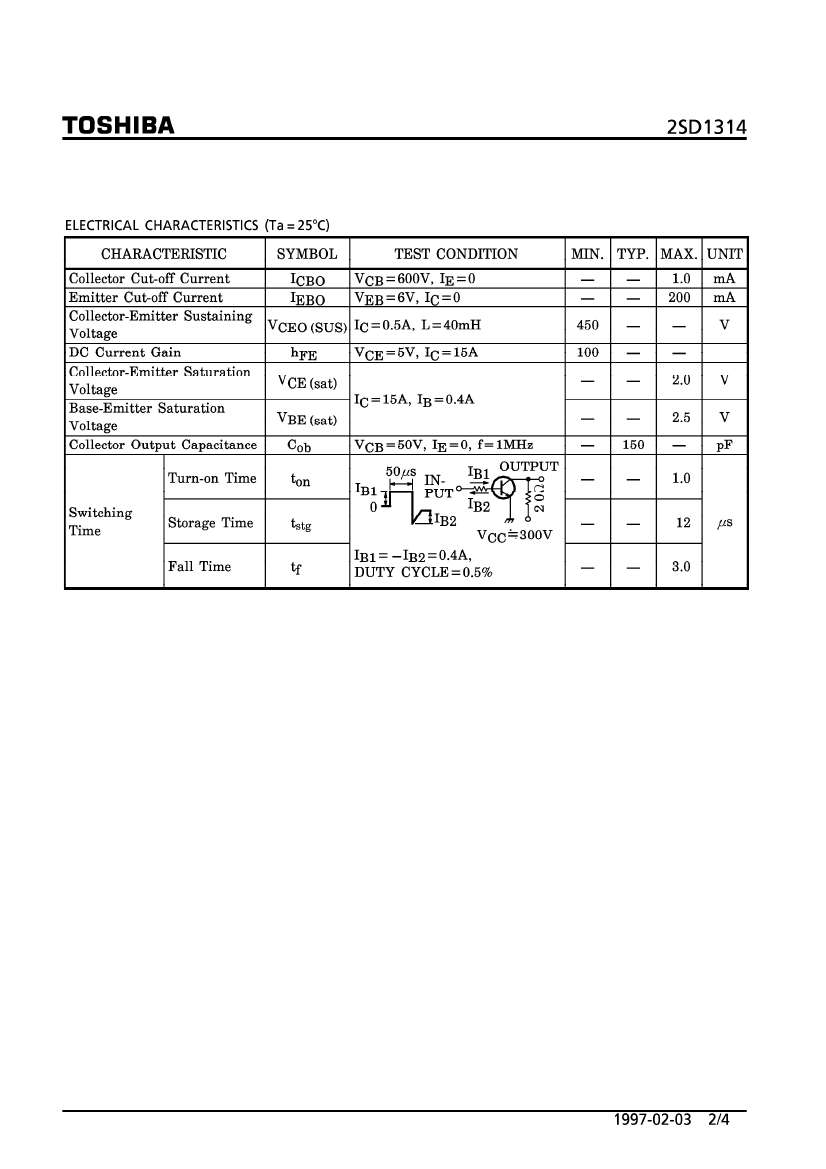

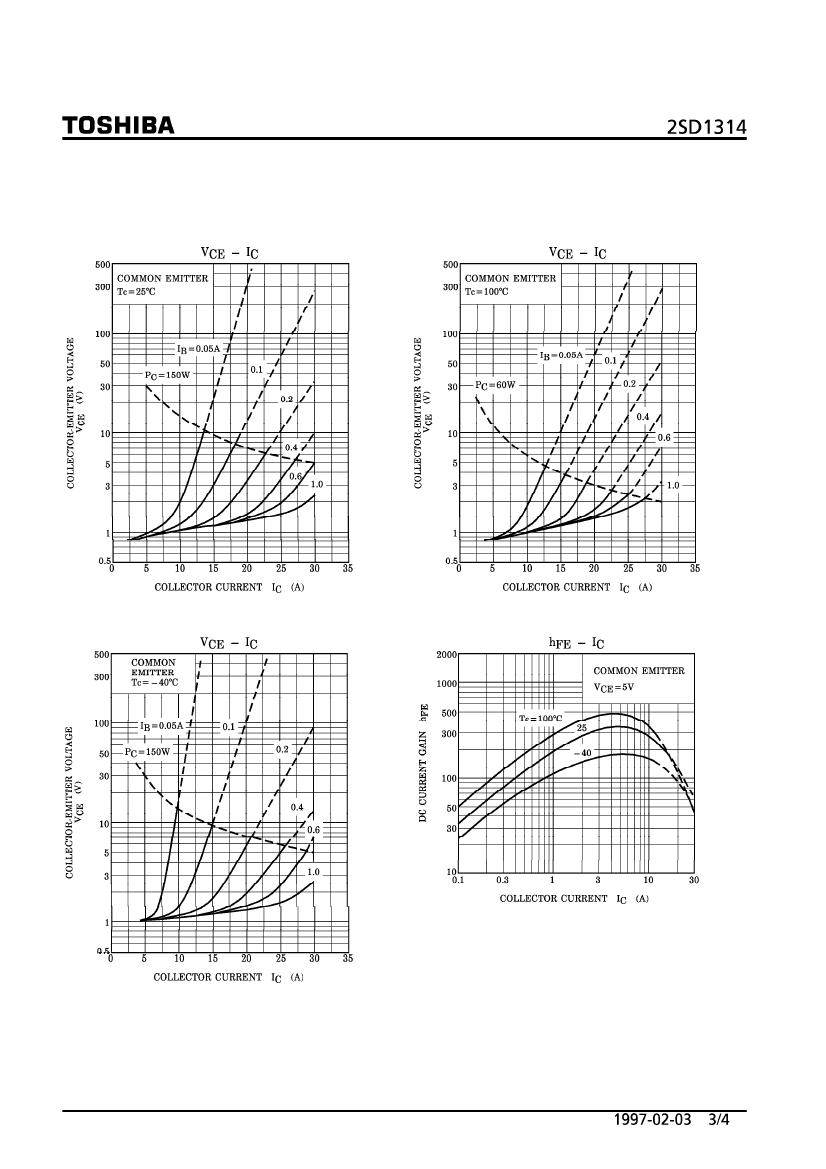

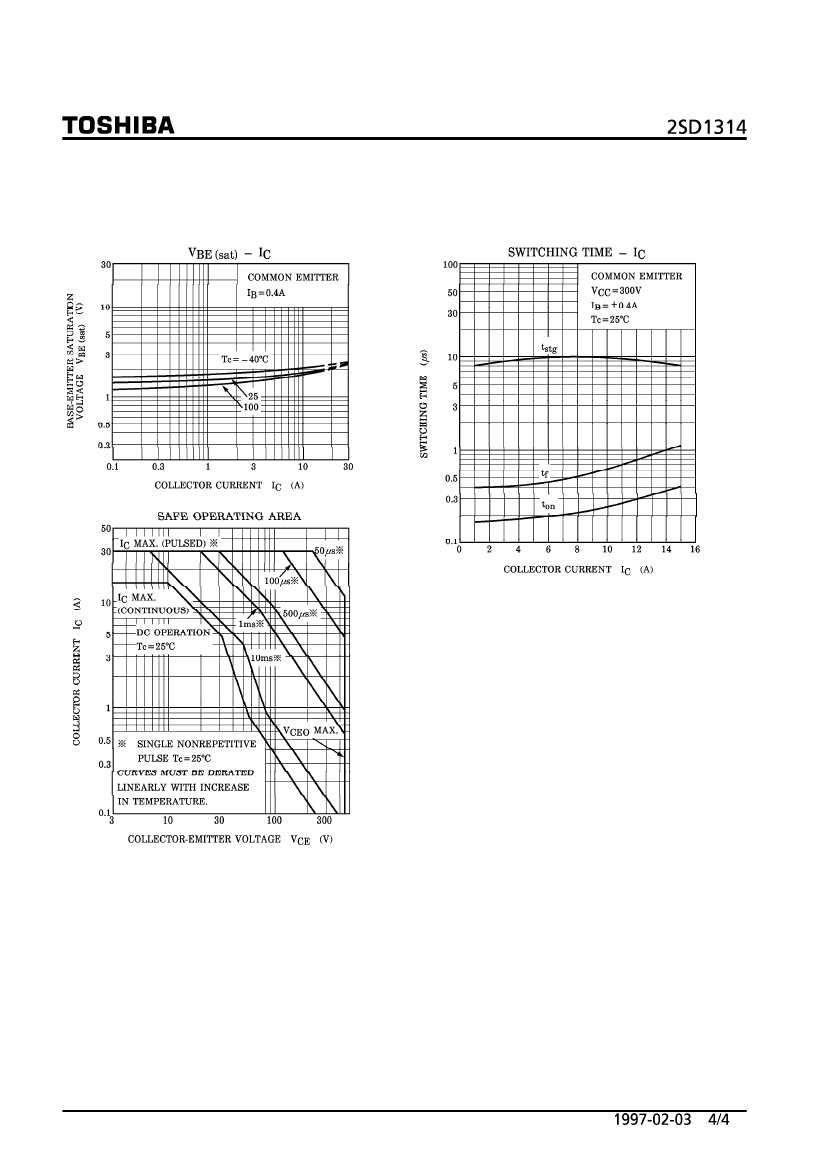

2SD1314 Overview

NPN TRIPLE DIFFUSED TYPE (HIGH POWER SWITCHING, MOTOR CONTROL APPLICATIONS)

Parameter Name	Attribute value
Is it lead-free?	Lead free
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Shell connection	COLLECTOR
Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	450 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	150 W
Maximum power dissipation(Abs)	150 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	12300 ns
Maximum opening time (tons)	1000 ns
VCEsat-Max	2 V
Base Number Matches	1
