54FCT191AD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54FCT191AD

Preview

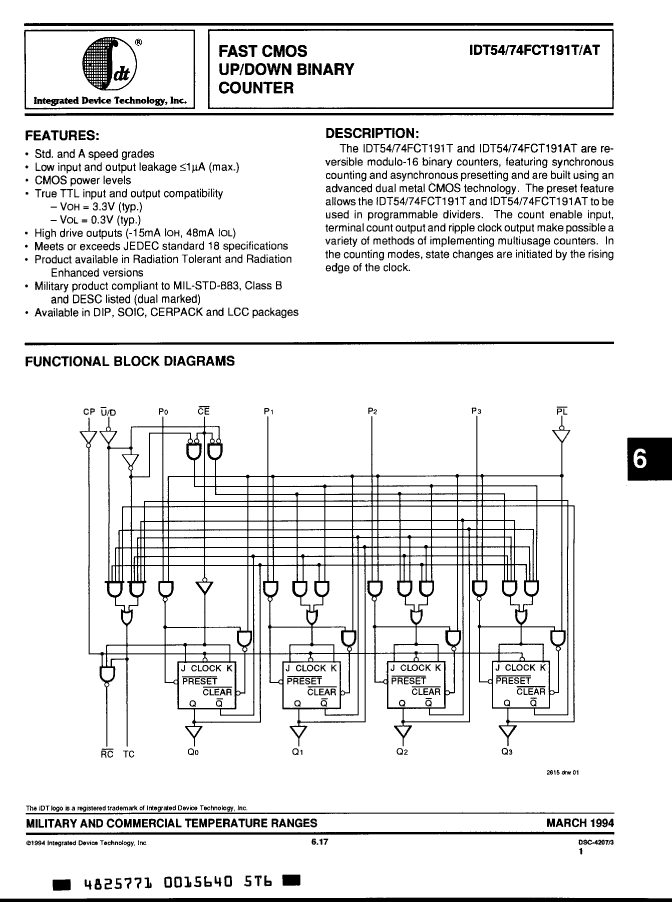

54FCT191AD: DescriptionBinary Counter, Synchronous, Bidirectional, CMOS, CDIP16; Categorylogic logic; File Size352KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT191AD Overview

Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16

54FCT191AD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	83300000 Hz
MaximumI(ol)	0.032 A
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	10.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
Base Number Matches	1

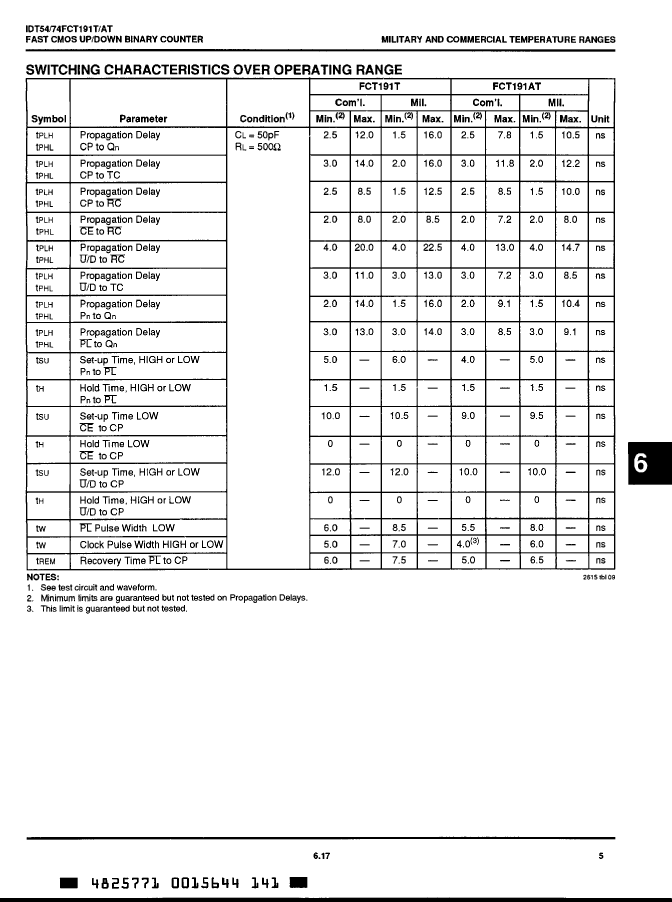

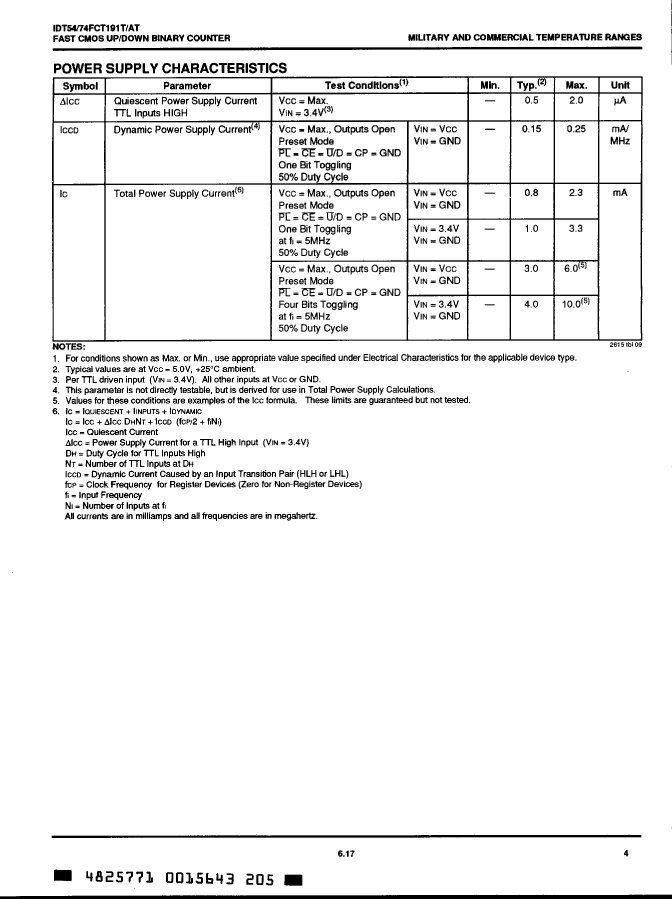

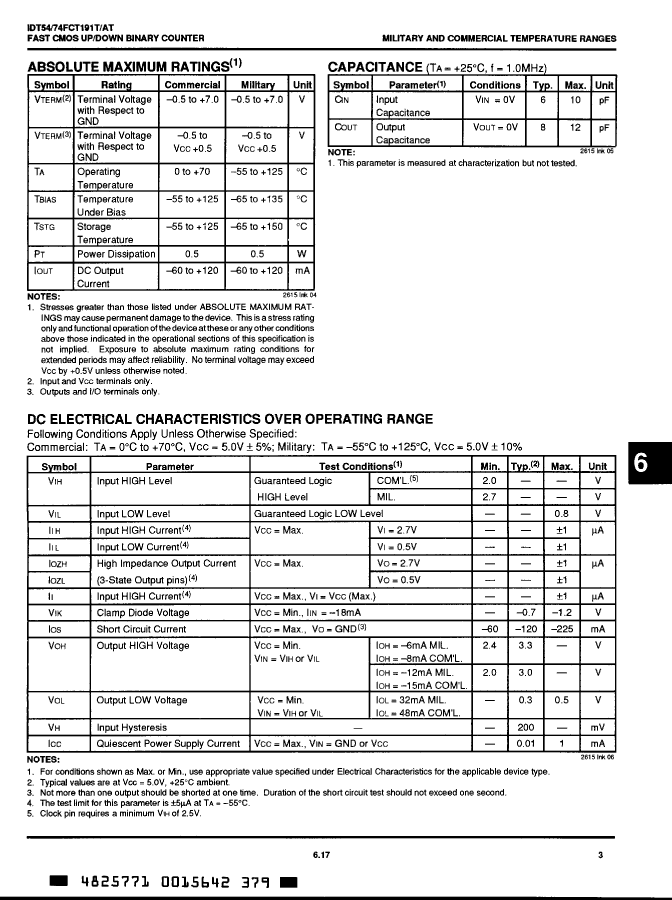

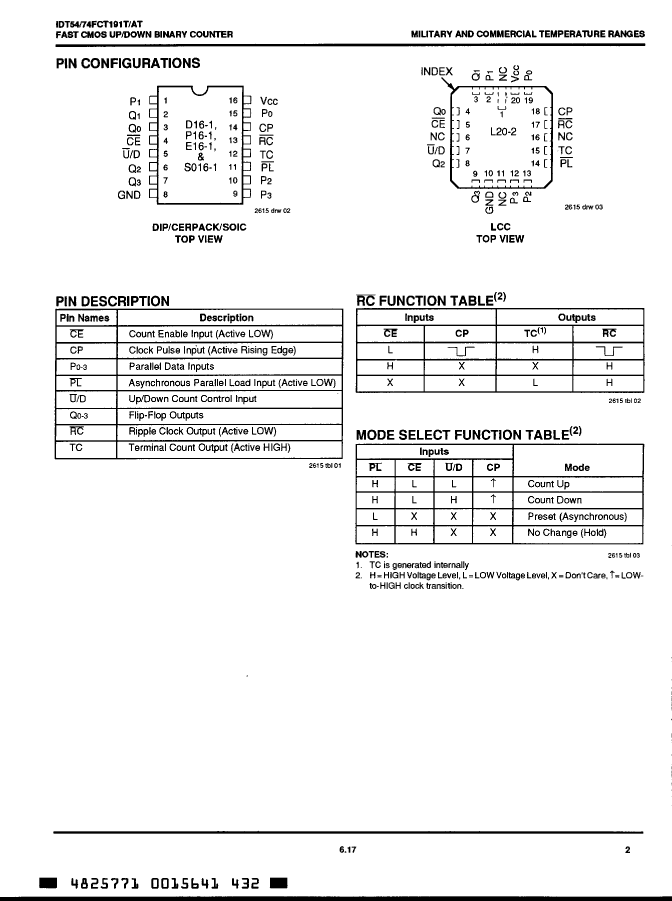

Preview

Download Datasheet

View All

54FCT191AD Related Products

	54FCT191AD	IDT74FCT191APQ	IDT74FCT191PQ
Description	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16	Binary Counter, Synchronous, Bidirectional, CMOS, PDIP16	Binary Counter, Synchronous, Bidirectional, CMOS, PDIP16
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	not_compliant	not_compliant	not_compliant
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	83300000 Hz	125000000 Hz	100000000 Hz
MaximumI(ol)	0.032 A	0.048 A	0.048 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260
power supply	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	10.5 ns	7.8 ns	12 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	6
Base Number Matches	1	1	-
Maker	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Humidity sensitivity level	-	1	1
