BUZ11A datasheet, PDF - EEWORLD Datasheet

BUZ11A: DescriptionTRANSISTOR,MOSFET,N-CHANNEL,50V V(BR)DSS,25A I(D),TO-220AB; CategoryDiscrete semiconductor The transistor; File Size250KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

BUZ11A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BUZ11A	-	-	View	Buy Now

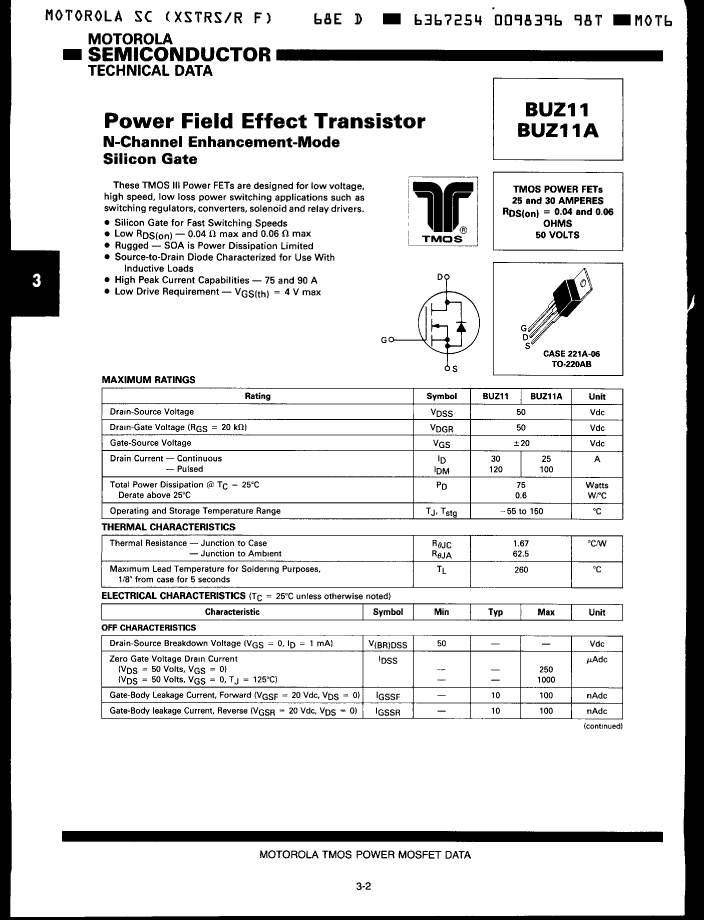

TRANSISTOR,MOSFET,N-CHANNEL,50V V(BR)DSS,25A I(D),TO-220AB

Parameter Name	Attribute value
Is it Rohs certified?	incompatible

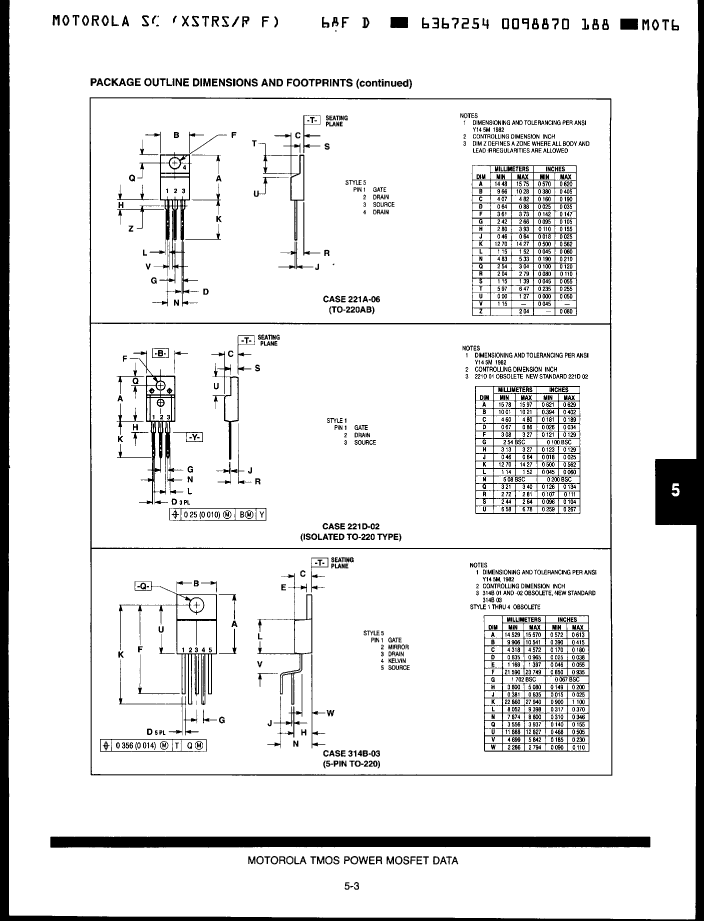

package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Other features	LEADFORM OPTIONS ARE AVAILABLE
Shell connection	DRAIN
Configuration	Single
Minimum drain-source breakdown voltage	50 V

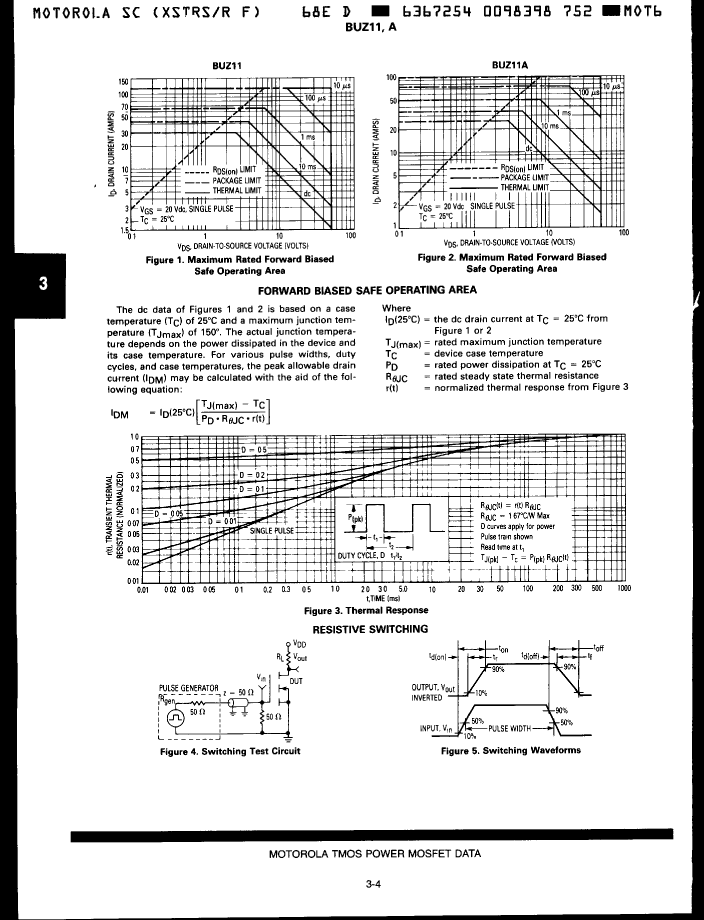

Maximum drain current (Abs) (ID)	25 A
Maximum drain current (ID)	25 A

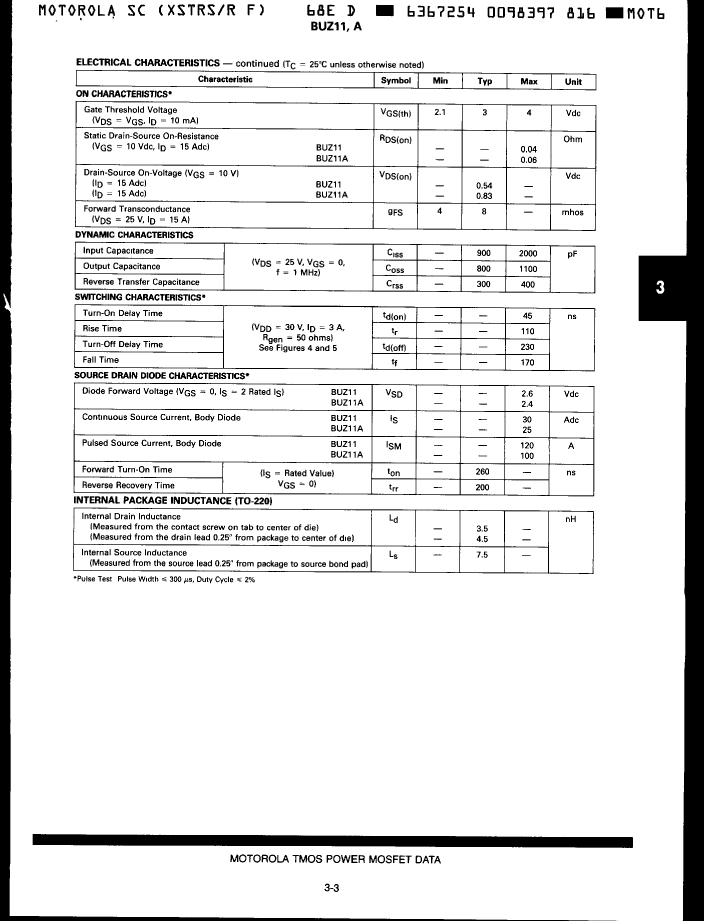

Maximum drain-source on-resistance	0.06 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	400 pF
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	75 W
Maximum power dissipation(Abs)	75 W
Maximum pulsed drain current (IDM)	100 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	400 ns
Maximum opening time (tons)	155 ns
Base Number Matches	1
