NLP-850

Description
Low Pass Filter, 850MHz, CASE FF57
CategoryAnalog mixed-signal IC    filter
File Size75KB，1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric View All

NLP-850 Overview

Low Pass Filter, 850MHz, CASE FF57

NLP-850 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
Maximum attenuation frequency2000 MHz
minimum attenuation frequency1100 MHz
Attenuation at maximum frequency40 dB
Attenuation@frequency min20 dB
average input power0.5 W
Center frequency or cutoff frequency (fo/fc)850 MHz
diameter20.83 mm
filter typeLOW PASS FILTER
high73.66 mm
input connectorN FEMALE
input resistance50 OHM
Maximum insertion loss3 dB
JESD-609 codee0
Installation typePANEL MOUNT
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Output connectorN MALE
Output impedance50 OHM Ω
physical sizeD20.83XH73.66 (mm)/D0.82XH2.9 (inch)
Terminal surfaceTin/Lead (Sn/Pb)
voltage standing wave ratio1.7
Base Number Matches1

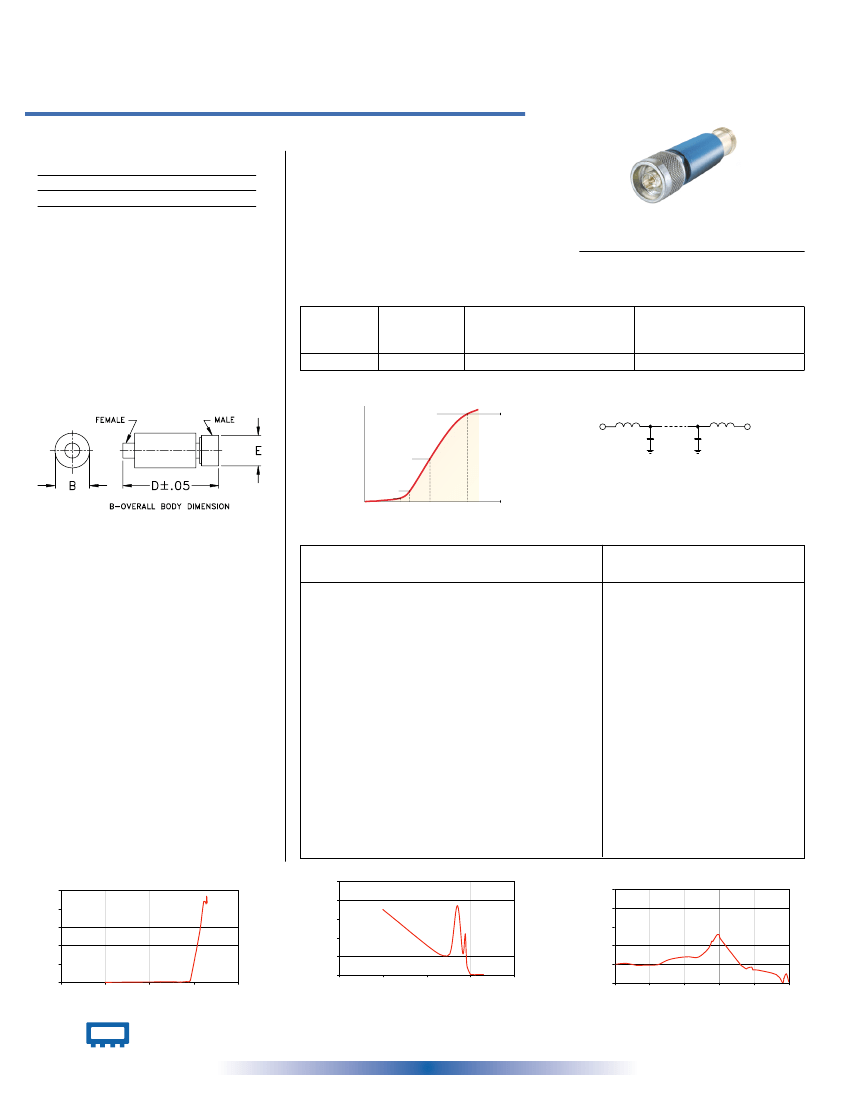

Preview

Download Datasheet
Coaxial
Low Pass Filter
50Ω
DC to 780 MHz
Features
-55°C to 100°C
-55°C to 100°C
0.5W max.
NLP-850
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power Input
• rugged shielded case
• other NLP models available with wide selection of
cut-off frequencies
CASE STYLE: FF57
Connectors Model
Price
Qty.
N-Type
NLP-850
$35.95 ea. (1-9)
Applications
• lab use
• test equipment
• video equipment
PASSBAND
(MHz)
(loss < 1 dB)
DC-780
Low Pass Filter Electrical Specifications
fco (MHz)
Nom.
(loss 3 dB)
850
STOPBAND
(MHz)
(loss > 20 dB)
1100-1400
(loss > 40 dB)
1400-2000
Passband
Typ.
1.7
VSWR
(:1)
Stopband
Typ.
18
Outline Drawing
typical frequency response
40 dB
ATTENUATION, dB
electrical schematic
RF IN
RF OUT
20 dB
3 dB
1 dB
DC
0.9
1
1.35
1.75
3
FREQUENCY / Fco
Typical Performance Data
Outline Dimensions (
inch
)
mm
B
.67
17.02
D
2.90
73.66
E
.82
20.83
wt
grams
90.0
Frequency
(MHz)
10.00
175.00
342.50
507.50
672.50
755.00
780.00
820.00
850.00
1010.00
1030.00
1050.00
1060.00
1070.00
1100.00
1110.00
1150.00
1350.00
1360.00
1380.00
1400.00
1420.00
1667.50
1750.00
1835.00
1900.00
1920.00
1930.00
1950.00
2000.00
at RF level of 0 dBm
Insertion Loss
(dB)
_
x
σ
0.02
0.38
0.44
0.18
0.57
0.43
0.40
1.33
3.00
17.47
19.18
20.83
21.63
22.41
24.70
25.52
28.51
43.25
44.10
45.39
47.43
48.89
69.86
70.13
69.30
67.90
70.63
69.67
74.71
68.74
RETURN LOSS
Return Loss
(dB)
35.0
11.8
11.3
37.1
11.8
20.2
21.9
9.1
4.4
0.3
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
Frequency
(MHz)
10.0
92.5
175.0
257.5
342.5
425.0
507.5
590.0
672.5
755.0
780.0
790.0
820.0
840.0
850.0
1010.0
1020.0
1030.0
1050.0
1060.0
1070.0
1100.0
1110.0
1120.0
1150.0
1300.0
1350.0
1360.0
1380.0
1400.0
Group Delay
(nsec)
1.00
1.05
0.94
0.95
0.97
1.22
1.35
1.40
1.38
1.85
2.23
2.22
2.55
2.57
2.36
0.99
0.92
0.88
0.78
0.75
0.80
0.84
0.70
0.70
0.69
0.45
0.02
0.24
0.48
0.05
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.6
0.9
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.2
1.6
1.9
1.8
2.2
2.1
3.1
6.6
4.7
2.7
3.5
2.6
7.2
4.9
INSERTION LOSS
80
INSERTION LOSS (dB)
64
48
32
16
0
at RF level of 0 dBm
50
RETURN LOSS (dB)
40
30
20
10
0
GROUP DELAY
5.0
GROUP DELAY (nsec)
1
10
100
1000
FREQUENCY(MHz)
10000
at RF level of 0 dBm
4.0
3.0
2.0
1.0
0.0
0
280
560
840
FREQUENCY (MHz)
1120
1400
1
10
100
1000
FREQUENCY(MHz)
10000
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. OR
M95291
NLP-850
060519
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
ISO 9001 & ISO 14001
Certified
