ATT-0294-30-HEX-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0294-30-HEX-02

ATT-0294-30-HEX-02: DescriptionFixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size50KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

ATT-0294-30-HEX-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATT-0294-30-HEX-02	-	-	View	Buy Now

ATT-0294-30-HEX-02 Overview

Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL

ATT-0294-30-HEX-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	SMA-F; SMA-M
Nominal attenuation	30 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

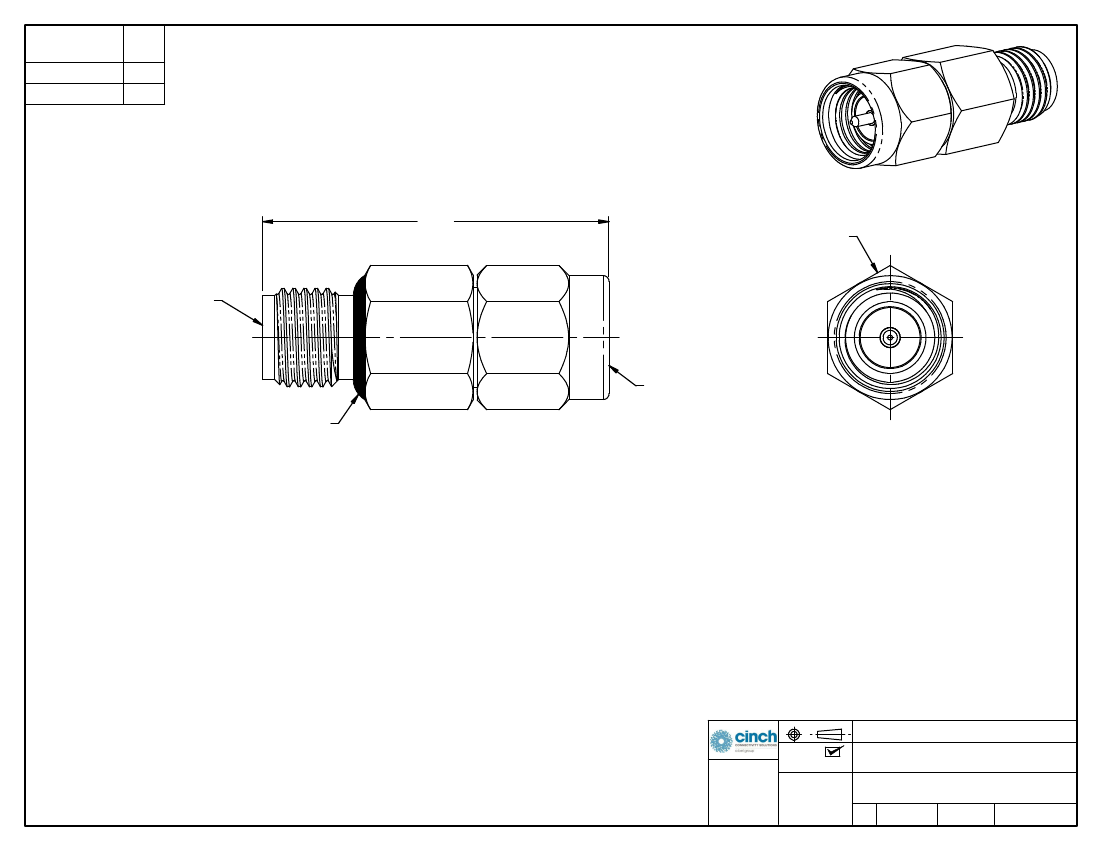

ATTENUATION

VALUE

0 - 12.5 dB

13 - 30 dB

"A"

.86

1.02

"A"

2X 5/16 HEX

SMA FEMALE

PER MIL-STD-348

FIG 310-2

WEST MICR

T-0294-XX-H

dB DC - 2.0

EPOXY SEAL

SMA MALE

PER MIL-STD-348

FIG 310-1

NOTES: UNLESS OTHERWISE SPECIFIED.

1. MATERIAL & FINISH:

1.1 BODY (MALE & FEMALE) & COUPLING NUT: PASSIVATED

STAINLESS STEEL

1.2 DIELECTRIC: PTFE (TEFLON)

1.3 CENTER CONTACT (MALE & FEMALE): GOLD PLATED

BERYLLIUM COPPER

1.4 GASKET: SILICONE RUBBER

2. SPECIFICATIONS:

2.1 FREQUENCY RANGE: DC - 2.0 GHz

2.2 ATTENUATION ACCURACY:

2.2.1 0 dB: +0.3/-0 dB

2.2.2 0.5 - 6 dB: ±0.3 dB

2.2.3 6.5 - 20 dB: ±0.5 dB

2.2.4 20.5 - 30 dB: ±1.0 dB

2.3 VSWR (MAX): 1.07 +.015f (GHz)

2.4 MAXIMUM INPUT POWER:

2.4.1 AVERAGE: 2 WATTS AT +25°C, DERATED LINEARLY

TO 0.5 WATTS AT +125°C.

2.4.2 PEAK: 200 WATTS FOR A DUTY CYCLE OF 5 X 10^-4,

MAX PULSE DURATION OF 5 MICROSECONDS.

2.5 OPERATING TEMP. RANGE: -65°C TO +125°C

3RD ANGLE PROJECTION

MIDWEST MICROWAVE

Title:

RoHS2

This PROPRIETARY Document

is property of Cinch Connectivity

Solutions. It is confidential in

nature, non-transferable, and

issued with the clear

understanding that it is not

traced or copied without

permission and is returnable

upon demand.

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

ATTENUATOR 0 - 30 dB

Model No.

INTERPRET DRAWING IN

ACCORDANCE W ITH ASME

Y14.5-2009.

.XX

.02

.XXX

.005

ANGLES

ATT-0294-XX-HEX-02-01

Size

DO NOT SCALE

Date:

10/14/2014

DRAWING

Sheet 1 of 1

ATT-0294-30-HEX-02 Related Products

	ATT-0294-30-HEX-02	ATT-0294-02-HEX-02	ATT-0294-10-HEX-02	ATT-0294-07-HEX-02	ATT-0294-08-HEX-02	ATT-0294-15-HEX-02	ATT-0294-04-HEX-02
Description	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL	Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M
Nominal attenuation	30 dB	2 dB	10 dB	7 dB	8 dB	15 dB	4 dB
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Maker	-	-	-	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions
