121-000-001L999: DescriptionFiber Optic Connector, 50/125um, Multi Mode, Simplex,; CategoryThe connector The connector; File Size43KB，2 Pages; ManufacturerDiamond SA

Download Datasheet Parametric Compare View All

121-000-001L999 Overview

Fiber Optic Connector, 50/125um, Multi Mode, Simplex,

121-000-001L999 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	LENGTH IN METERS UP TO 999
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	50/125um
IEC compliance	NO
Insertion loss	0.4 dB
MIL compliance	NO
model	MULTI
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

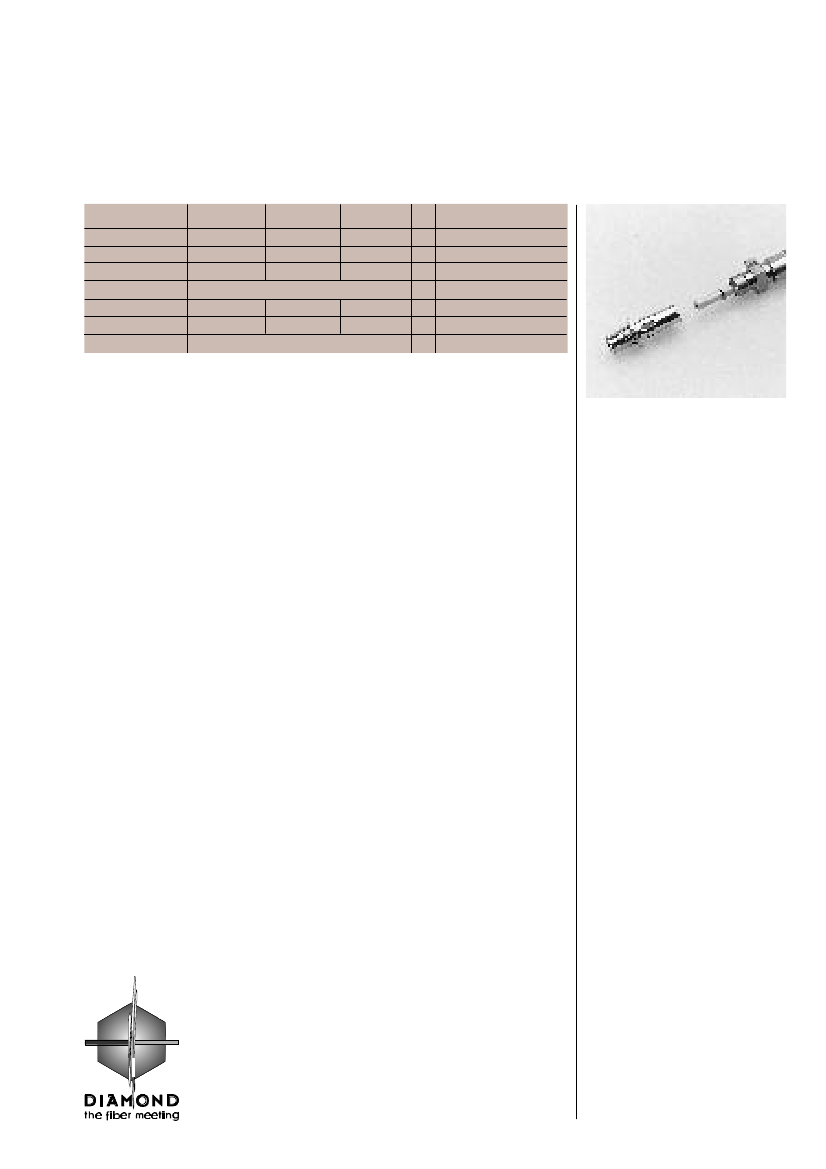

DIAMOND

Fiber Optic Components

Specifications:

Single mode

Multimode

Single mode 8°APC Units Test conditions

LSD/LSD-HRL

INSERT FOR BACKPLAN

CONNECTORS

D-3105.6

SM

C-338.6

MM

D-3108.6

SM/HRL

Insertion loss (IL)

Return loss (RL)

Repeatability of IL

Service life

Operating temperature

Storage temperature

Strain relief (cable)

typ 0.2 max 0.4 typ 0.2 max 0.4 typ 0.2 max 0.4 dB IEC 1300-3-4;

λ

= 1300/1550nm

50

max ±0.1

-40

+85

+90

min 40

max ±0.1

-40

+85

+90

1000 mate/demate cycles

-40

+85

+90

°C

N

min 70*

max ±0.1

dB IEC 1300-3-6;

λ

= 1300/1550nm

dB Over service life

> 100

* Measured with high resolution reflectometer HP 8504A

APPLICATIONS:

STANDARDS:

Telecommunications, CATV, LAN, MAN, WAN

LSD:

CECC 78005-801

LSD-HRL: EN 178 000

For use with backplane connectors complying

with DIN 41612, SIEDECON, SIPAC, HAR-PAC

and Z-Pack. Connector on rack side:

LSD:

LSA connector per CECC 86135-801

LSD-HRL: LSA connector per CECC 86135-802

Fiber alignment: SM: Active Core Alignment

via patented two-step

crimping process

MM: Via patented crimping

process

Polish:

LSD:

Convex (PC)

LSD-HRL: 8° angled convex

(APC)

Ferrule:

∅

2.5 mm, zirconia ceramic

with extending copper-nickel

alloy insert (Pilzferrule),

spring loaded (15 N),

anti-rotation keyed

Adaptor:

Floating zirconia resilient

sleeve in copper-nickel alloy

housing

External parts:

Copper-nickel alloy and Inox

- Unterminated connector

- Terminated patchcord or pigtail

See ordering information on reverse

DESIGN/MATERIALS:

AVAILABLE AS:

TERMINATION TOOLS

AND EQUIPMENT:

See section on tools and equipment

DIAMOND SA

CH-6616 LOSONE

Via dei Patrizi 5

Tel. ++41-91/785 45 45

Fax ++41-91/785 45 00

e-mail: diamond@diamond-fo.com

Specifications subject to change

without notice

002-037-201P010028
