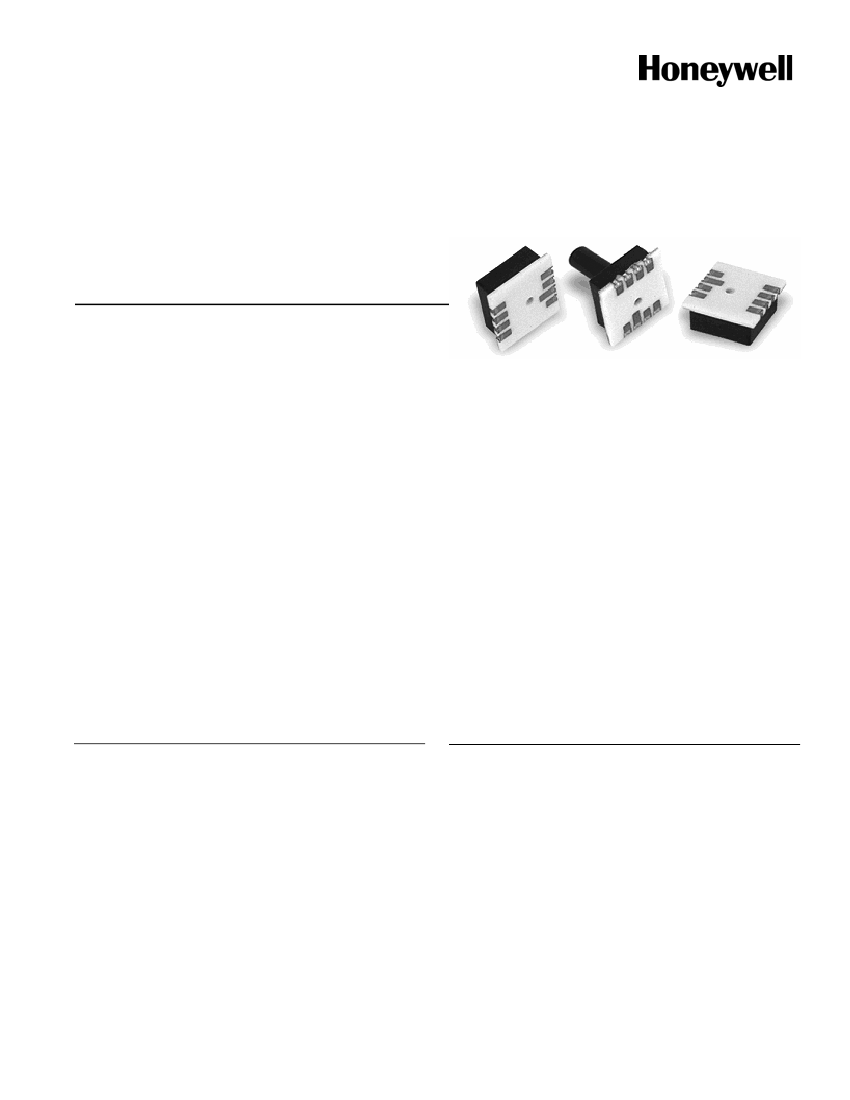

SCC SMT Series
Microstructure
Pressure Sensors
0 psi to 5 psi through
0 psi to 100 psi
The SCC SMT Series offers an extremely low-cost sensor
element with a temperature-stable output when driven with a
constant current source. These integrated circuit sensors were
designed for extremely cost-sensitive applications where
precise accuracy over a wide temperature range is not
required.
The 4-pin closed bridge configuration allows electrical
The standard surface mount package includes an optional
ported lid to fit in a variety of applications.
connection with additional pads provided for mechanical
support. Pulsed power is recommended to achieve maximum
accuracy and conserve battery power in portable applications.
FEATURES
•
•
•
•
•
•
Low cost
Small size
Internal temperature compensation
Absolute or gage pressures
High-impedance bridge
Low power consumption
•
•
•
•
•
•
•
•
•
POTENTIAL APPLICATIONS
Pneumatic controls
Automotive diagnostics
Medical equipment/instrumentation
Dental equipment
Environmental controls
Barometric pressure measurement
Altimeters
Pneumatic controls
Battery powered equipment
The absolute devices have an internal vacuum reference and
an output voltage proportional to absolute pressure. The
differential devices allow application of pressure to either side
of the sensing diaphragm and can be used for gage or
differential measurements.
SCC SMT Series
PRESSURE SENSOR SPECIFICATIONS
Characteristic
Supply current, I
S
Compensated temperature
Operating temperature
Storage temperature
Humidity
Lead temperature (soldering 2 s to 4 s)
STANDARD PRESSURE RANGES
(2)
Maximum Pressure
Operating
Pressure
0 psi to 5 psi
20 psi
0 psi to 15 psi
30 psi
0 psi to 30 psi
60 psi
0 psi to 100 psi
150 psi
PERFORMANCE SPECIFICATIONS
(1)
(1)
(1)
Parameter
1.5 mA
0 °C to 50 °C [32 °F to 122 °F]
-40 °C to 125 °C [-40 °F to 257 °F]
-55 °C to 125 °C [-67 °F to 257 °F]
0% to 100% RH
250 °C [482 °F]
Sensitivity
Nominal
7.50
4.30
2.90
1.30
(3)
Unit
Std. Dev.
±0.68
±0.37
±0.57
±0.20
mV/mA/psi
mV/mA/psi
mV/mA/psi
mV/mA/psi
Characteristic
Zero pressure offset (T
A
= 25 °C)
(4)
Linearity, hysteresis, repeatability
(5)
Temperature effect on span
(5)
Temperature effect on offset
(6)
Long-term stability of offset and span
(7)
Response time (10% to 90%)
Input resistance (T
A
= 25 °C)
Output impedance
Min.
-30.0
-1.0
-1.5
-2.0
–
–
4.00
4.00
Typ.
-10.0
0.2
0.25
.5
0.1
0.1
5.00
5.00
Max.
20.0
1.0
1.5
2.0
–
–
6.50
6.50
Unit
mV
% FSS
% FSS
% FSS
% FSS
ms
kΩ
kΩ
Notes:
1. Reference conditions: Supply current, I
S
= 1.0 mA, T
A
= 25 °C to 70 °C [32 °F to 158 °F], common-mode Line pressure =
0 psig, pressure applied to P1 unless otherwise noted.
2. If the maximum pressure is exceeded, even momentarily, the package may leak or burst, or the pressure sensing die may
fracture.
3. Sensitivity is the ratio of the output signal voltage change to the corresponding input pressure change. The sensitivity is
characterized by design and periodic production testing. This parameter in not 100% tested in production.
4. Linearity is based on best straight line fit. Hysteresis is the maximum output difference at any point within the operating
pressure range for increasing and decreasing pressure.
5. Maximum error band of the offset voltage and the error of the band of the span over the compensated temperature range,
relative to the 25 °C reading. Typical temperature coefficients for span and resistance are
-2200
ppm/°C and 2200 ppm/°C,
respectively. Temperature effects on offset and span are guaranteed by design. These parameters are not 100% tested in
production.
6. Long term stability over a one year period.
7. Response time for 0 psi to full scale span pressure step change.
2
www.honeywell.com/sensing
Microstructure Pressure Sensors

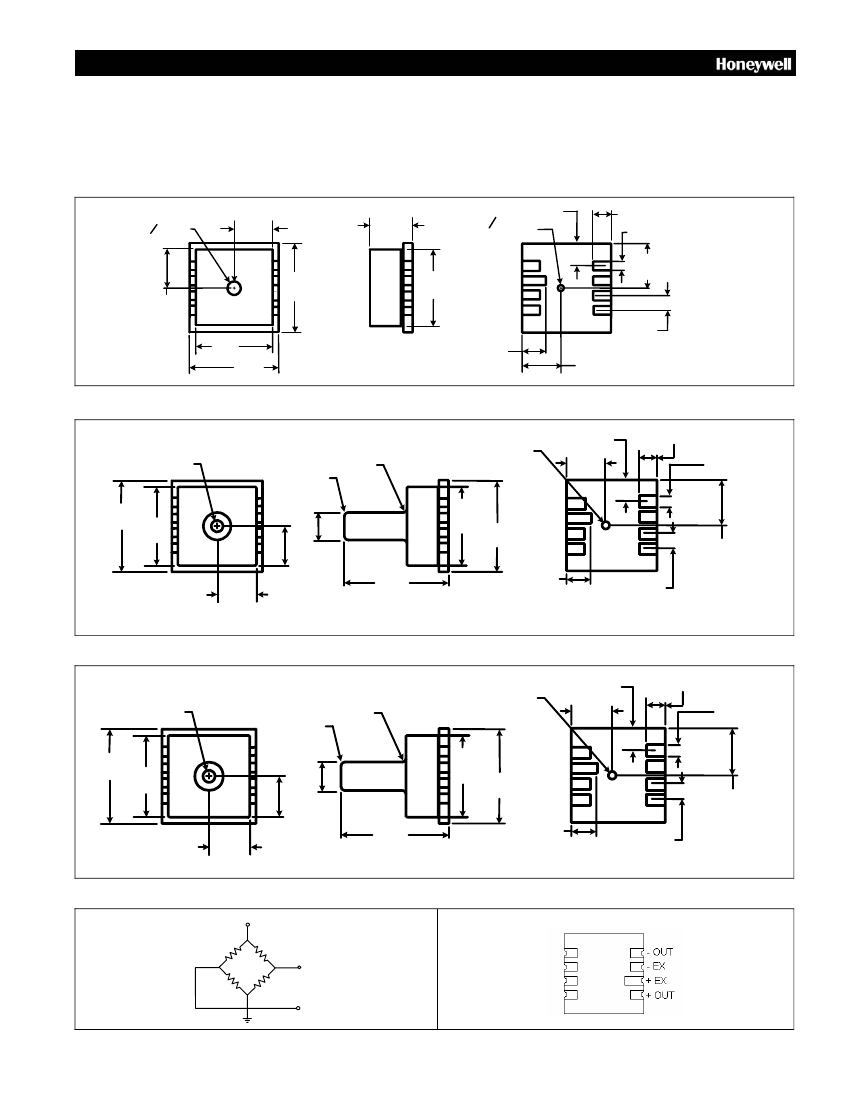

MOUNTING DIMENSIONS (For reference only: mm [in].)
LOW PROFILE SMT
1,10
O [.05]
3,30
[.13]
3,70
[.14]
0,70
[.03]
O 0,5 [.02]
FOR GAGE PORT (P2)
+ OUT
7X 0,76 [.03]
8X 0,76 [.03]
3,80
[.15]
3,30
[.13]
6,60
[.26]
7,60
[.30]
6,60
[.26]
+ EX
- EX
- OUT
2,00
[.08]
8X 1,27
[.05] ON CENTER
PADS
7,60
[.30]
3,30
[.13]
PORTED “P” SMT
0,5 [.02]
FOR GAGE PORT (P2)
0,70
[.03]
7X
0,76
[.03]
8X 0,76
[.03]
1,01
[.04]
3,3
[.13]
R0,3
[.01]
R0,3
[.01]
3,3
[.13]
7,61
[.30]
6,6
[.26]
6,6
[.26]
2,05
±0.76
[0.081
±0.003]
+ OUT
+ EX
7,6
[.30]
- EX
- OUT
2,0
[.08]
3,8
[.15]
8X 1,27
[.05] ON CENTER
PADS
3,3
[.13]
8,7
[.34]
PORTED “LP” SMT
0,5 [.02]
FOR GAGE PORT (P2)
0,70
[.03]
7X
0,76
[.03]
8X 0,76
[.03]
1,01
[.04]
3,3
[.13]
R0,3
[.01]
R0,3
[.01]
3,3
[.13]
7,61
[.30]
6,6
[.26]
6,6
[.26]
2,3
[.09]
+ OUT
+ EX
7,6
[.30]
- EX
- OUT
2,0
[.08]
3,8
[.15]
8X 1,27
[.05] ON CENTER
PADS
3,3
[.13]
8,7
[.34]
EQUIVALENT CIRCUITS
Vs
- Out
+Out
Honeywell Sensing and Control
3
