145251-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 145251-6

145251-6: Description242 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size278KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

145251-6 Overview

242 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER

145251-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK
body width	0.37 inch
subject depth	0.613 inch
body length	5.31 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	400VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	145251
Plug contact pitch	0.039 inch
Match contact row spacing	0.078 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Plating thickness	1u inch
Guideline	CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	242
Evacuation force-minimum value	.0556 N
Base Number Matches	1

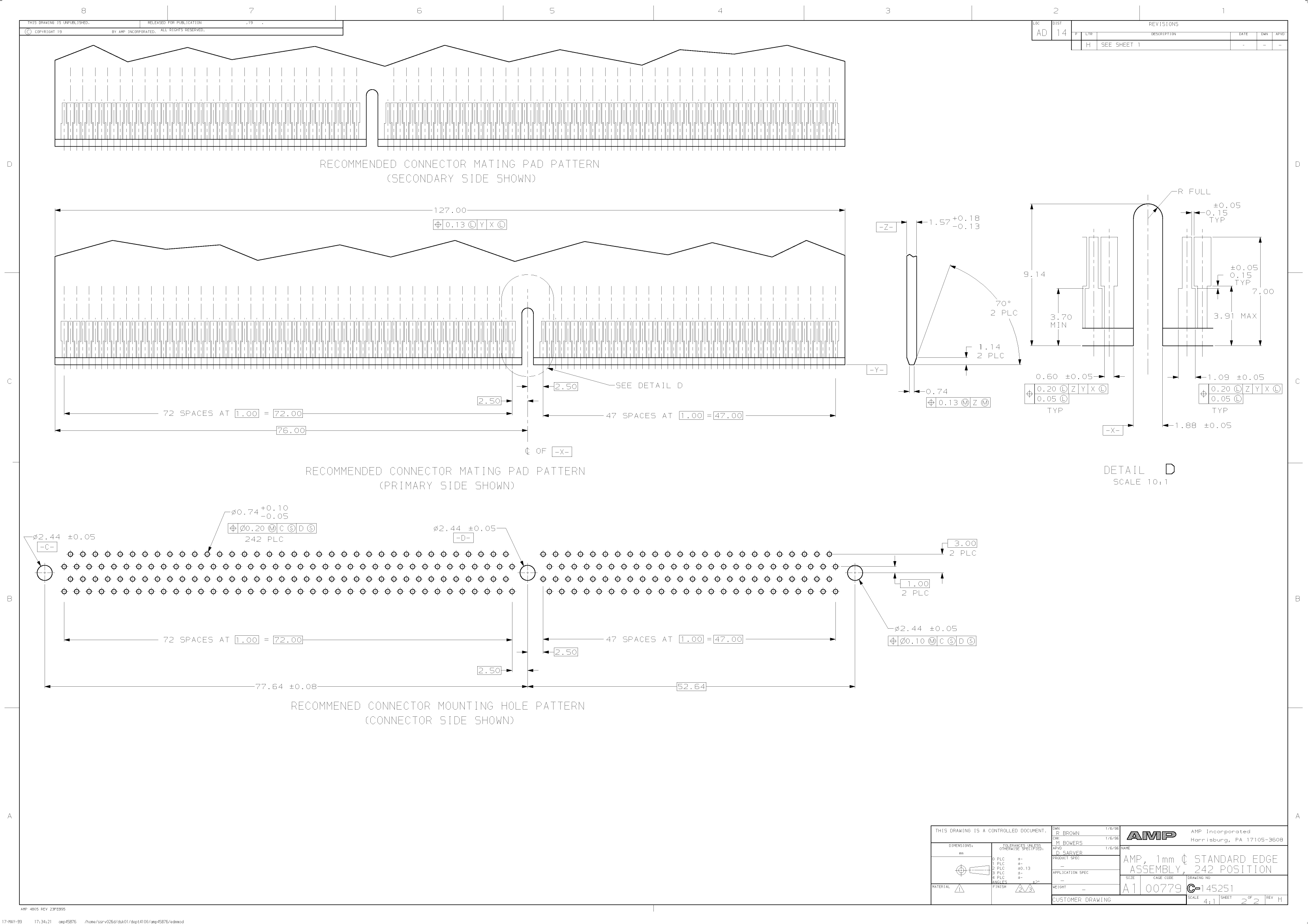

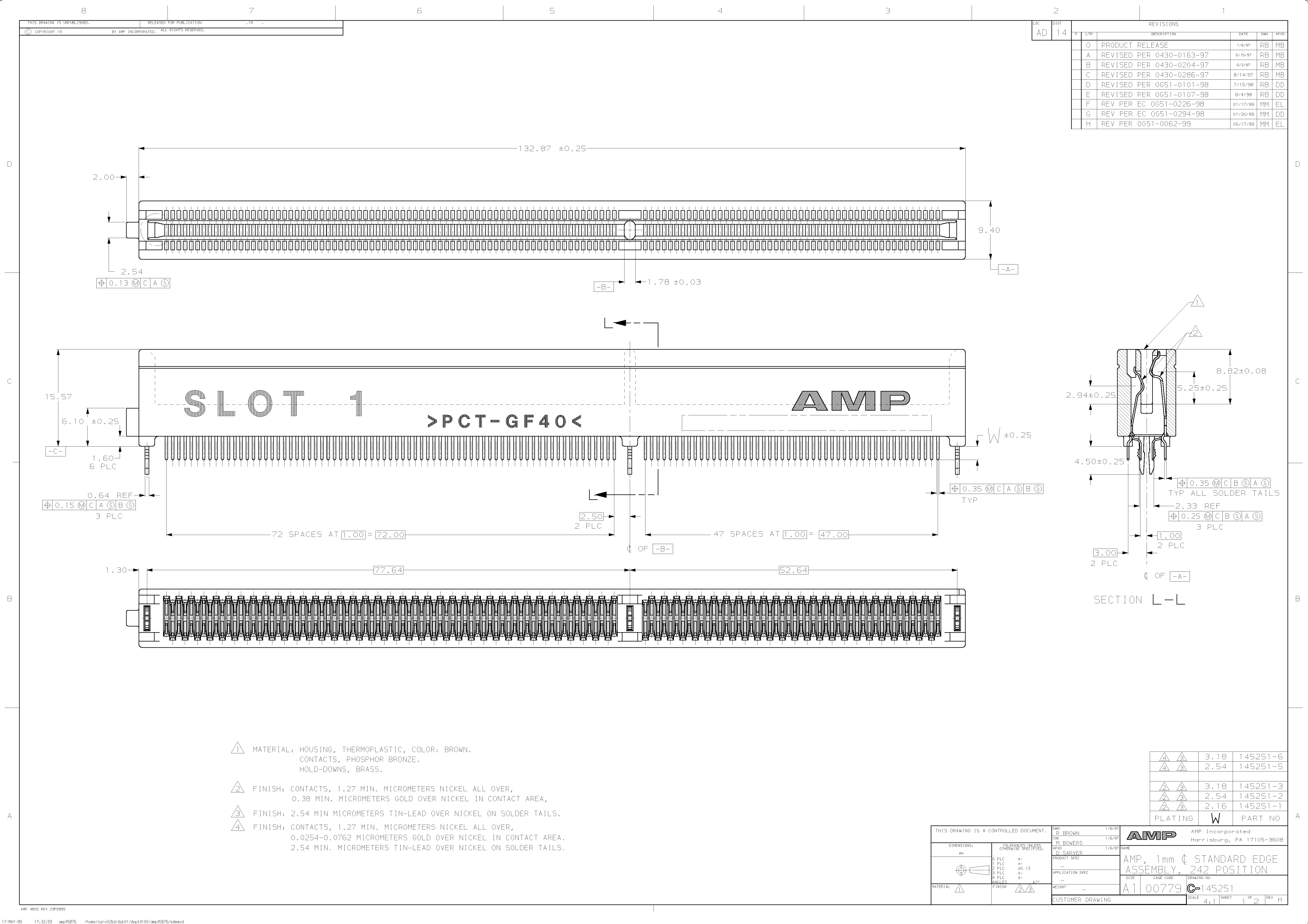

Preview

Download Datasheet

View All

145251-6 Related Products

	145251-6	145251-5
Description	242 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER	242 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.37 inch	0.37 inch
subject depth	0.613 inch	0.613 inch
body length	5.31 inch	5.31 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
Dielectric withstand voltage	400VAC V	400VAC V
Durability	50 Cycles	50 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.4448 N	.4448 N
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BROWN	BROWN
insulator material	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	145251	145251
Plug contact pitch	0.039 inch	0.039 inch
Match contact row spacing	0.078 inch	0.078 inch
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	4	4
Number of rows loaded	2	2
Maximum operating temperature	85 °C	85 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.0066 mm	2.0066 mm
Plating thickness	1u inch	1u inch
Guideline	CSA	CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.1 inch
Terminal pitch	2 mm	2 mm
Termination type	SOLDER	SOLDER
Total number of contacts	242	242
Evacuation force-minimum value	.0556 N	.0556 N
Base Number Matches	1	1
