39-28-7028 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 39-28-7028

Preview

39-28-7028: DescriptionRectangular Power Connector, 2 Contact(s), Female/Male, Solder Terminal; CategoryThe connector The connector; File Size288KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-28-7028 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-28-7028	-	-	View	Buy Now

39-28-7028 Overview

Rectangular Power Connector, 2 Contact(s), Female/Male, Solder Terminal

39-28-7028 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE/MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Positive lock

s

Fully isolated terminals

s

Polarized housing assures proper mating

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75107

Mates With:

3191

receptacle

Designed In: Inches

Electrical

Voltage: 600V

Current: 12.0A max.

Dielectric Withstanding Voltage: 5000V AC rms

Physical

Housing: Nylon, UL 94V-2

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105˚C

6.71mm (.264") Pitch

.093" Pin and Socket

Header

5219

Power Connectors

F

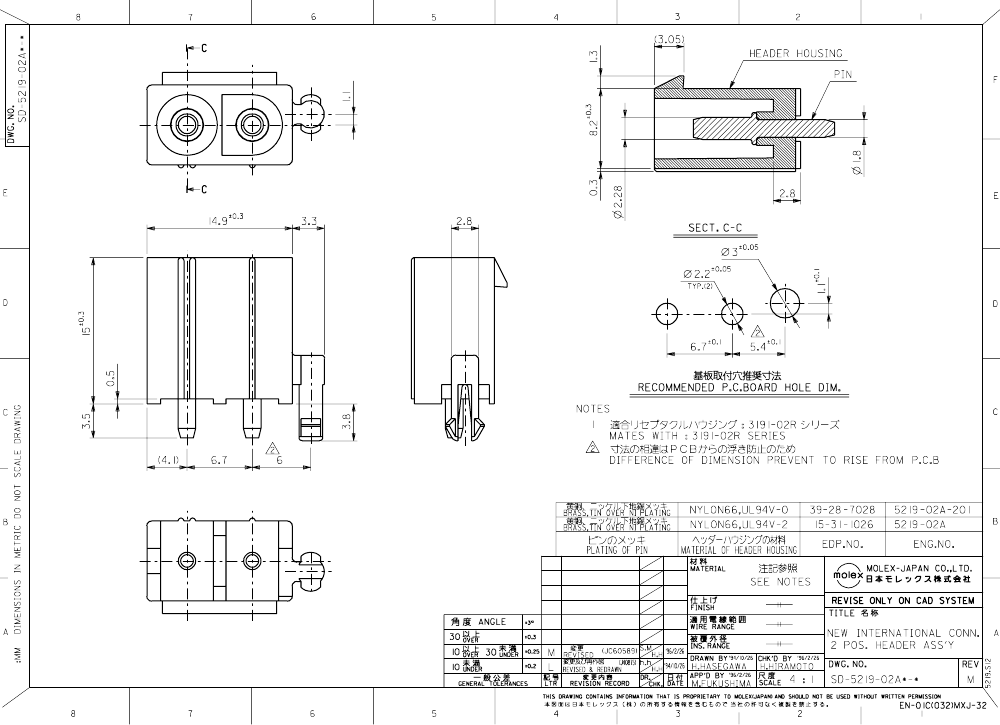

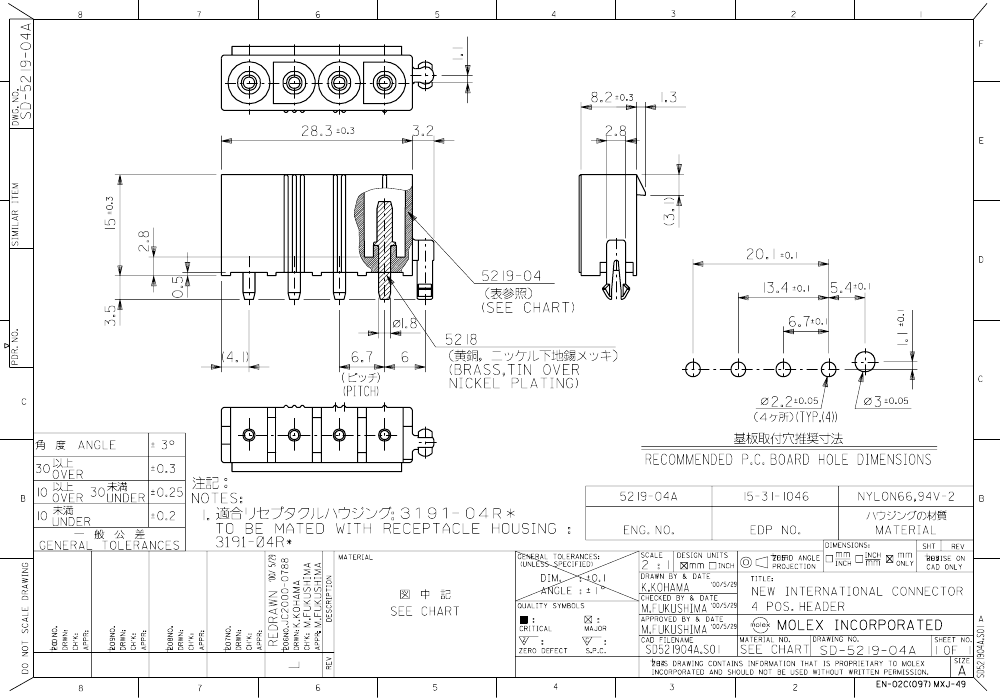

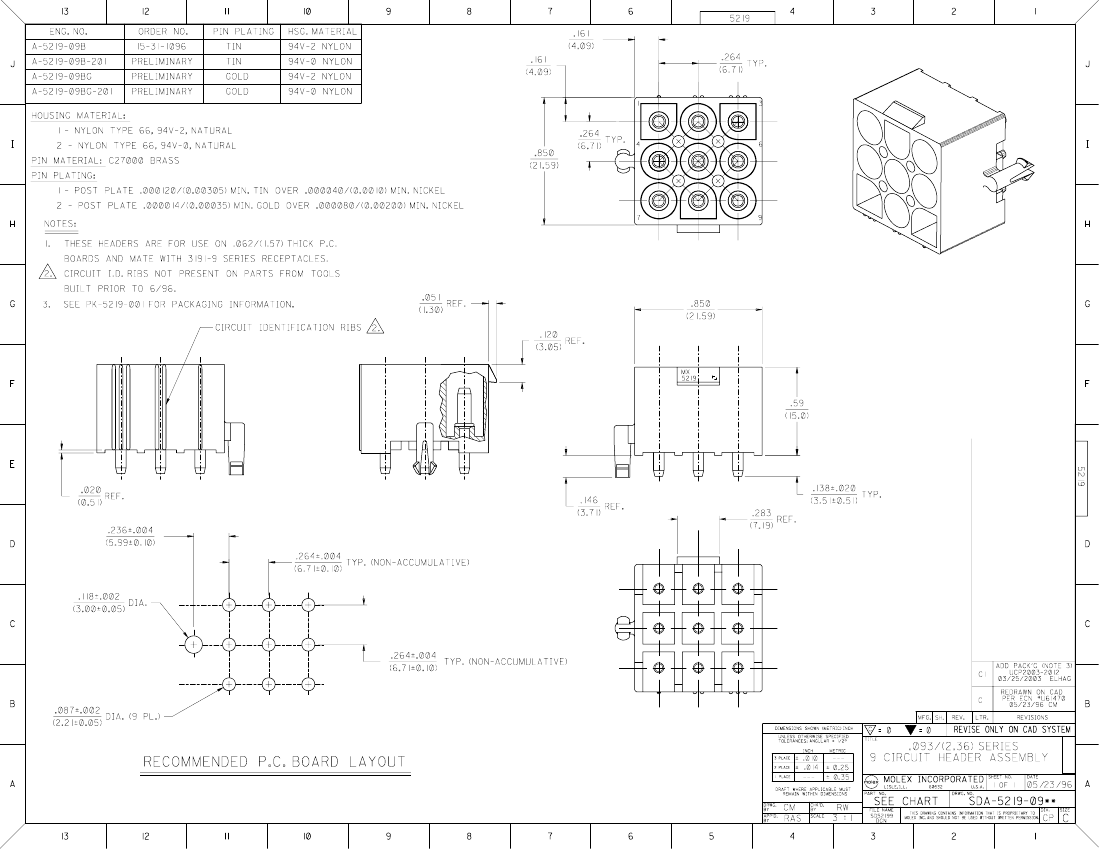

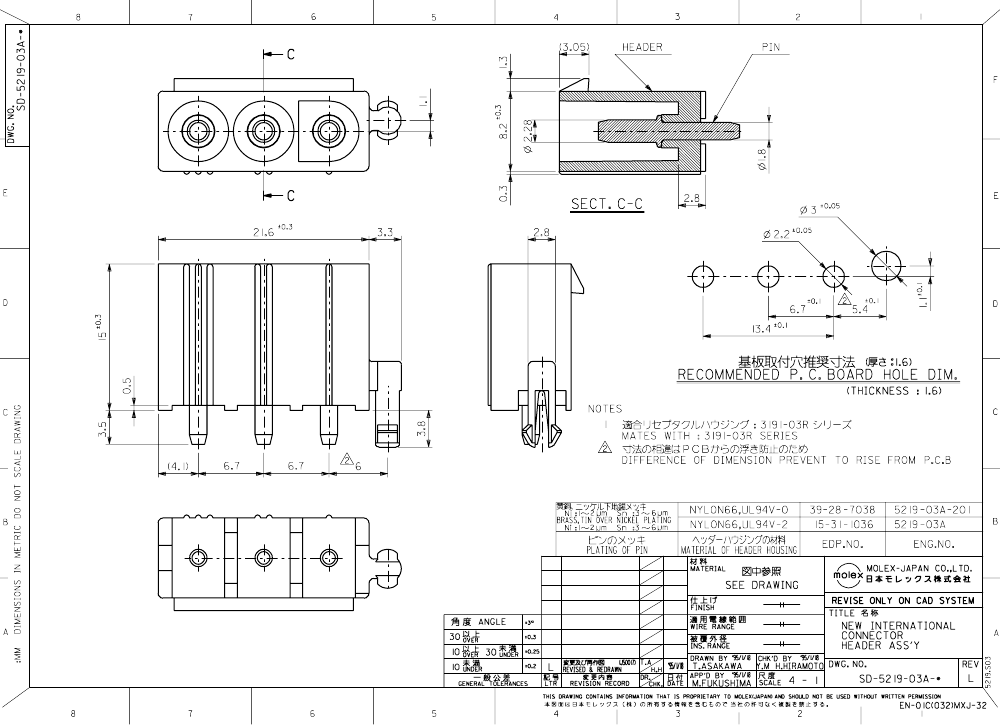

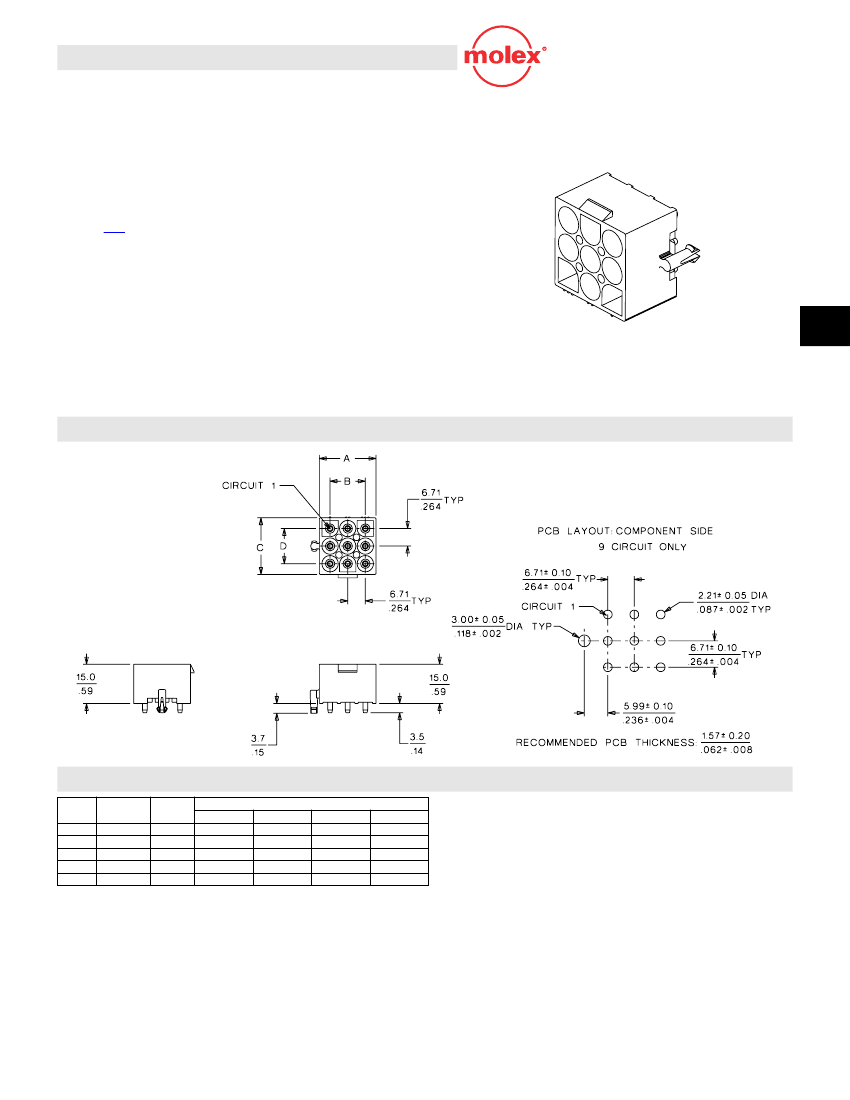

CATALOG DRAWING (FOR REFERENCE ONLY)

(

)

ORDERING INFORMATION AND DIMENSIONS

Circuits

2

3

4

6

9

Order No.

15-31-1026

15-31-1036

15-31-1046

15-31-1066

15-31-1096

Amperes

Per Circuit

12

11

9

14.30

21.00

27.70

21.00

Dimension

A

(.560)

(.830)

(1.090)

(.830)

6.71

13.42

20.13

13.42

B

(.264)

(.528)

(.792)

(.528)

7.60

14.30

21.00

C

(.300)

(.560)

(.830)

D

6.71 (.264)

13.42 (.528)

MX01

F-99

Recommended Resources

AX3-300-2 DC arc welding machine circuit

Street light control circuit 5

M50560 infrared transmitter circuit

voltage follower circuit

4N22A to 4N24A type photocoupler circuit

Two-channel automatic volume control circuit
