74FCT3245APGG8

Description
TSSOP-20, Reel
Categorylogic    logic
File Size176KB，7 Pages
ManufacturerIDT (Integrated Device Technology)
Environmental Compliance
Download Datasheet Parametric Compare View All

74FCT3245APGG8 Online Shopping

Suppliers Part Number Price MOQ In stock
74FCT3245APGG8 - - View Buy Now

74FCT3245APGG8 Overview

TSSOP-20, Reel

74FCT3245APGG8 Parametric

Parameter NameAttribute value
Brand NameIntegrated Device Technology
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeTSSOP
package instructionTSSOP, TSSOP20,.25
Contacts20
Manufacturer packaging codePGG20
Reach Compliance Codecompliant
ECCN codeEAR99
Control typeCOMMON CONTROL
Counting directionBIDIRECTIONAL
seriesFCT
JESD-30 codeR-PDSO-G20
JESD-609 codee3
length6.5 mm
Logic integrated circuit typeBUS TRANSCEIVER
MaximumI(ol)0.024 A
Humidity sensitivity level1
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE WITH SERIES RESISTOR
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
power supply3.3 V
Prop。Delay @ Nom-Sup4.6 ns
propagation delay (tpd)4.6 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn) - annealed
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
translateN/A
width4.4 mm
Base Number Matches1

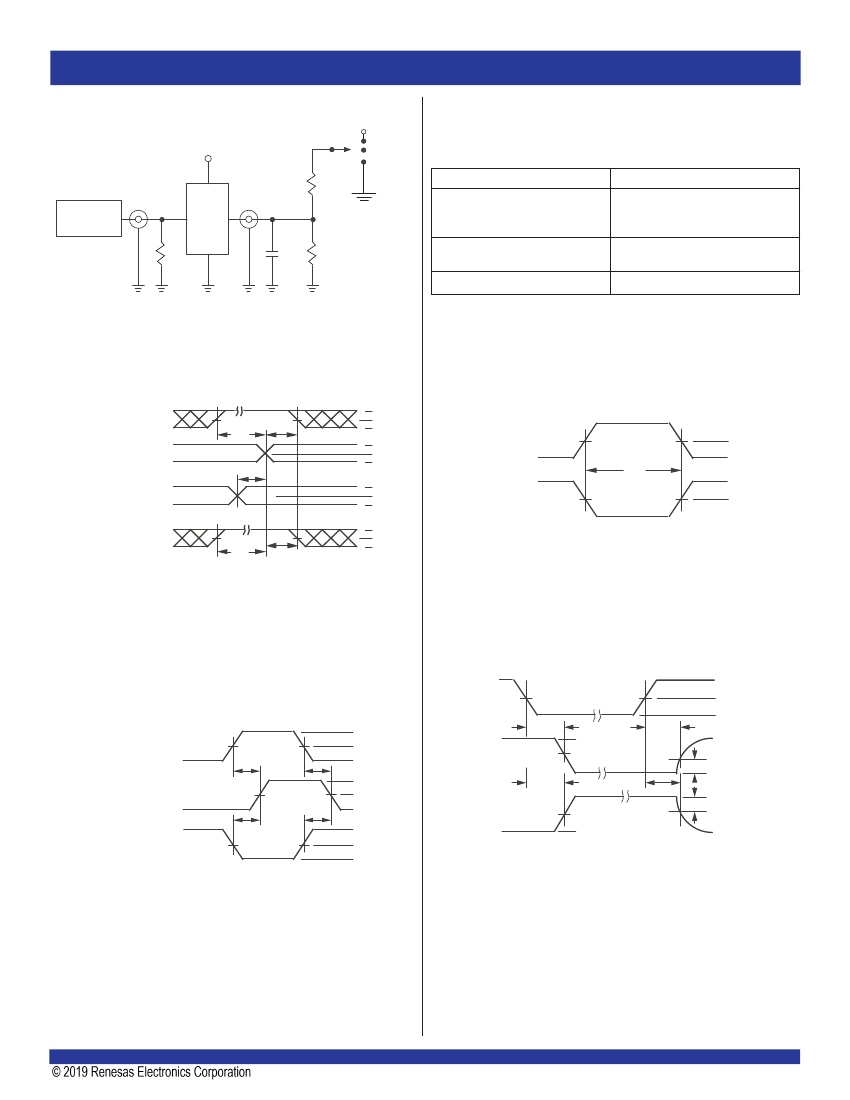

Preview

Download Datasheet
IDT74FCT3245/A
3.3V CMOS OCTAL BIDIRECTIONAL TRANSCEIVER
INDUSTRIAL TEMPERATURE RANGE
3.3V CMOS OCTAL
BIDIRECTIONAL
TRANSCEIVER
FEATURES:
DESCRIPTION:
IDT74FCT3245/A
• 0.5 MICRON CMOS Technology
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
• V
CC
= 3.3V ±0.3V, Normal Range
• V
CC
= 2.7V to 3.6V, Extended Range
μ
• CMOS power levels (0.4μW typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in QSOP and TSSOP packages
The FCT3245/A octal transceivers are built using advanced dual metal
CMOS technology. These high-speed, low-power transceivers are ideal
for asynchronous communication between two buses (A and B). The
direction control pin (DIR) controls the direction of data flow. The output
enable pin (OE) overrides the direction control and disables both ports. All
inputs are designed with hysteresis for improved noise margin.
The FCT3245/A has series current limiting resistors. These offer low
ground bounce, minimal undershoot, and controlled output fall times-
reducing the need for external series terminating resistors.

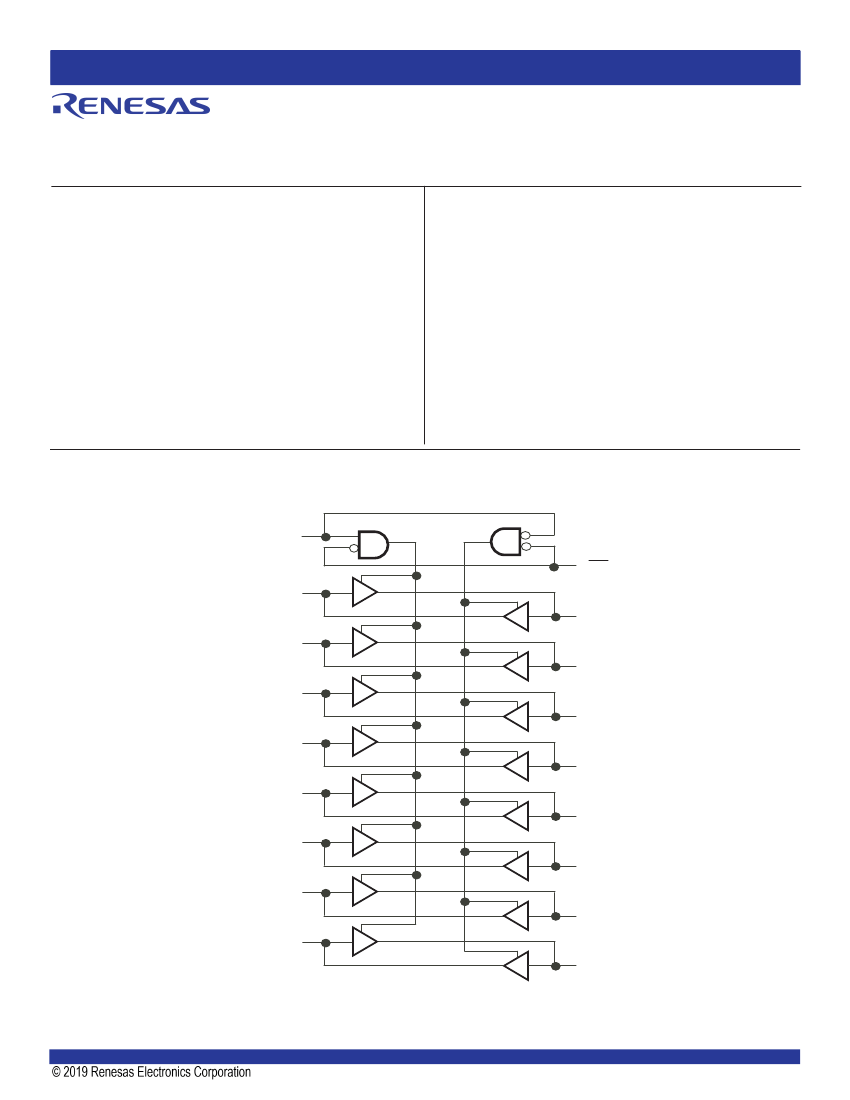

FUNCTIONAL BLOCK DIAGRAM
DIR
1
19
OE
B
1
B
2
B
3
B
4
B
5
B
6
B
7
B
8
A
1
A
2
A
3
2
18
3
17
4
16
5
A
4
A
5
A
6
A
7
A
8
6
15
14
7
13
8
12
9
11
