ALC10A331BB200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ALC10A331BB200

ALC10A331BB200: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，15 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

ALC10A331BB200 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, CAN, ROHS COMPLIANT

ALC10A331BB200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM (WET)
ESR	486 mΩ
leakage current	0.396 mA
length	30 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
Guideline	IEC60384-4
ripple current	1180 mA
surface mount	NO
Terminal pitch	10 mm
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

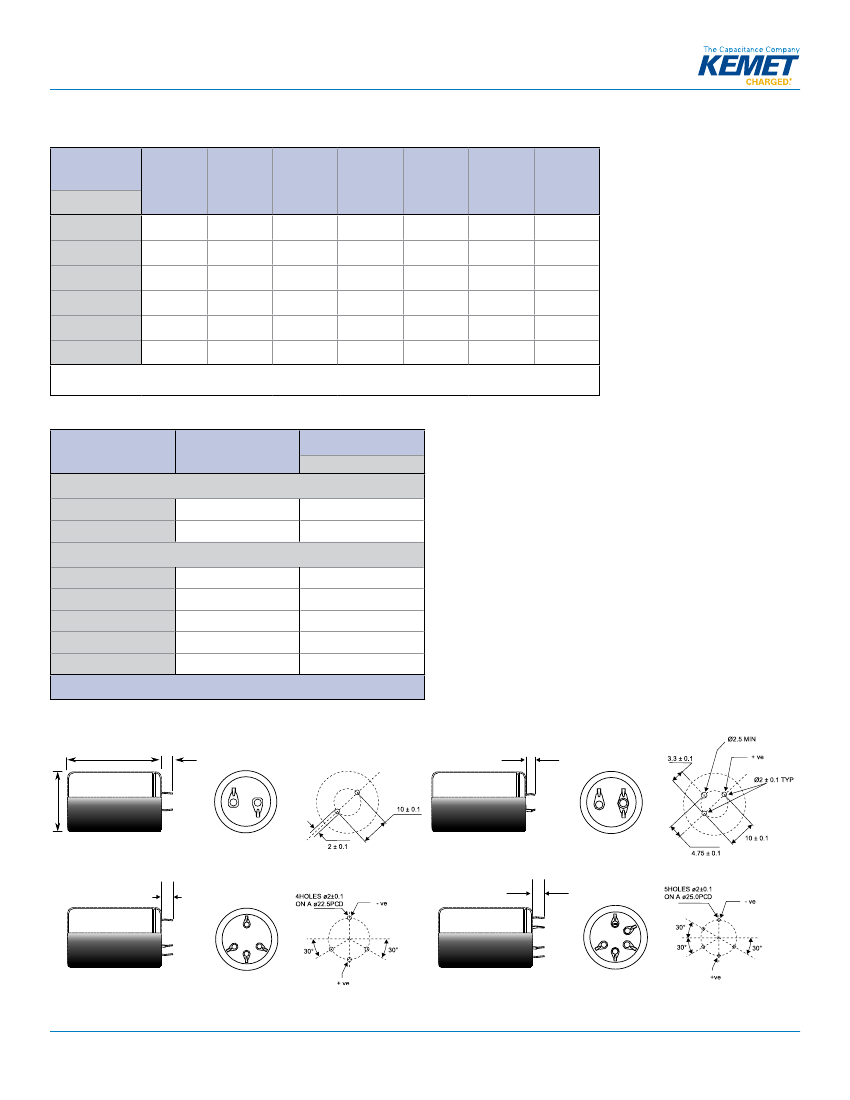

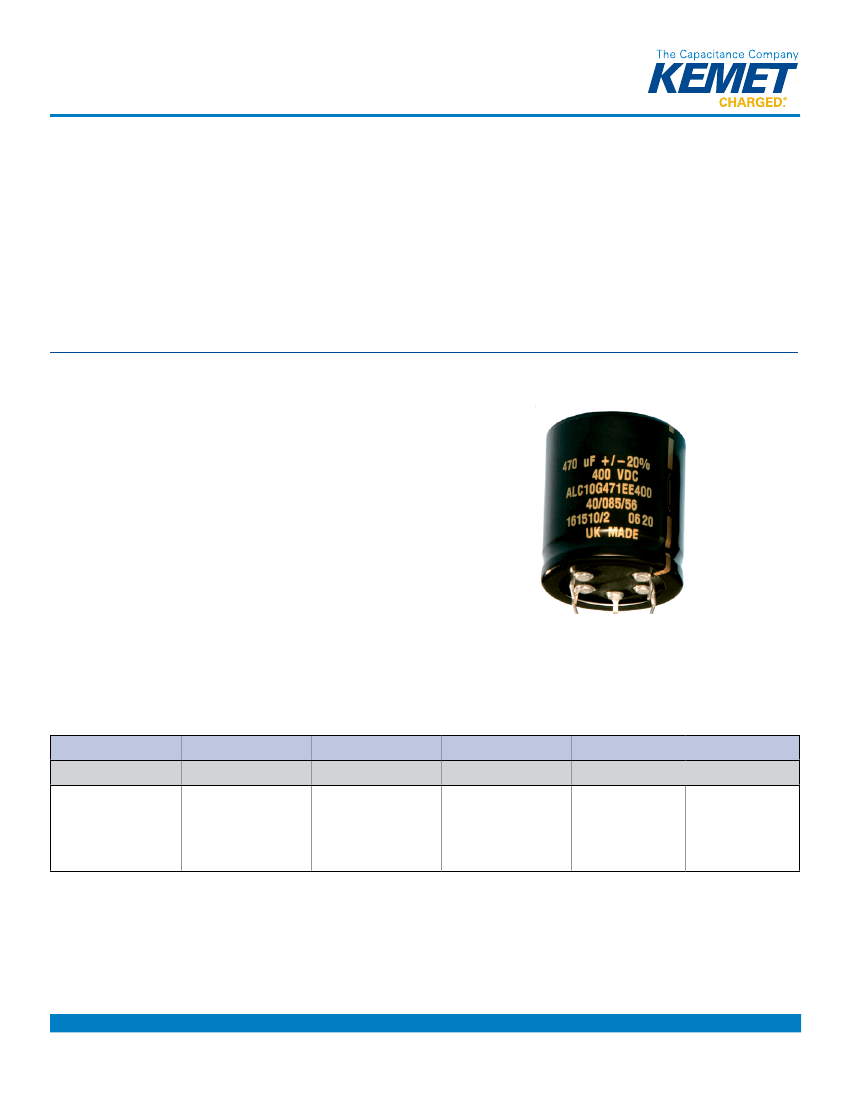

Snap-In Aluminum Electrolytic Capacitors

ALC10 Series, 85ºC

Overview

Applications

KEMET's ALC10 Series of capacitors is ideally suited for

industrial and commercial applications demanding high reliability

and long life expectancy. Typical applications include frequency

converters, uninterruptible power supply (UPS) systems and

switch mode power supplies (SMPS).

KEMET's ALC10 Series of snap-in capacitors covers a wide

range of case sizes and voltage ratings. The ALC10 Series

features high ripple current, surge voltage capability and very

long-life performance.

Benefits

•

Compact size

Long life, up to 18,000 hours at +85°C (V

, I

applied)

High ripple current

Excellent surge voltage capability

Optimized designs available upon request

Part Number System

ALC10

Series

Snap-In type Aluminum

Electrolytic

Termination

See Termination Table

392

Capacitance Code (µF)

First 2 digits equals first

2 significant figures, 3rd

digit is the number of

additional zeros.

Size Code

See Dimension Table

040 = 40

063 = 63

100 = 100

200 = 200

250 = 250

040

Voltage (VDC)

350 = 350

400 = 400

450 = 450

500 = 500

One world. One KEMET

A4020_ALC10 • 4/15/2013

Snap-In Aluminum Electrolytic Capacitors – ALC10 Series, +85ºC

Shelf Life

The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however the leakage

current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three years at 40°C. See

sectional specification under each product series for specific data.

Re-age (Reforming) Procedure

Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen to a steady

value below the specified limit. During re-aging a maximum charging current of twice the specified leakage current or 5 mA (whichever

is greater) is suggested.

Reliability

The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of conditions for a

given length of time.

In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must utilize probability

theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple current, temperature and time).

Finally, the meaning of satisfactory performance must be defined by specifying a set of conditions which determine the end of life of the

component.

Reliability as a function of time, R(t), is normally expressed as: R(t)=e-

λt

where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.

Failure Rate

The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows the

characteristic pattern:

• Early failures are removed during the manufacturing process.

• The operational life is characterized by a constant failure rate.

• The wear out period is characterized by a rapidly increasing failure rate.

The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as 1 x 10

-9

failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.

e.g., 100 FIT = 1 x 10

-7

failures per hour = 0.01%/1,000 hours

End of Life Definition

Catastrophic Failure: short circuit, open circuit or safety vent operation

Parametric Failure:

• Change in capacitance > ±10%

• Leakage current > specified limit

• ESR > 2 x initial ESR value

A4020_ALC10 • 4/15/2013
