LH28F800SGR-L10

Description
Flash, 512KX16, 100ns, PDSO48, REVERSE, TSOP1-48
Categorystorage    storage
File Size2MB，45 Pages
ManufacturerSHARP
Websitehttp://sharp-world.com/products/device/
Download Datasheet Parametric Compare View All

LH28F800SGR-L10 Overview

Flash, 512KX16, 100ns, PDSO48, REVERSE, TSOP1-48

LH28F800SGR-L10 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionREVERSE, TSOP1-48
Reach Compliance Codeunknown
Maximum access time100 ns
command user interfaceYES
Data pollingNO
JESD-30 codeR-PDSO-G48
JESD-609 codee0
memory density8388608 bit
Memory IC TypeFLASH
memory width16
Number of functions1
Number of departments/size16
Number of terminals48
word count524288 words
character code512000
Maximum operating temperature70 °C
Minimum operating temperature
organize512KX16
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeTSSOP48,.8,20
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3/5 V
Programming voltage3.3 V
Certification statusNot Qualified
ready/busyYES
reverse pinoutYES
Department size32K
Maximum standby current0.000012 A
Maximum slew rate0.08 mA
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
switch bitNO
typeNOR TYPE
Base Number Matches1

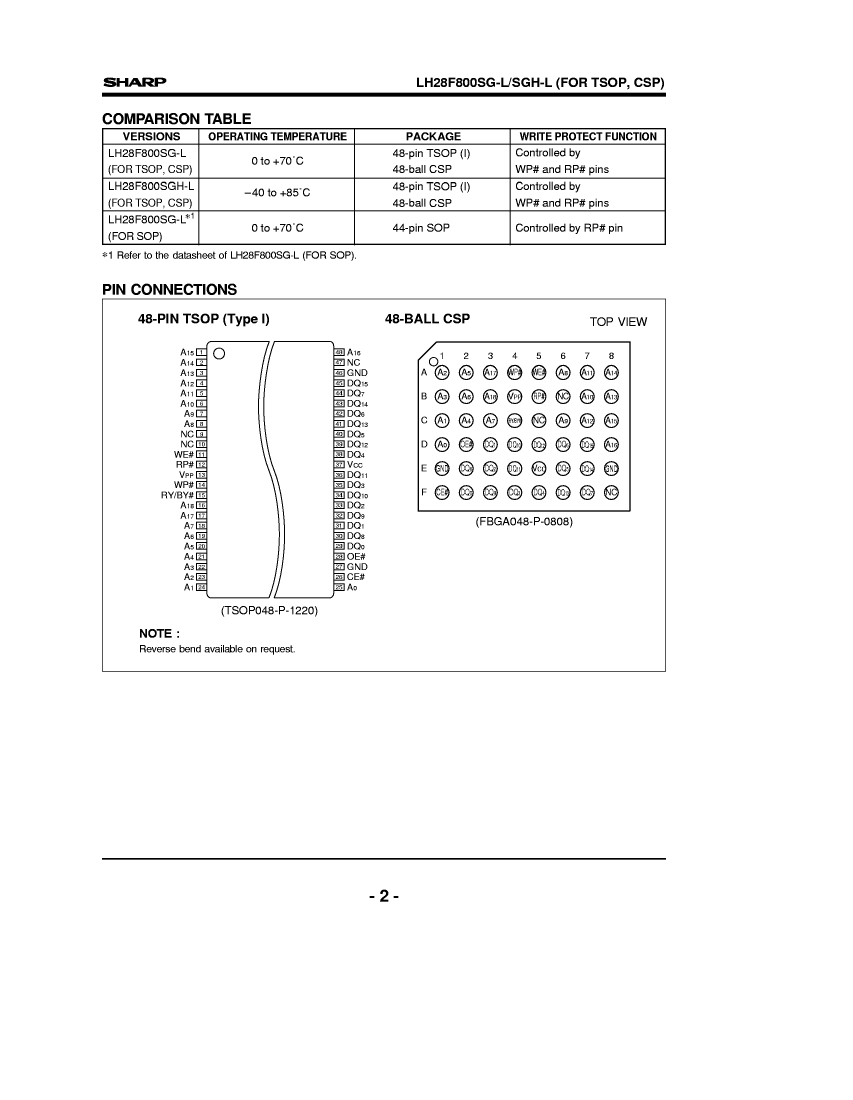

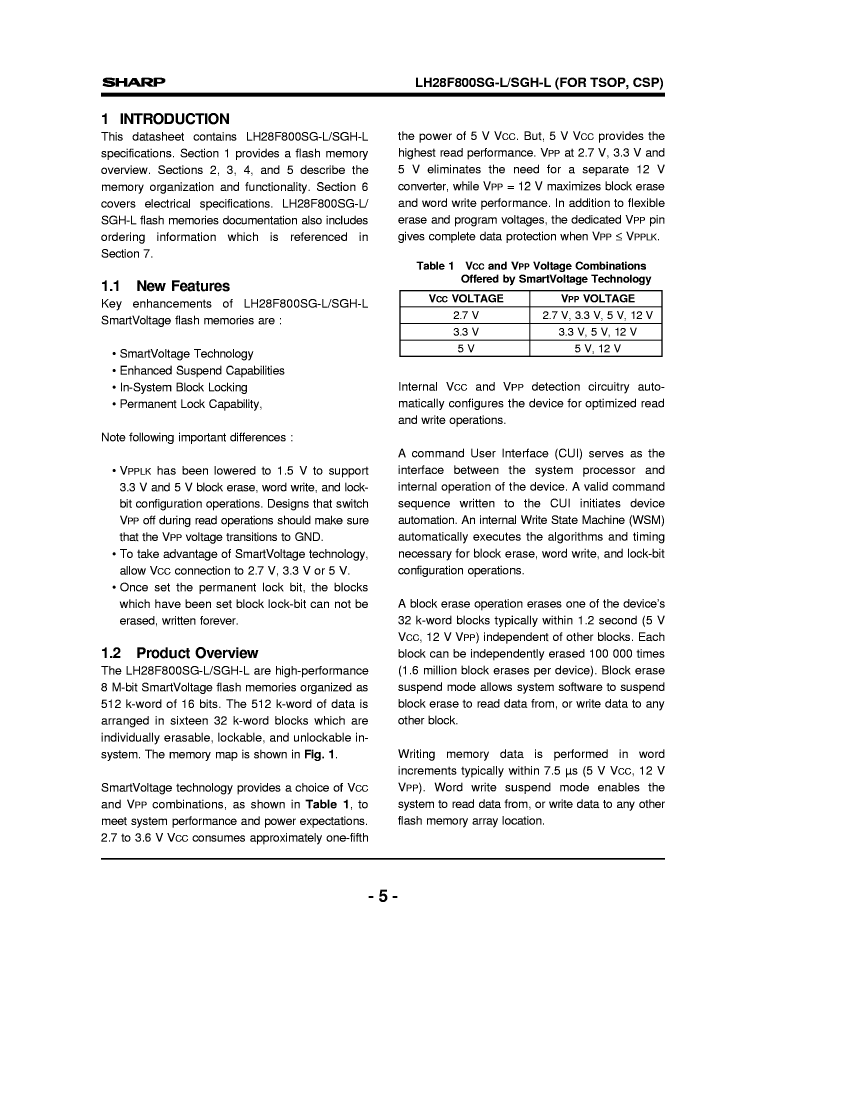

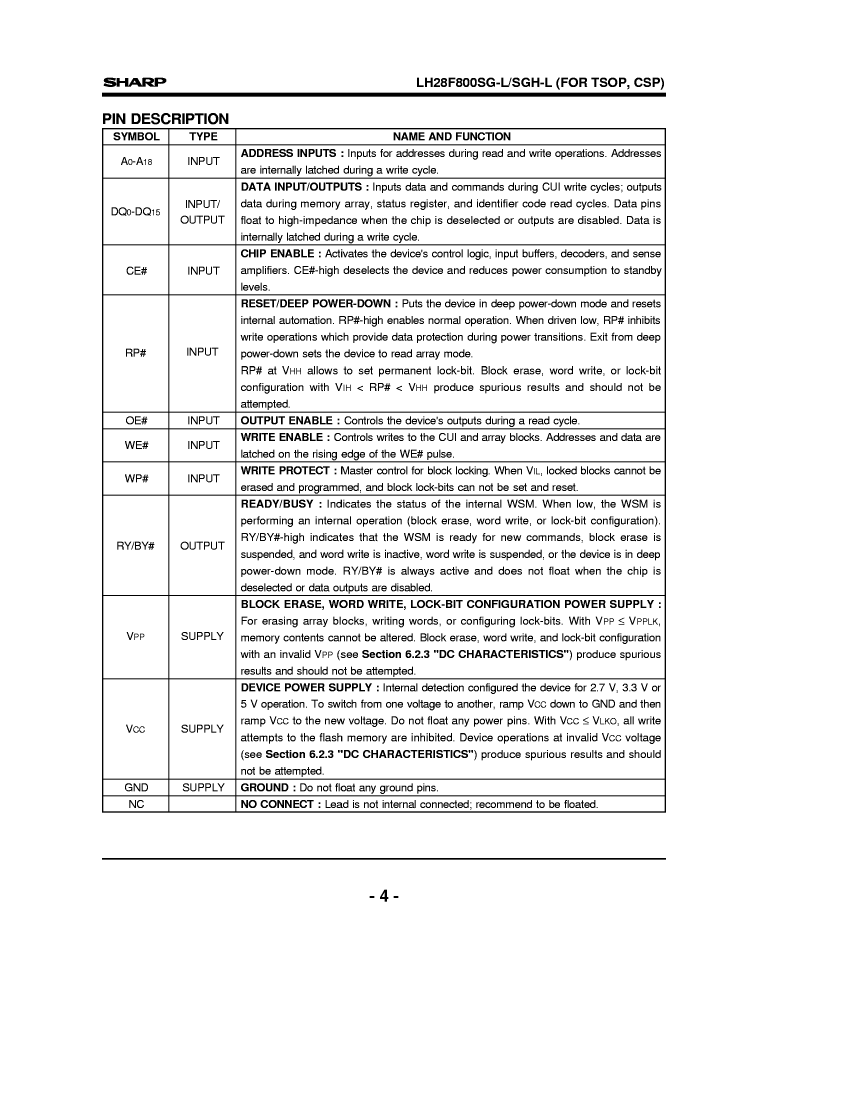

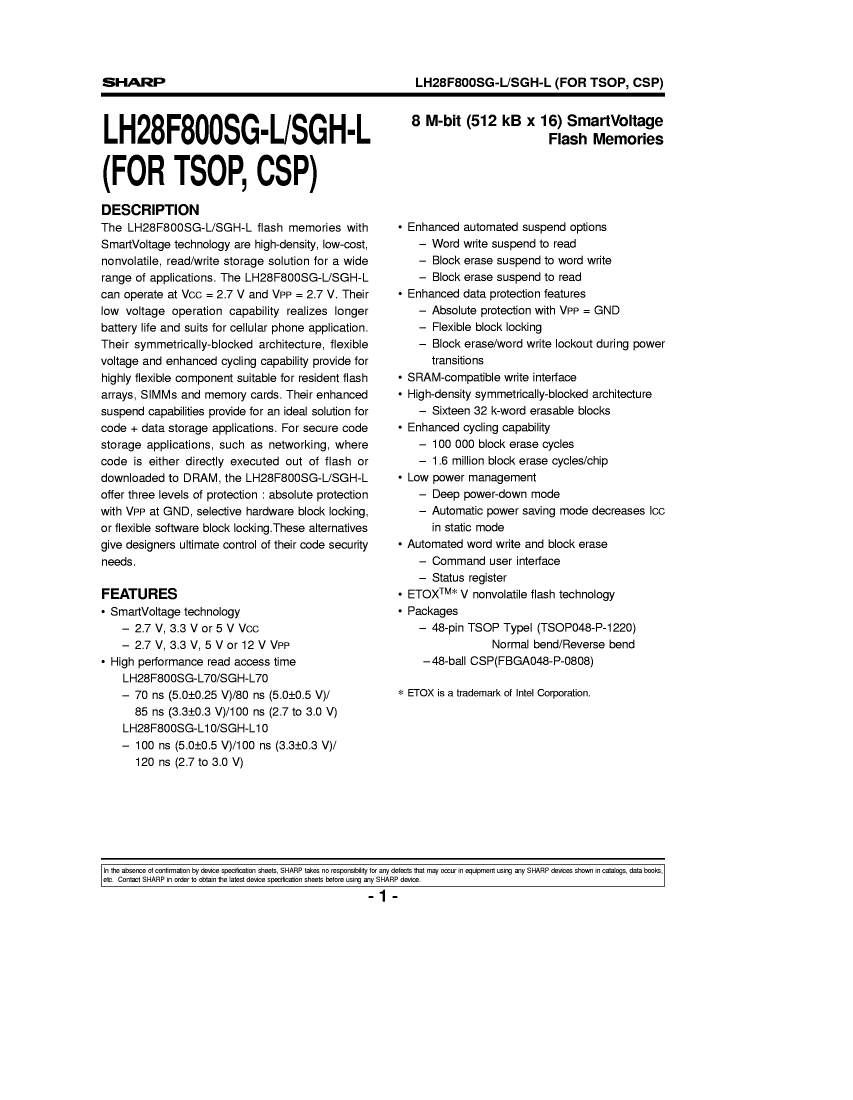

Preview

Download Datasheet

LH28F800SGR-L10 Related Products

LH28F800SGR-L10 LH28F800SGB-L70 LH28F800SGB-L10 LH28F800SGE-L10 LH28F800SGE-L70 LH28F800SGHE-L10 LH28F800SGHB-L70 LH28F800SGHR-L70 LH28F800SGHR-L10 LH28F800SGR-L70
Description Flash, 512KX16, 100ns, PDSO48, REVERSE, TSOP1-48 Flash, 512KX16, 70ns, PBGA48, 8 X 8 MM, FBGA-48 Flash, 512KX16, 100ns, PBGA48, 8 X 8 MM, FBGA-48 Flash, 512KX16, 100ns, PDSO48, TSOP1-48 Flash, 512KX16, 70ns, PDSO48, TSOP1-48 Flash, 512KX16, 100ns, PDSO48, TSOP1-48 Flash, 512KX16, 70ns, PBGA48, 8 X 8 MM, FBGA-48 Flash, 512KX16, 70ns, PDSO48, REVERSE, TSOP1-48 Flash, 512KX16, 100ns, PDSO48, REVERSE, TSOP1-48 Flash, 512KX16, 70ns, PDSO48, REVERSE, TSOP1-48
package instruction REVERSE, TSOP1-48 8 X 8 MM, FBGA-48 8 X 8 MM, FBGA-48 TSOP1-48 TSOP1-48 TSOP1-48 8 X 8 MM, FBGA-48 REVERSE, TSOP1-48 REVERSE, TSOP1-48 REVERSE, TSOP1-48
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Maximum access time 100 ns 70 ns 100 ns 100 ns 70 ns 100 ns 70 ns 70 ns 100 ns 70 ns
JESD-30 code R-PDSO-G48 S-PBGA-B48 S-PBGA-B48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 S-PBGA-B48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48
memory density 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit
Memory IC Type FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH
memory width 16 16 16 16 16 16 16 16 16 16
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 48 48 48 48 48 48 48 48 48 48
word count 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words
character code 512000 512000 512000 512000 512000 512000 512000 512000 512000 512000
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 85 °C 85 °C 85 °C 85 °C 70 °C
organize 512KX16 512KX16 512KX16 512KX16 512KX16 512KX16 512KX16 512KX16 512KX16 512KX16
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP TFBGA TFBGA SOP SOP SOP TFBGA SOP SOP SOP
Package shape RECTANGULAR SQUARE SQUARE RECTANGULAR RECTANGULAR RECTANGULAR SQUARE RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE GRID ARRAY, THIN PROFILE, FINE PITCH GRID ARRAY, THIN PROFILE, FINE PITCH SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE GRID ARRAY, THIN PROFILE, FINE PITCH SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Programming voltage 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount YES YES YES YES YES YES YES YES YES YES
technology CMOS MOS CMOS CMOS MOS CMOS MOS MOS CMOS MOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL COMMERCIAL
Terminal form GULL WING BALL BALL GULL WING GULL WING GULL WING BALL GULL WING GULL WING GULL WING
Terminal pitch 0.5 mm 0.75 mm 0.75 mm 0.5 mm 0.5 mm 0.5 mm 0.75 mm 0.5 mm 0.5 mm 0.5 mm
Terminal location DUAL BOTTOM BOTTOM DUAL DUAL DUAL BOTTOM DUAL DUAL DUAL
type NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE
Is it Rohs certified? incompatible incompatible incompatible incompatible - - incompatible incompatible incompatible incompatible
command user interface YES - - YES YES YES - YES YES YES
Data polling NO - - NO NO NO - NO NO NO
JESD-609 code e0 e0 e0 e0 - - e0 e0 e0 e0
Number of departments/size 16 - - 16 16 16 - 16 16 16
Encapsulate equivalent code TSSOP48,.8,20 - - TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 - TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20
Parallel/Serial PARALLEL PARALLEL - PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 3/5 V - - 3/5 V 3/5 V 3/5 V - 3/5 V 3/5 V 3/5 V
ready/busy YES - - YES YES YES - YES YES YES
Department size 32K - - 32K 32K 32K - 32K 32K 32K
Maximum standby current 0.000012 A - - 0.000012 A 0.000012 A 0.000012 A - 0.000012 A 0.000012 A 0.000012 A
Maximum slew rate 0.08 mA - - 0.08 mA 0.08 mA 0.08 mA - 0.08 mA 0.08 mA 0.08 mA
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
switch bit NO - - NO NO NO - NO NO NO
Maker - SHARP SHARP SHARP SHARP SHARP SHARP SHARP SHARP SHARP
