DAC-86EX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-86EX

DAC-86EX: DescriptionIC PARALLEL, WORD INPUT LOADING, 1 us SETTLING TIME, 8-BIT DAC, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size324KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

DAC-86EX Overview

IC PARALLEL, WORD INPUT LOADING, 1 us SETTLING TIME, 8-BIT DAC, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18, Digital to Analog Converter

DAC-86EX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	HERMETIC SEALED, CERAMIC, DIP-18
Contacts	18
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum analog output voltage	18 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal settling time (tstl)	1 µs
Maximum slew rate	9.3 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

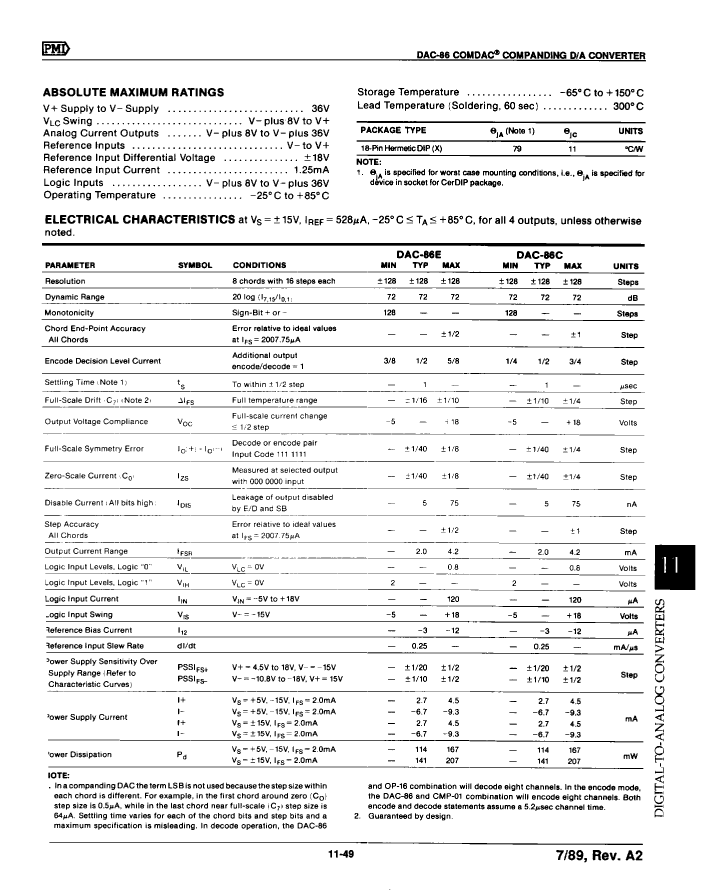

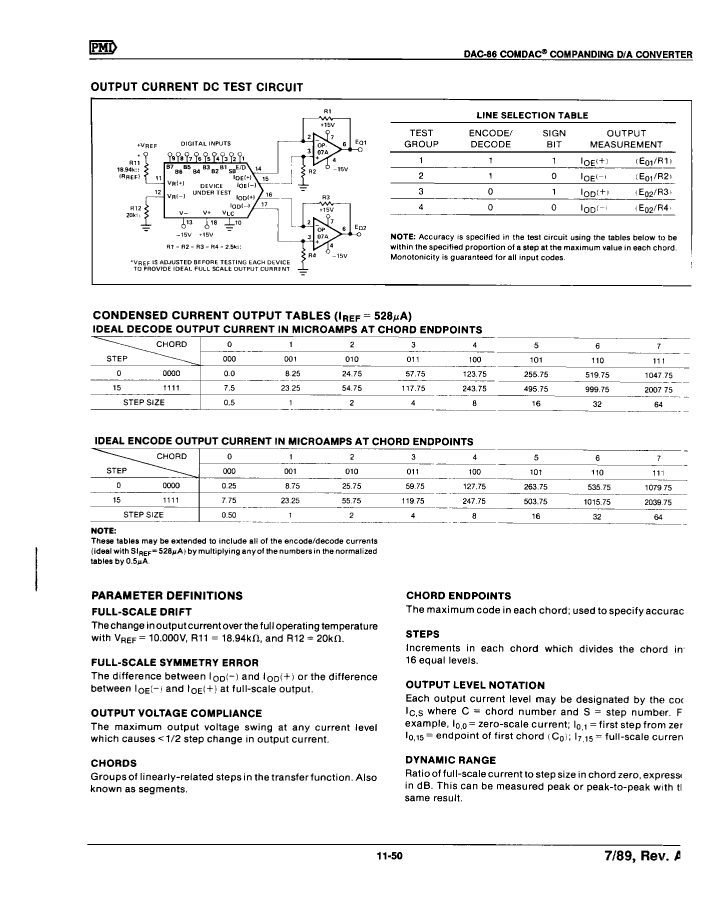

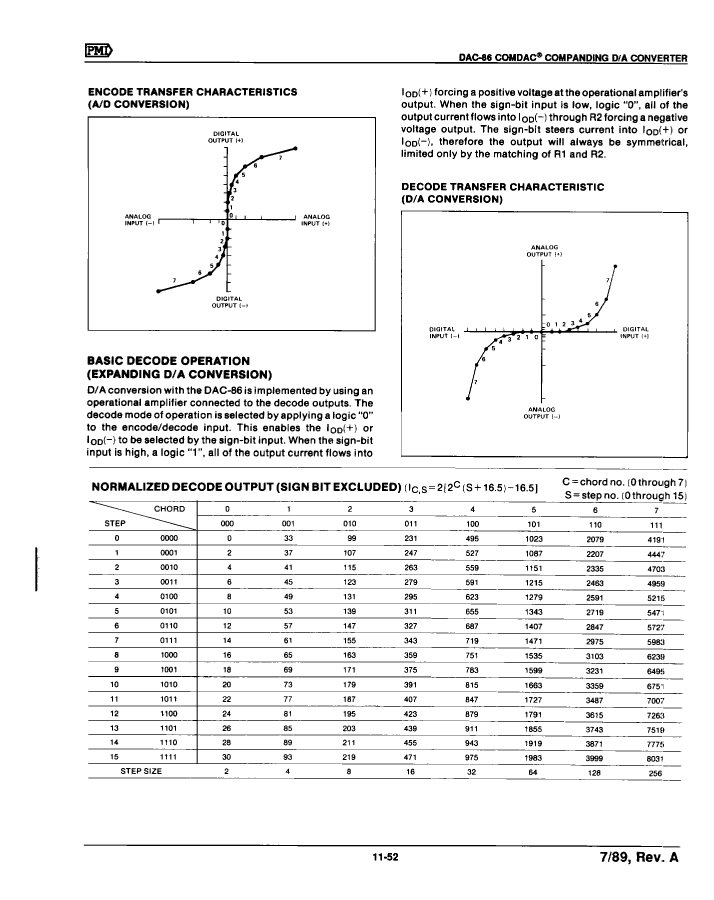

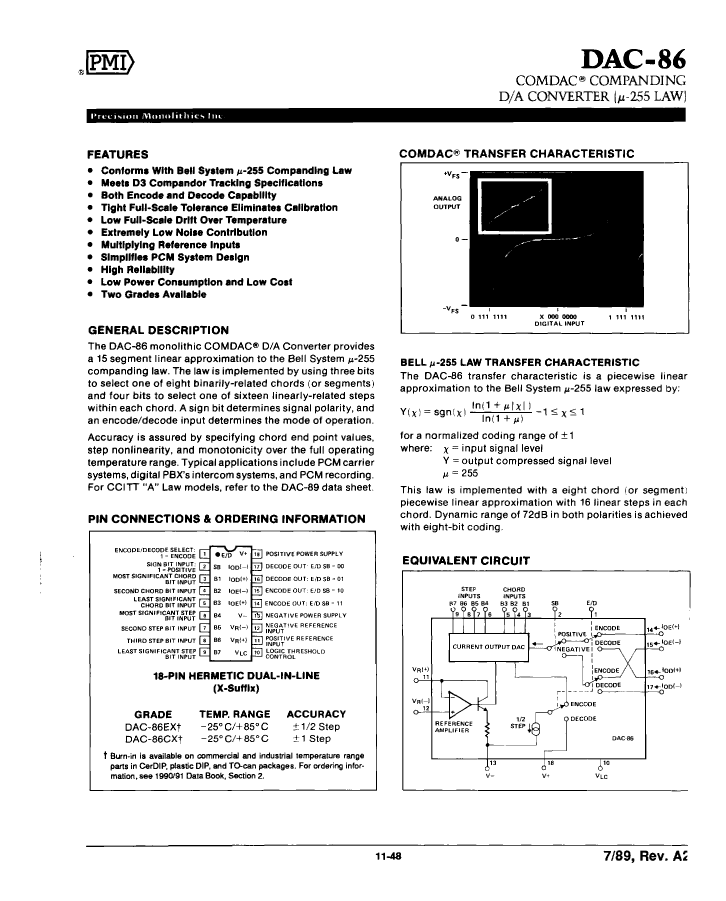

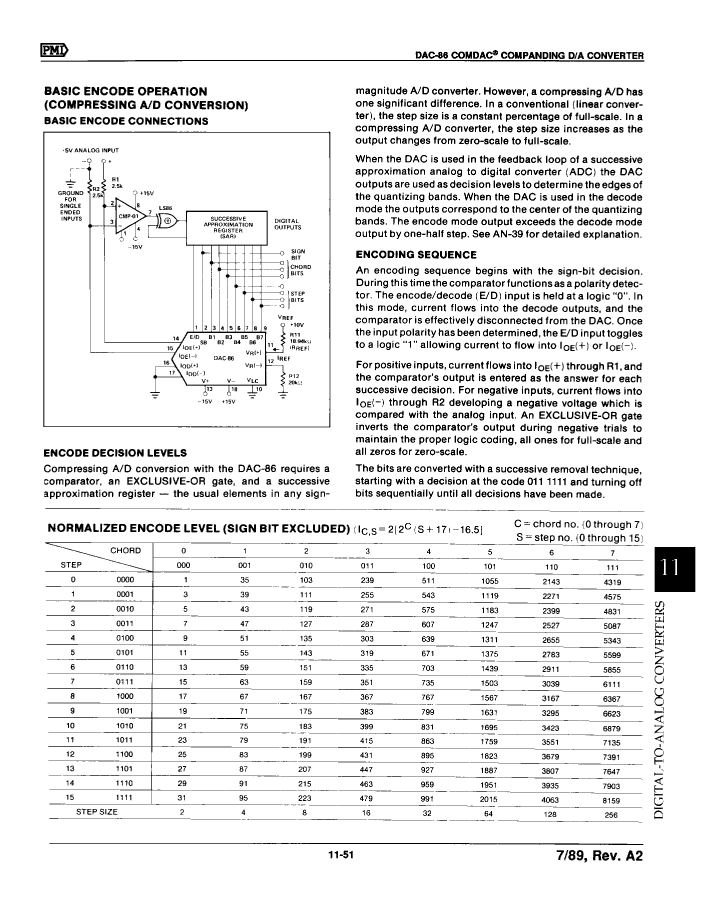

Preview

Download Datasheet

View All

DAC-86EX Related Products

	DAC-86EX	DAC-86CX
Description	IC PARALLEL, WORD INPUT LOADING, 1 us SETTLING TIME, 8-BIT DAC, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 1 us SETTLING TIME, 8-BIT DAC, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	HERMETIC SEALED, CERAMIC, DIP-18	HERMETIC SEALED, CERAMIC, DIP-18
Contacts	18	18
Reach Compliance Code	not_compliant	not_compliant
Maximum analog output voltage	18 V	18 V
Minimum analog output voltage	-5 V	-5 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-GDIP-T18	R-GDIP-T18
JESD-609 code	e0	e0
Nominal negative supply voltage	-15 V	-15 V
Number of digits	8	8
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Nominal settling time (tstl)	1 µs	1 µs
Maximum slew rate	9.3 mA	9.3 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
Base Number Matches	1	1
