FLP2FV1.5-SUR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> FLP2FV1.5-SUR

FLP2FV1.5-SUR: DescriptionOptical Pipe,; CategoryLED optoelectronic/LED photoelectric; File Size382KB，3 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

FLP2FV1.5-SUR Overview

Optical Pipe,

FLP2FV1.5-SUR Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Optoelectronic device types	OPTICAL PIPE
Base Number Matches	1

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

FLPV2-XX

FLPF-XX.X

PART DESCRIPTION

Flexible LIght Pipe 2mm Adapter, Vertical w/ LED, See page 2

Light Pipe Lens Cap Assembly, 2mm Flat Face

REV.

DESCRIPTION

DATE

APPROVED

NOTE: FLPV2-XX ADAPTER SHIPPED NON-ASSEMBLED

0.090 [2.3mm]

0.039 [1.0mm]

0.166 [4.2mm]

REF.

0.166 [4.2mm]

0.391 [9.9mm]

TABLE 1

" L "*

Tolerance

SEE TABLE 1

Engineering Release

Replaced 3UWC-0.6K-F with 3UWC1.035C-F

Updated Table For Length "L"

Updated LED Optical Characteristics

Updated LED Tables

09/14/09

04/26/12

11/16/12

09/15/15

08/15/18

11/13/18

T. Y.

J. C.

M. C.

0.320 [8.1mm]

0.240 [6.1mm]

0.210 [5.3mm]

0.545 [13.8mm]

0.100 [2.5mm]

1.0" ~ 16.0"

16.1" ~ 40.0"

40.1" ~ 80.0"

80.1" ~ 3,940.0"

* Available in 0.1" increments only

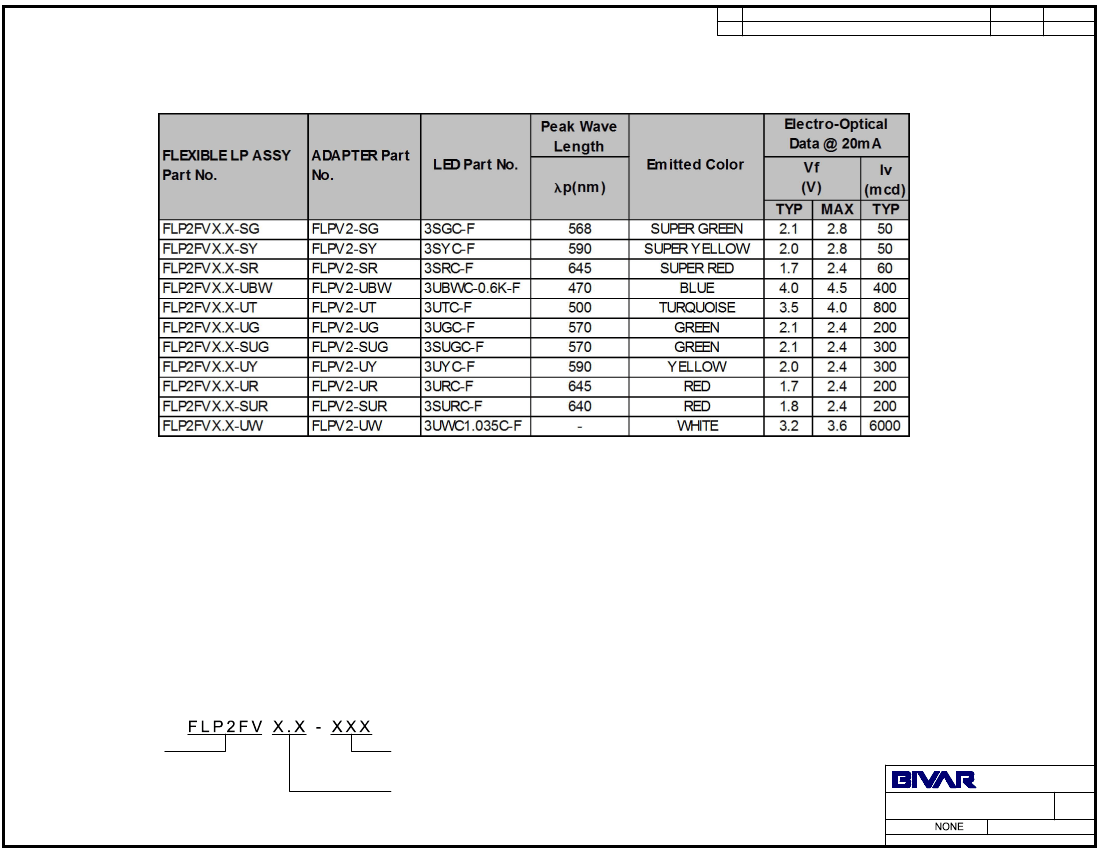

SINGLE COLOR LED

SHORT LEAD CATHODE

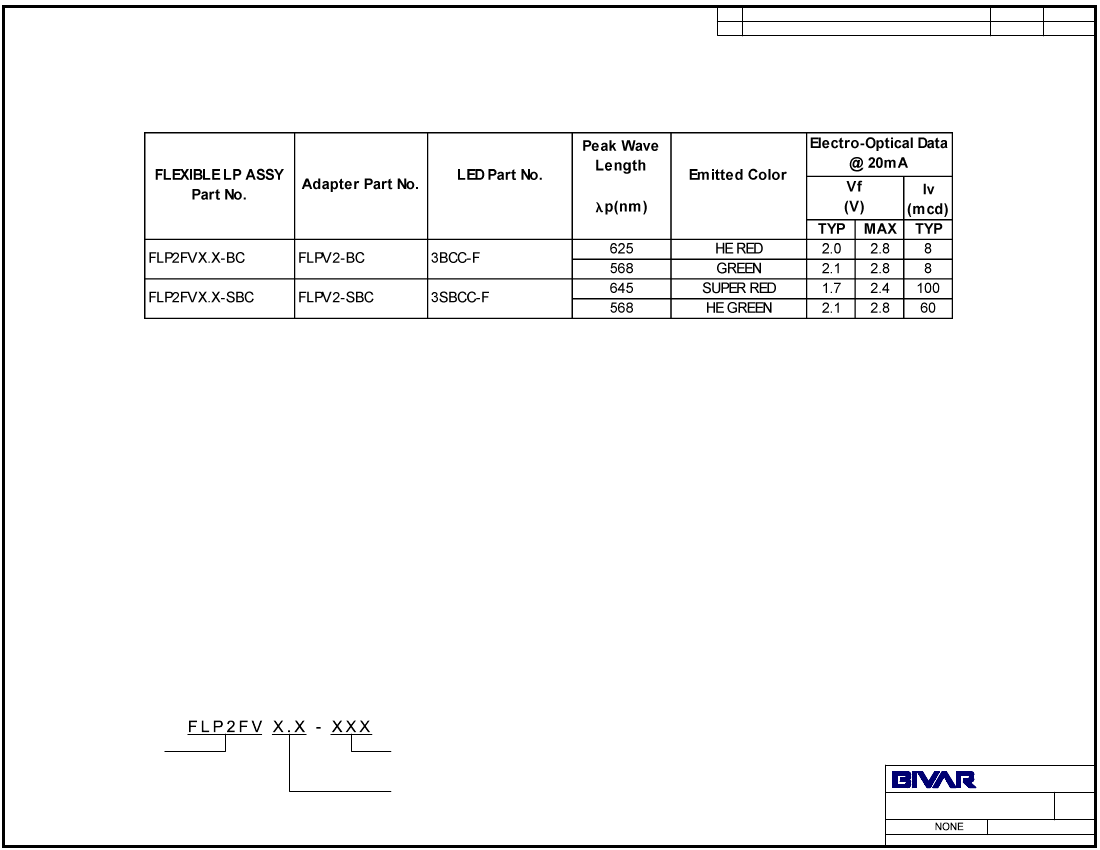

BI-COLOR LED'S

SHORT

LEAD

CATHODE

RED

YELLOW

LED

PART NO.

3xBCC-F

3BC-Y/G-F

LONG

LEAD

CATHODE

GREEN

+.003

-.002

+.003

-.002

0.100 [2.5mm]

Recommended Mounting Holes

RECOMMENDED FOOTPRINT

STANDARD TOLERANCE

(UNLESS OTHERWISE SPECIFIED)

DECIMALS

ANGULAR

4 THOMAS, IRVINE, CA. 92618

REVERSE VOLTAGE

REVERSE CURRENT

DESIGNED:

DATE:

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

PART NO:

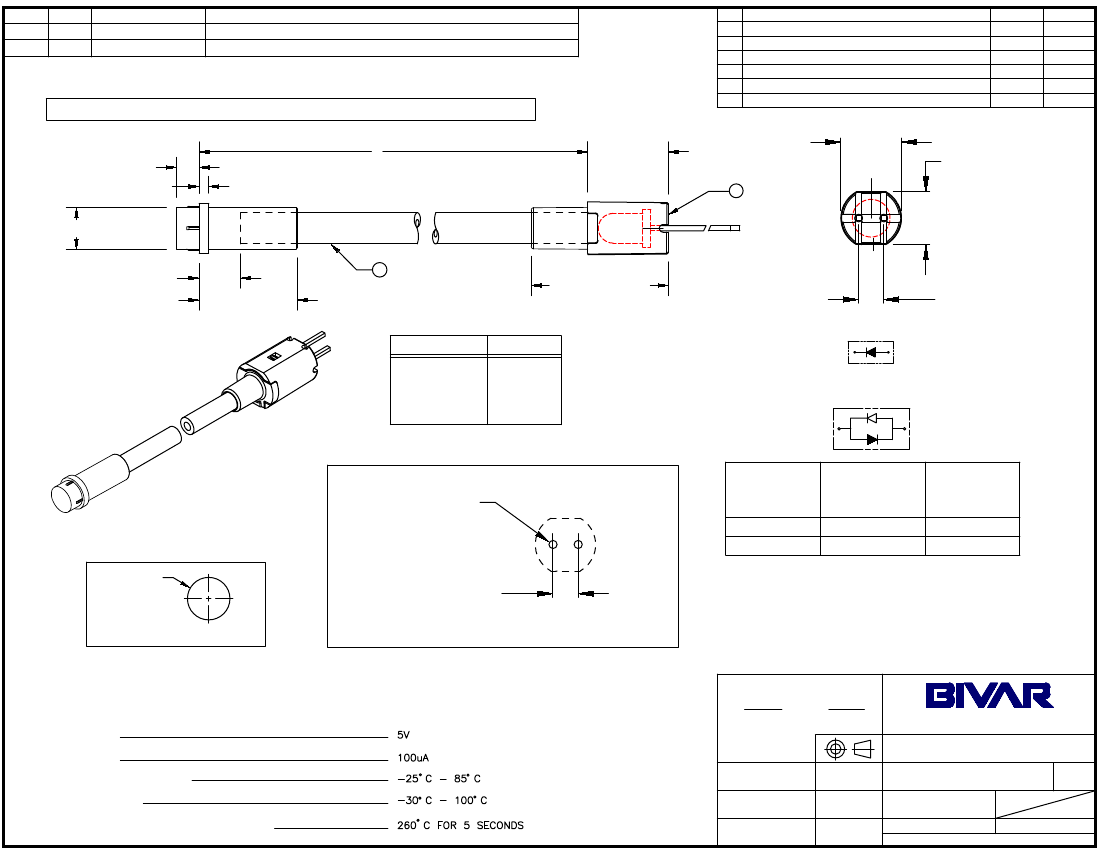

FLEXIBLE LIGHT PIPE ASSY,

FLAT FACE, VERTICAL

REVISION:

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

B. OLIVER

REVISED:

09/14/09

DATE:

FLP2FVX.X-XXX

CAGE CODE:

K. BARON

CHECKED:

11/13/18

DATE:

32559

SCALE:

TD. NGUYEN

11/13/18

NONE

SHEET # 1 OF

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING

FLP2FV1.5-SUR Related Products

	FLP2FV1.5-SUR	FLP2FV2.0-SUG	FLP2FV2.5-SUR
Description	Optical Pipe,	Optical Pipe,	Optical Pipe,
Reach Compliance Code	unknown	unknown	unknown
Optoelectronic device types	OPTICAL PIPE	OPTICAL PIPE	OPTICAL PIPE
Maker	-	Bivar	Bivar
