SA5.0 thru SA170CA
Vishay General Semiconductor
T
RANS
Z
ORB
®
Transient Voltage Suppressors
FEATURES
• Glass passivated chip junction
• Available in Unidirectional and Bidirectional
• 500 W peak pulse power capability with a
10/1000 µs waveform, repetitive rate (duty cycle):
0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Solder Dip 260 °C, 40 seconds
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage
transients induced by inductive load switching
and lighting on ICs, MOSFET, signal lines of sensor
units for consumer, computer, industrial and
telecommunication.
MECHANICAL DATA
Case:
DO-204AC, molded epoxy over passivated chip
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002B and JESD22-B102D
E3 suffix for commercial grade, HE3 suffix for high
reliability grade (AEC Q101 qualified)
Polarity:
For unidirectional types the color band
denotes cathode end, no marking on bidirectional
types
DO-204AC (DO-15)
MAJOR RATINGS AND CHARACTERISTICS
V
WM
P
PPM
P
D
I
FSM
(Unidirectional only)
T
j
max.
5.0 V to 170 V
500 W
3.0 W
70 A
175 °C
DEVICES FOR BIDIRECTION APPLICATIONS
For bidirectional types, use C or CA suffix
(e.g. SA5.0C, SA170CA).
Electrical characteristics apply in both directions.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Peak pulse power dissipation with a 10/1000 µs waveform
Peak pulse current with a 10/1000 µs waveform
(1)
(1)
(Fig.
SYMBOL
1)
P
PPM
I
PPM
P
D
I
FSM
V
F
T
J
, T
STG
VALUE
500 (min.)
See Next Table
3.0
70
3.5
- 55 to + 175
UNIT
W
A
W
A
V
°C
Power dissipation on infinite heatsink at T
A
= 75 °C (Fig. 5)
Peak forward surge current, 10ms single half sine-wave unidirectional only
Maximum instantaneous forward voltage at 35 A for unidirectional only
(2)
Operating junction and storage temperature range
Note:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25 °C per Fig. 2
(2) 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 per minute maximum
Document Number 88378
07-Jun-06
www.vishay.com
1
SA5.0 thru SA170CA
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
BREAKDOWN VOLTAGE
V
(BR)
AT I
T (1)
(V)
MIN
44.4
44.4
47.8
47.8
50.0
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
133
133
144
144
167
167
178
178
189
189
MAX
54.3
49.1
58.4
52.8
61.1
55.3
65.2
58.9
69.3
62.7
73.3
66.3
78.7
71.2
81.5
73.7
86.9
78.6
95.1
86.0
102
92.1
106
95.8
115
104
122
111
136
123
149
135
163
147
176
159
204
185
218
197
231
209
TEST
CURRENT
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
STAND-
OFF
VOLTAGE
V
WM
(V)
40
40
43
43
45
45
48
48
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
MAXIMUM
REVERSE
LEAKAGE
AT V
WM
I
D (3)
(µA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
PEAK
PULSE
CURRENT
I
PPM (2)
(A)
7.0
7.8
6.5
7.2
6.2
6.9
5.8
6.5
5.5
6.1
5.2
5.7
4.9
5.3
4.7
5.2
4.4
4.9
4.0
4.4
3.7
4.1
3.6
4.0
3.3
3.6
3.1
3.4
2.8
3.1
2.6
2.8
2.3
2.6
2.2
2.4
1.9
2.1
1.7
1.9
1.6
1.8
MAXIMUM
CLAMPING
VOLTAGE
AT I
PPM
V
C
(V)
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103
93.6
107
96.8
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
214
193
230
209
268
243
257
259
304
275
MAXIMUM
TEMPERATURE
COEFFICIENT
OF V
(BR)
(mV/°C)
51
46
55
50
58
52
63
56
66
61
71
65
78
70
80
71
86
76
94
85
101
91
105
95
114
103
121
110
135
123
148
133
162
146
175
158
203
184
217
196
230
208
DEVICE
TYPE
SA40
SA40A
SA43
SA43A
SA45
SA45A
SA48
SA48A
SA51
SA51A
SA54
SA54A
SA58
SA58A
SA60
SA60A
SA64
SA64A
SA70
SA70A
SA75
SA75A
SA78
SA78A
SA85
SA85A
SA90
SA90A
SA100
SA100A
SA110
SA110A
SA120
SA120A
SA130
SA130A
SA150
SA150A
SA160
SA160A
SA170
SA170A
Note:
(1) Pulse test: t
p
≤
50 ms
(2) Surge current waveform per Fig. 3 and derate per Fig. 2
(3) For bidirectional types with V
WM
of 10 volts and less, the I
D
limit is doubled
(4) For the bidirectional SA5.0CA, the maximum V
BR
is 7.25 V
(5) All terms and symbols are consistent with ANSI/IEEE C62.35
Document Number 88378
07-Jun-06
www.vishay.com
3
SA5.0 thru SA170CA
Vishay General Semiconductor
ORDERING INFORMATION
PREFERRED P/N
SA5.0A-E3/54
UNIT WEIGHT (g)
0.432
PREFERRED PACKAGE CODE
54
BASE QUANTITY
4000
DELIVERY MODE
13" Diameter Paper Tape & Reel

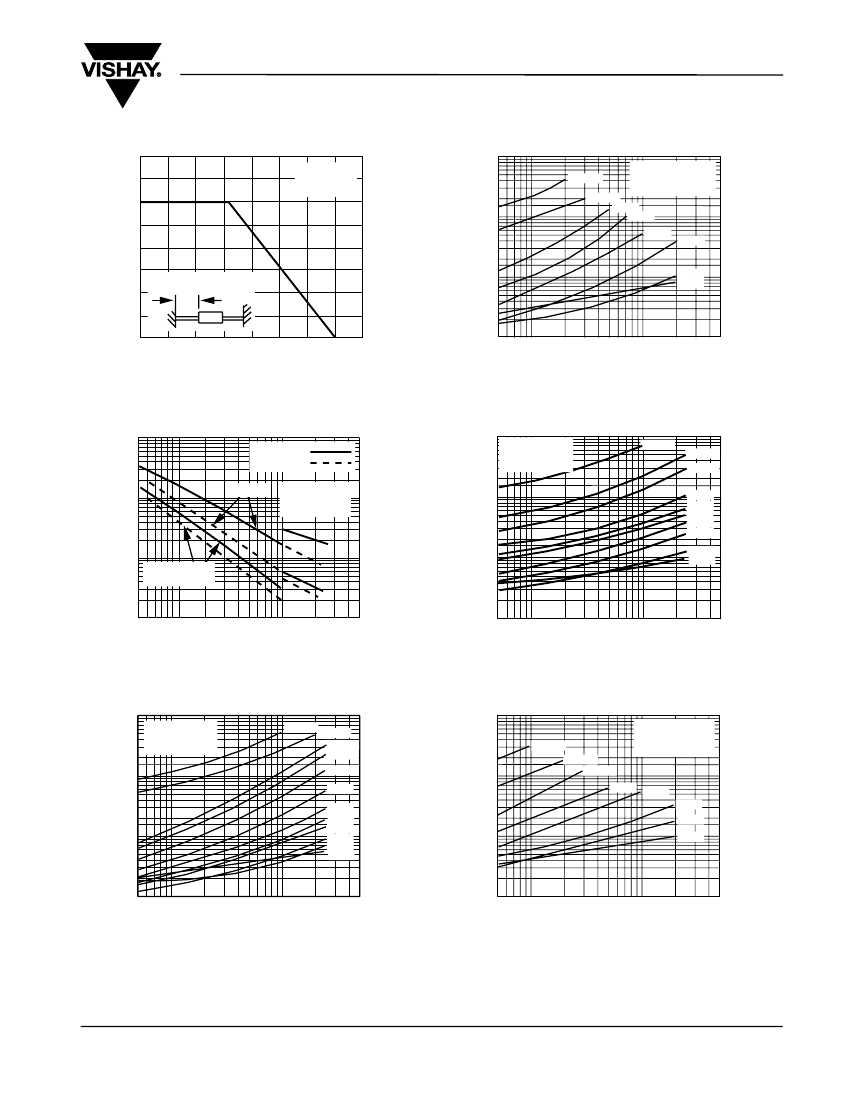

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
30
150
Non-repetitive
Pulse
Waveform
shown in Fig. 3
T
A
= 25 °C
tr = 10
µsec
T
J
= 25 °C
Pulse
Width
(td)
is defined as the point
where
the peak current
decays to 50
%
of I
PPM
P
PPM -
Peak Pulse Power (kW)
I
PPM
- Peak Pulse Current,
%
I
RSM
10
Peak
Value
I
PPM
100
Half
Value
- I
PP
2
I
PPM
P
PK
".5"
t
d
Impulse
Exponential
Decay
Half Sine
t
d
t
d
= 7 tp
1.0
P
PK
50
10/1000
µsec Waveform
as defined
by
R.E.A.
P
PK
Square
t
d
Current
Waveforms
td
0
10
µs
100
µs
1.0 ms
10 ms
0
1.0
2.0
3.0
4.0
0.1
0.1
µs
1.0
µs
td - Pulse
Width
t - Time (ms)
Figure 1. Peak Pulse Power Rating Curve
Figure 3. Pulse Waveform
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage,
%
I
FSM -
Peak Forward Surge Current (A)
100
200
8.3
ms Single Half Sine-Wave
100
75
50
25
0
0
25
50
75
100
125
150
175
200
10
1
10
100
T
J
- Initial Temperature (°C)
Number
of Cycles at 60 Hz
Figure 2. Pulse Derating Curve
Figure 4. Maximum Non-Repetitive Forward Surge Current
Uni-Directional Only
www.vishay.com
4
Document Number 88378
07-Jun-06
