NJM2533V-(T2)

Description
Audio/Video Switch, PDSO8, SSOP-8
CategoryAnalog mixed-signal IC    The signal circuit
File Size52KB,3 Pages
ManufacturerNew Japan Radio Co., Ltd..
Download Datasheet Parametric Compare View All

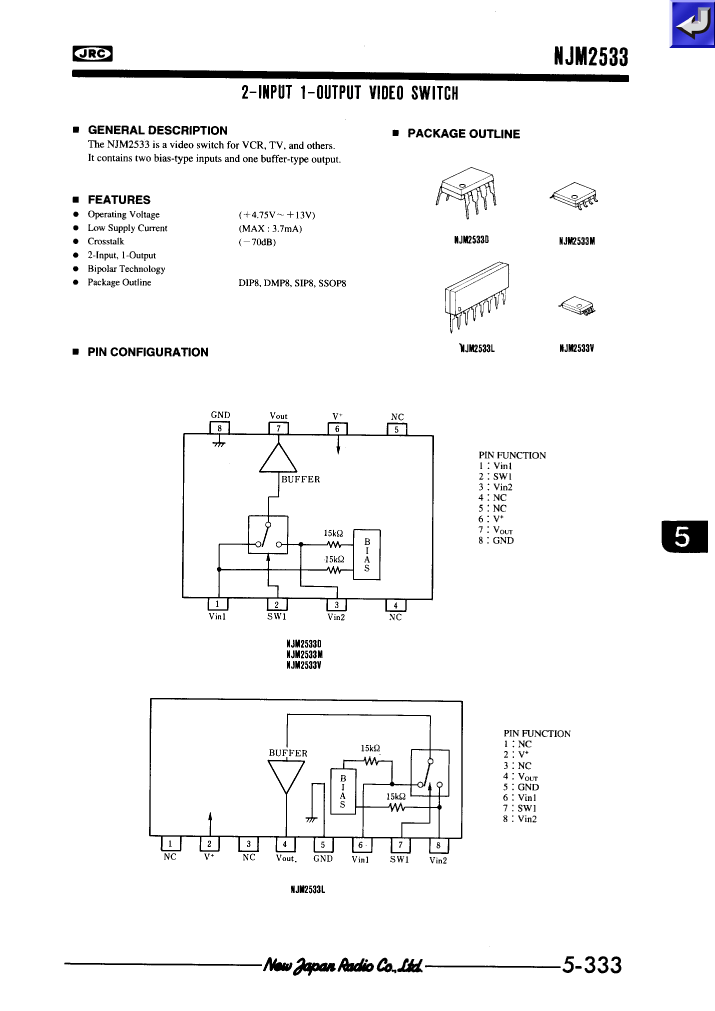

NJM2533V-(T2) Overview

Audio/Video Switch, PDSO8, SSOP-8

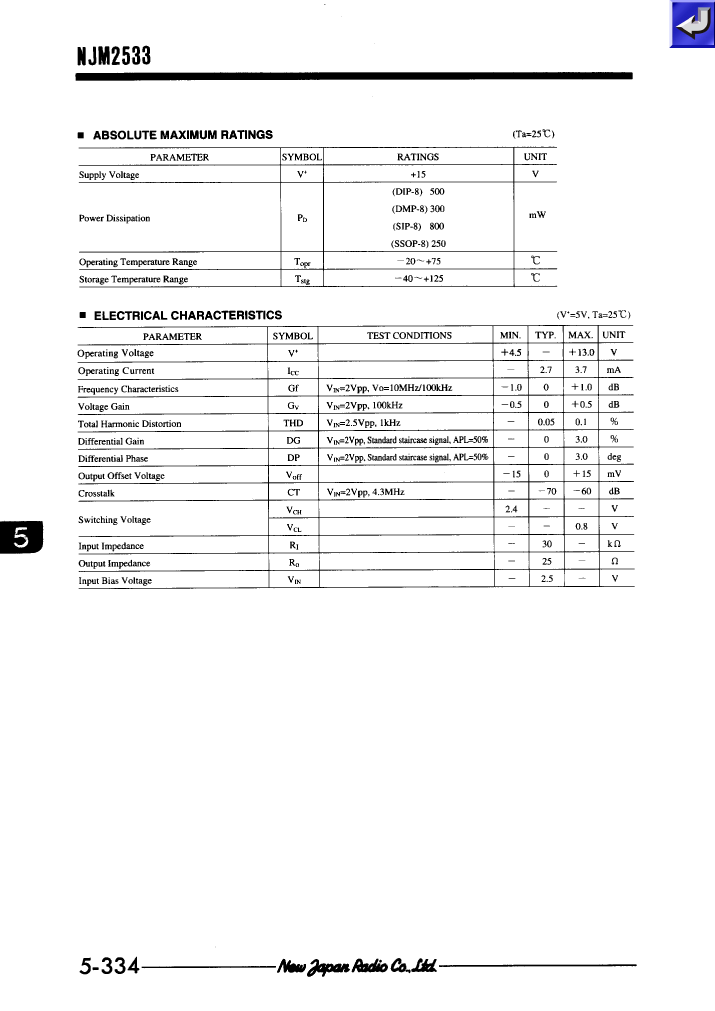

NJM2533V-(T2) Parametric

Parameter NameAttribute value
Parts packaging codeSOIC
package instructionLSSOP,
Contacts8
Reach Compliance Codecompliant
Analog Integrated Circuits - Other TypesAUDIO/VIDEO SWITCH
JESD-30 codeR-PDSO-G8
JESD-609 codee6
length4.4 mm
Number of terminals8
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification statusNot Qualified
Maximum seat height1.45 mm
surface mountYES
Terminal surfaceTIN BISMUTH
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width3.5 mm
Base Number Matches1

NJM2533V-(T2) Related Products

NJM2533V-(T2) NJM2533V-(T1)
Description Audio/Video Switch, PDSO8, SSOP-8 Audio/Video Switch, PDSO8, SSOP-8
Parts packaging code SOIC SOIC
package instruction LSSOP, LSSOP,
Contacts 8 8
Reach Compliance Code compliant compliant
Analog Integrated Circuits - Other Types AUDIO/VIDEO SWITCH AUDIO/VIDEO SWITCH
JESD-30 code R-PDSO-G8 R-PDSO-G8
JESD-609 code e6 e6
length 4.4 mm 4.4 mm
Number of terminals 8 8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code LSSOP LSSOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, LOW PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status Not Qualified Not Qualified
Maximum seat height 1.45 mm 1.45 mm
surface mount YES YES
Terminal surface TIN BISMUTH TIN BISMUTH
Terminal form GULL WING GULL WING
Terminal pitch 0.65 mm 0.65 mm
Terminal location DUAL DUAL
width 3.5 mm 3.5 mm
