5-1318157-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-1318157-8

5-1318157-8: DescriptionCONNECTOR, 200 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1318157-8 Overview

CONNECTOR, 200 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

5-1318157-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1318157
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	200
Base Number Matches	1

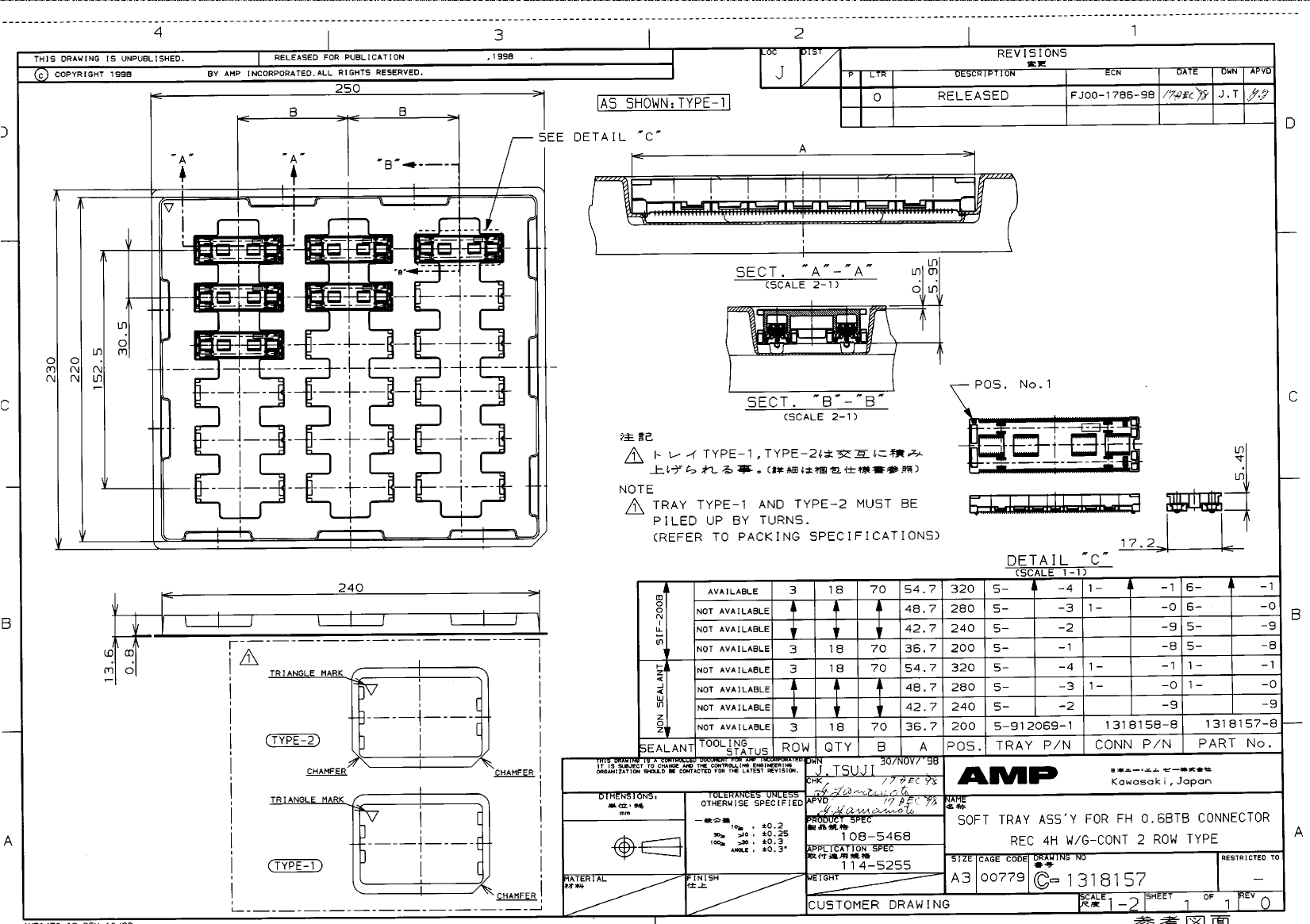

Preview

Download Datasheet

View All

5-1318157-8 Related Products

	5-1318157-8	1318157-8	GRM1885C2A2R9BA01	ATS-12E-125-C2-R0	1-1318157-0	1-1318157-1	6-1318157-0
Description	CONNECTOR, 200 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	CONNECTOR, 200 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	Chip Multilayer Ceramic Capacitors for General Purpose	pushPIN™ HS ASMBLY,COARSE-PITCH,XCUT, HOLE PATTERN:4-CORNER,BLUE,T766	CONNECTOR, 280 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	CONNECTOR, 320 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	CONNECTOR, 280 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
Reach Compliance Code	unknow	unknow	-	-	unknow	unknow	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-	-	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	FEMALE	FEMALE	-	-	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	-	-	NO	NO	NO
Filter function	NO	NO	-	-	NO	NO	NO
IEC compliance	NO	NO	-	-	NO	NO	NO
MIL compliance	NO	NO	-	-	NO	NO	NO
Manufacturer's serial number	1318157	1318157	-	-	1318157	1318157	1318157
Mixed contacts	NO	NO	-	-	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	-	BOARD	BOARD	BOARD
Number of rows loaded	2	2	-	-	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	200	200	-	-	280	320	280
Base Number Matches	1	1	-	-	1	1	-
