361 Series SMP
Sub-Miniature RF Connectors
Product Description

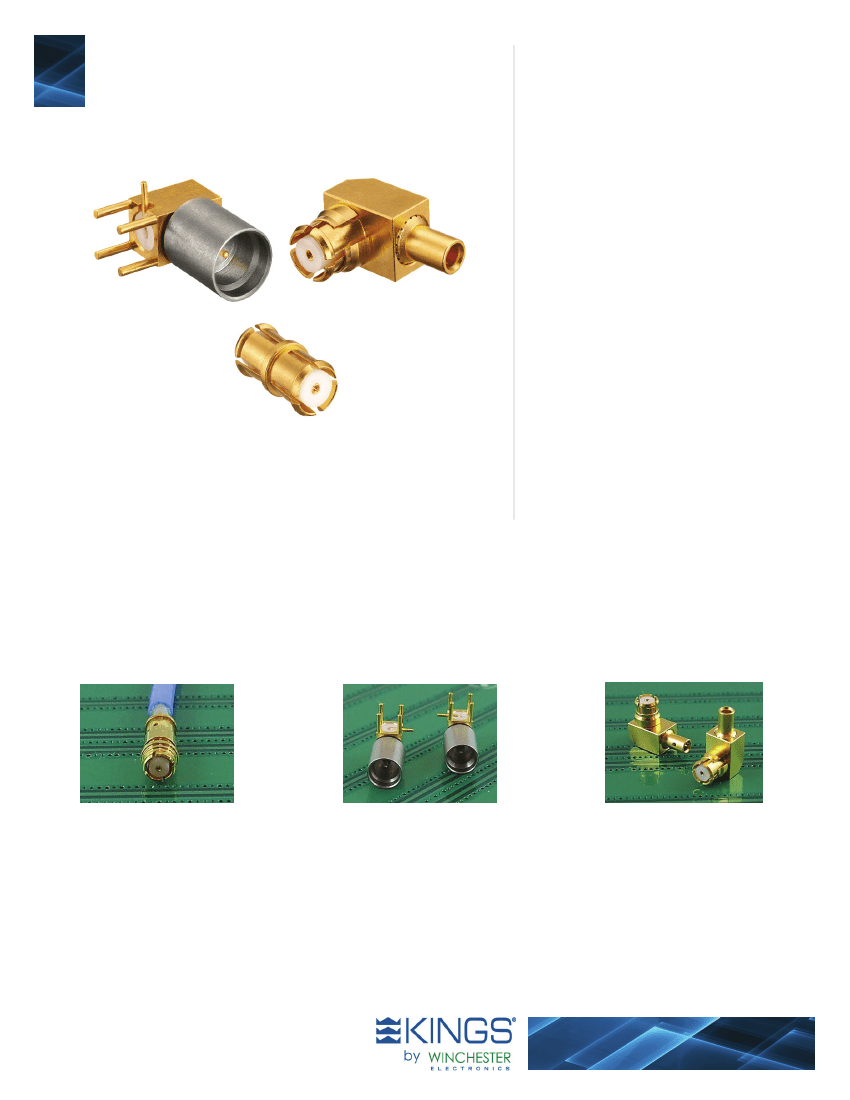

The 361 Series SMP connectors feature
a blind-mate, snap-in, vibration-resistant
connection, constructed for high shock
mobile and military applications. The
frequency range is 40 GHz with low VSWR.
The push-on design allows the installer to
mate connectors without the need for any
tooling.
The extremely compact size allows for
high density applications and, combined
with the withdrawal features of the full
detent design, the SMP series has
become a standard for quick and effective
interconnects using semi-rigid cable to
printed circuit boards.
The Winchester SMP connector is
designed to meet the requirements of
MIL-STD-348, figure 326 interface standard
and DESC specifications 94007 & 94008.
They are fully intermateable with all
manufacturers who comply with these
industry standards.
• Straight cable plugs feature a
solder / solder termination
method. The center contact is
precision machined Beryllium
Copper and the contact
gender is female.
• Right-angle PCB Jacks have
4 through-hole mounting legs
with either a left or right exit
SMT center contact. PCB
Jacks are available in smooth
bore and full detent versions.
The gender of the center
contact is a male pin.
• Winchester offers higher
performing swept right-angle
connector designs for your
critical applications.
CONNECTING INNOVATION TO APPLICATION
®
Specifications
Electrical
Impedance:
Frequency Range:
VSWR:
Insulation Resistance:
Voltage Rating:
50 Ohms
DC to 40 GHz
1.20 Max to 18 GHz
1.35 Max 18 to 26.5 GHz
1.70 Max 26.5 to 40 GHz
5000 Megohms Min
335 VRMS
Material
Body:
Male Contacts:
Female Contacts:
Insulators:
Ferrule:
Brass per ASTM B16
Brass per ASTM B16
Beryllium Copper per
ASTM B196
PTFE per ASTM D1710
Bronze or Brass Alloy
Mechanical
Durability:
Full Detent
100 Cycles
Limited Detent 500 Cycles
Smooth Bore 1000 Cycles
Retention
5 lbs. Min
2 lbs. Min
0.5 lbs. Min
Finishes
Center Contacts:
Gold over Nickel
All Other Components: Gold or Nickel Plated to meet
the corrosion requirements of
MIL-PRF-39012
Mating Characteristics:
Engagement Force
Full Detent
15 lbs. Max
Limited Detent
10 lbs. Max
Smooth Bore
2 lbs. Max
Misalignment:
Radial
+/-0.010in.
Axial
0.000/0.010 in.
Environmental
Temperature Rating:
-65ºC to +165ºC
Corrosion Resistance: MIL-STD-202
Method 101, Cond B
Vibration:
MIL-STD-202
Method 204, Cond D
Shock:
MIL-STD-202,
Method 107, Cond B
(except high temp to be
+165ºC or max high temp
of cable.)
Part Numbers
KINGS
®
Part Number
3616-300-04701H
3615-500-08501H
3619-361-00001H
361C-040-00701P
361C-040-00702P
361C-040-00703P
361C-040-00704P
Description
Swept Right-Angle Plug
Straight Plug
Plug-to-Plug Adapter
Right-Angle PCB Jack w/4 Legs, Smooth Bore,
Left Exit Contact
Right-Angle PCB Jack w/4 Legs, Smooth Bore,
Right Exit Contact
Right-Angle PCB Jack w/4 Legs,
Full Detent, Left Exit Contact
Right-Angle PCB Jack w/4 Legs,
Full Detent, Right Exit Contact
Cable Size
0.047 Semi-Rigid
RG-405 (0.085)
n/a
n/a
n/a
n/a
n/a
Winchester Electronics
199 Park Road Extension, Suite 104
Middlebury, Connecticut 06762
203.741.5400
Phone
203.741.5500
Fax
www.winchesterelectronics.com
January 2014
