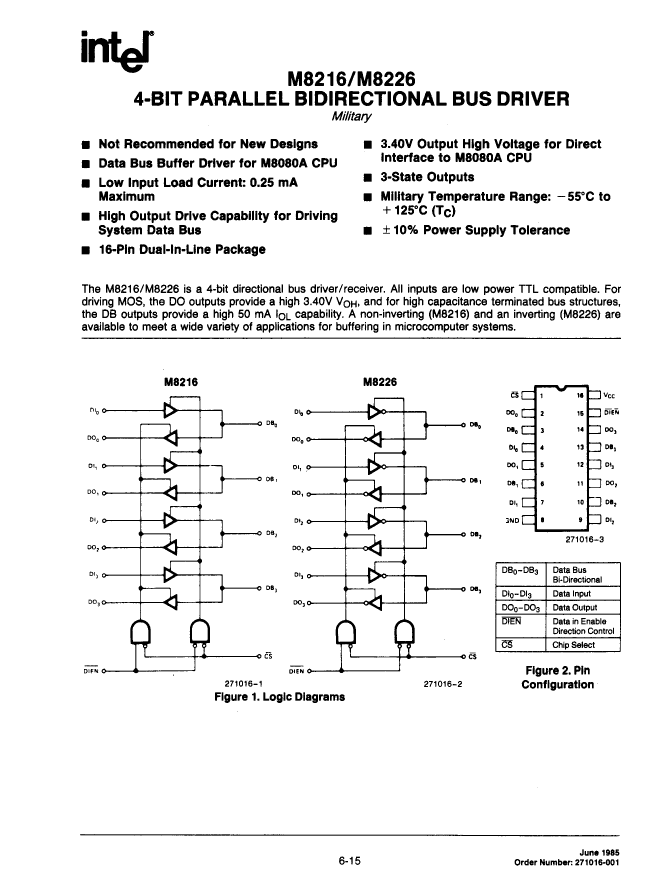

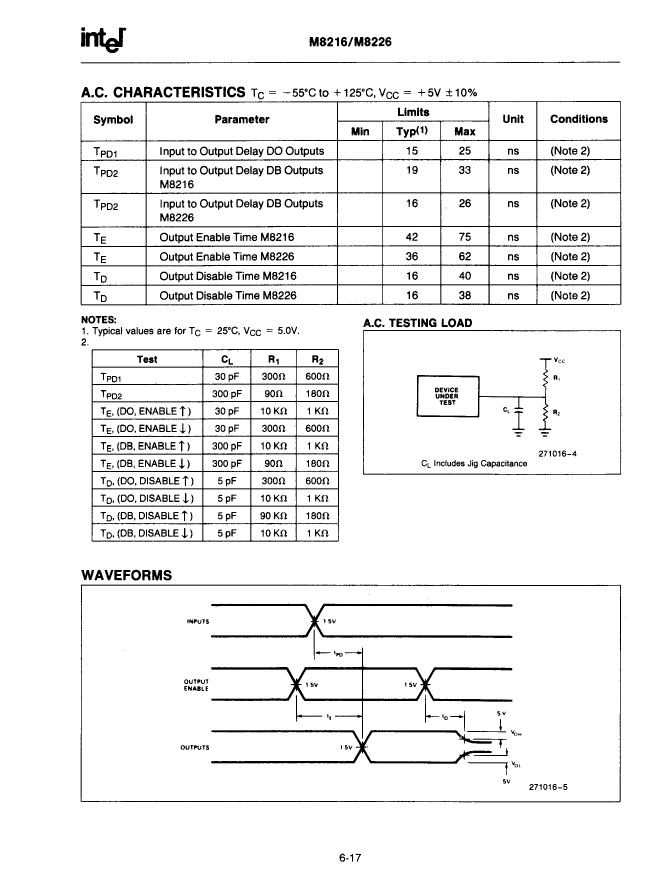

5962-01-037-7672: DescriptionBus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP16; Categorylogic logic; File Size97KB，2 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

5962-01-037-7672 Overview

Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP16

5962-01-037-7672 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	compli
Control type	COMMON CONTROL
Counting direction	UNIDIRECTIONAL
JESD-30 code	R-PDIP-T16
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
translate	N/A
Base Number Matches	1

Preview

Download Datasheet

View All

5962-01-037-7672 Related Products

	5962-01-037-7672	5962-01-213-6516	MD8216	MD8216/B	MD8216/C	MD8226	ID8226	MD8226/B	MD8226/C	5962-01-254-2668
Description	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, PDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, TTL, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compli	compli	unknown	unknown	unknown	compliant	unknown	compliant	compliant	compli
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	INVERTED	INVERTED	INVERTED	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Maker	-	-	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
JESD-609 code	-	-	e0	e0	e0	e0	e0	e0	e0	-
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
