Interrupt function: 8 internal interrupts and 3 external
interrupts
Micro Direct Memory Access (DMA) function (4 channels)
Watchdog timer
Standby function (4 HALT modes)
The information contained here is subject to change without notice.
The information contained herein is presented only as guide for the applications of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties
which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of TOSHIBA or others. These TOSHIBA products are intended for usage in general electronic
equipments (office equipment, communication equipment, measuring equipment, domestic electrification, etc.) Please make sure that you consult with us before you use these TOSHIBA products in equip-
ments which require high quality and/or reliability, and in equipments which could have major impact to the welfare of human life (atomic energy control, spaceship, traffic signal, combustion control, all types
of safety devices, etc.). TOSHIBA cannot accept liability to any damage which may occur in case these TOSHIBA products were used in the mentioned equipments without prior consultation with TOSHIBA.
TOSHIBA CORPORATION
1/12
TMP90CH02/H03

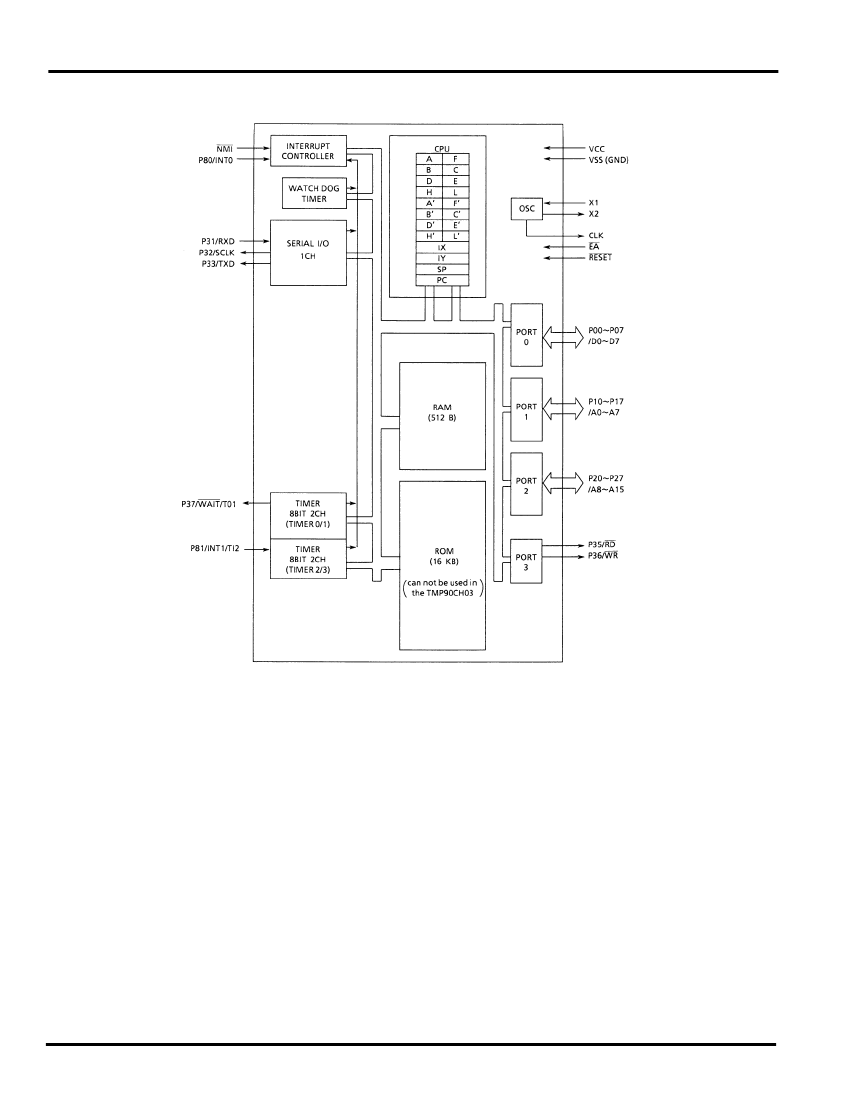

Figure 1. TMP90CH02 Block Diagram
2/12
TOSHIBA CORPORATION
TMP90CH02/H03
2. Pin Assignment and Functions
The assignment of input/output pins, their names and functions
are described below.
2.1 Pin Assignment

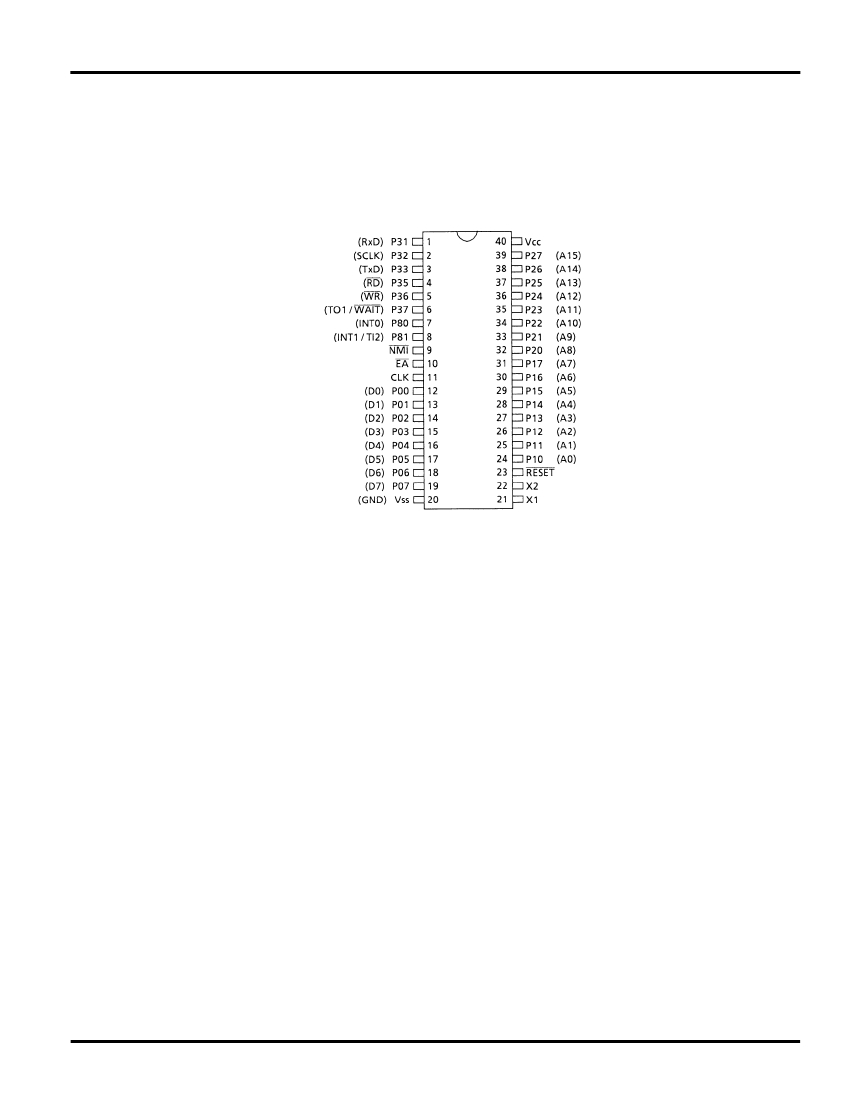

Figure 2.1 (1) shows pin assignment of the TMP90CH02/
