M58WR016KU M58WR016KL
M58WR032KU M58WR032KL
16- or 32-Mbit (×16, Mux I/O, Multiple Bank, Burst)
1.8 V supply Flash memories
Data Brief
Features
■
Supply voltage
– V
DD
= 1.7 V to 2 V for Program, Erase and
Read
– V
DDQ
= 1.7 V to 2 V for I/O buffers
– V
PP
= 9 V for fast Program
Multiplexed address/data
Synchronous / Asynchronous Read
– Synchronous Burst Read mode: 86 MHz
– Random access: 60 ns, 70 ns
Synchronous Burst Read Suspend
Programming time
– 10 µs by word typical for Factory Program
– Double/Quadruple Word Program option
– Enhanced Factory Program options
Memory blocks
– Multiple Bank memory array: 4 Mbit Banks
– Parameter Blocks (top or bottom location)
Dual operations
– Program Erase in one Bank while Read in
others
– No delay between Read and Write
operations
Block locking
– All blocks locked at Power up
– Any combination of blocks can be locked
– WP for Block Lock-Down
Security
– 128 bit user programmable OTP cells
– 64 bit unique device number
Common Flash Interface (CFI)
100 000 program/erase cycles per block
■
■
FBGA
■
■
VFBGA44 (ZA)
7.5 × 5 mm
■
■
■
Electronic signature
– Manufacturer Code: 20h
– Top device code,
M58WR016KU: 8823h
M58WR032KU: 8828h
– Bottom device code,
M58WR016KL: 8824h
M58WR032KL: 8829h
ECOPACK® packages available
■
■
■
■
■
January 2007
Rev 1
1/10
www.st.com
10
For further information contact your local STMicroelectronics sales office.
Description
M58WRxxxKU, M58WRxxxKL
1
Description
The M58WR016KU/L and M58WR032KU/L are 16-Mbit (1 Mbit ×16) and 32- Mbit (2 Mbit
×16) non-volatile Flash memories, respectively. In the rest of the document, they will be
referred to as M58WRxxxKU/L unless otherwise specified.
The M58WRxxxKU/L may be erased electrically at block level and programmed in-system
on a word-by-word basis using a 1.7 V to 2 V V
DD
supply for the circuitry and a 1.7 V to 2 V
V
DDQ
supply for the Input/Output pins. An optional 9 V V
PP
power supply is provided to
speed up customer programming.
The first sixteen address lines are multiplexed with the Data Input/Output signals on the
multiplexed address/data bus ADQ0-ADQ15. The remaining address lines, A16-Amax, are
the Most Significant Bit addresses.
The device features an asymmetrical block architecture:
●
the M58WR016KU/L have an array of 39 blocks, and are divided into 4 Mbit banks.
There are 3 banks each containing 8 main blocks of 32 KWords, and one parameter
bank containing 8 parameter blocks of 4 KWords and 7 main blocks of 32 KWords.
the M58WR032KU/L have an array of 71 blocks, and are divided into 4 Mbit banks.
There are 7 banks each containing 8 main blocks of 32 KWords, and one parameter
bank containing 8 parameter blocks of 4 KWords and 7 main blocks of 32 KWords
●
The Multiple Bank Architecture allows Dual Operations, while programming or erasing in
one bank, Read operations are possible in other banks. Only one bank at a time is allowed
to be in Program or Erase mode. It is possible to perform burst reads that cross bank
boundaries. The Parameter Blocks are located at the top of the memory address space for
the M58WR016KU and M58WR032KU, and at the bottom for the M58WR016KL and
M58WR032KL.
Each block can be erased separately. Erase can be suspended, in order to perform program
in any other block, and then resumed. Program can be suspended to read data in any other
block and then resumed. Each block can be programmed and erased over 100 000 cycles
using the supply voltage V
DD
. There are two Enhanced Factory programming commands
available to speed up programming.
Program and Erase commands are written to the Command Interface of the memory. An
internal Program/Erase Controller takes care of the timings necessary for program and
erase operations. The end of a program or erase operation can be detected and any error
conditions identified in the Status Register. The command set required to control the
memory is consistent with JEDEC standards.
The device supports synchronous burst read and asynchronous read from all blocks of the
memory array; at power-up the device is configured for asynchronous read. In synchronous
burst mode, data is output on each clock cycle at frequencies of up to 86 MHz. The
synchronous burst read operation can be suspended and resumed.
2/10
M58WRxxxKU, M58WRxxxKL
Description
The device features an Automatic Standby mode. When the bus is inactive during
Asynchronous Read operations, the device automatically switches to the Automatic Standby
mode. In this condition the power consumption is reduced to the standby value I
DD4
and the
outputs are still driven.
The M58WRxxxKU/L features an instant, individual block locking scheme that allows any
block to be locked or unlocked with no latency, enabling instant code and data protection. All
blocks have three levels of protection. They can be locked and locked-down individually
preventing any accidental programming or erasure. There is an additional hardware
protection against program and erase. When V
PP
≤
V
PPLK
all blocks are protected against
program or erase. All blocks are locked at Power-Up.
The device includes a Protection Register to increase the protection of a system’s design.
The Protection Register is divided into two segments: a 64 bit segment containing a unique
device number written by ST, and a 128 bit segment One-Time-Programmable (OTP) by the
user. The user programmable segment can be permanently protected.
The memory is available in a VFBGA44 7.5 × 5 mm, 10 × 4 active ball array, 0.5 mm pitch
package. It is supplied with all the bits erased (set to ’1’).
3/10
Description
Figure 1.
Logic diagram
VDD VDDQ VPP
16
A16-Amax
(1)
W
E
G
RP
WP
L
K
M58WR016KU
M58WR016KL
M58WR032KU
M58WR032KL
M58WRxxxKU, M58WRxxxKL
ADQ0-ADQ15
WAIT
BINV
VSS
VSSQ
AI13849
1. Amax is equal to A19 in the M58WR016KU/L and, to A20 in the M58WR032KU/L.
Table 1.
Signal names
Function
Address inputs
Data Input/Outputs or Address Inputs, Command Inputs
Chip Enable
Output Enable
Write Enable
Reset/Power-down
Write Protect
Clock
Latch Enable
Wait
Bus Invert
Supply voltage
Supply voltage for input/output buffers
Optional supply voltage for fast Program & Erase
Ground
Ground input/output supply
Not connected internally
Direction
Inputs
I/O
Input
Input
Input
Input
Input
Input
Input
Output
Input
Signal name
A16-Amax
(1)
ADQ0-ADQ15
E
G
W
RP
WP
K
L
WAIT
BINV
V
DD
V
DDQ
V
PP
V
SS
V
SSQ
NC
1. Amax is equal to A19 in the M58WR016KU/L and, to A20 in the M58WR032KU/L.
4/10
Figure 2.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
M58WRxxxKU, M58WRxxxKL
A
NC
NC
B
C
NC
VSS
K
A19
VDD
W
VPP
A17
WAIT
NC
D
A16
A18
L
BINV
RP
WP
VDDQ
A20/
NC
(1)
E
VSSQ
E
VSS
ADQ7
ADQ6
ADQ13
ADQ3
ADQ12
ADQ2
ADQ9
ADQ8
G

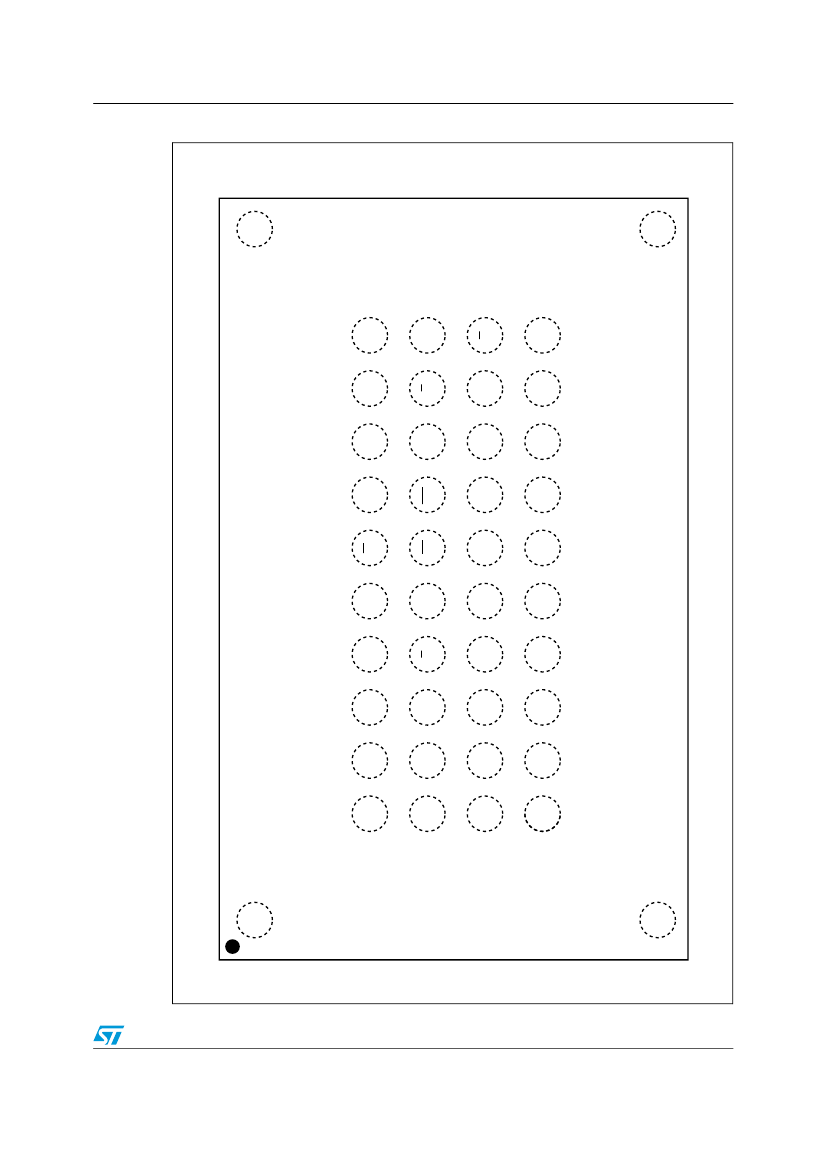

VFBGA44 connections (top view through package)
F
ADQ15
ADQ14
VSSQ
ADQ5
ADQ4
ADQ11
ADQ10
VDDQ
ADQ1
ADQ0
G
H
NC
NC
Description
5/10
Note1: Ball D5 is A20 in the M58WR032KU/L, it is Not Connected internally (NC) in the M58WR016KU/L.
AI13848
