MXO50801KSHS10MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MXO50801KSHS10MHZ

MXO50801KSHS10MHZ: DescriptionHCMOS Output Clock Oscillator, 10MHz Nom; CategoryPassive components oscillator; File Size50KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

MXO50801KSHS10MHZ Overview

HCMOS Output Clock Oscillator, 10MHz Nom

MXO50801KSHS10MHZ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SC CUT CRYSTAL
Ageing	0.05 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.01%
input power	1.25 W
Manufacturer's serial number	MXO5080
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Oven power supply voltage	5V
physical size	26.16mm x 26.16mm x 11.94mm
Nominal supply voltage	5 V
surface mount	YES
Preheating power	4 W
Maximum warm-up time	2 Minute
Base Number Matches	1

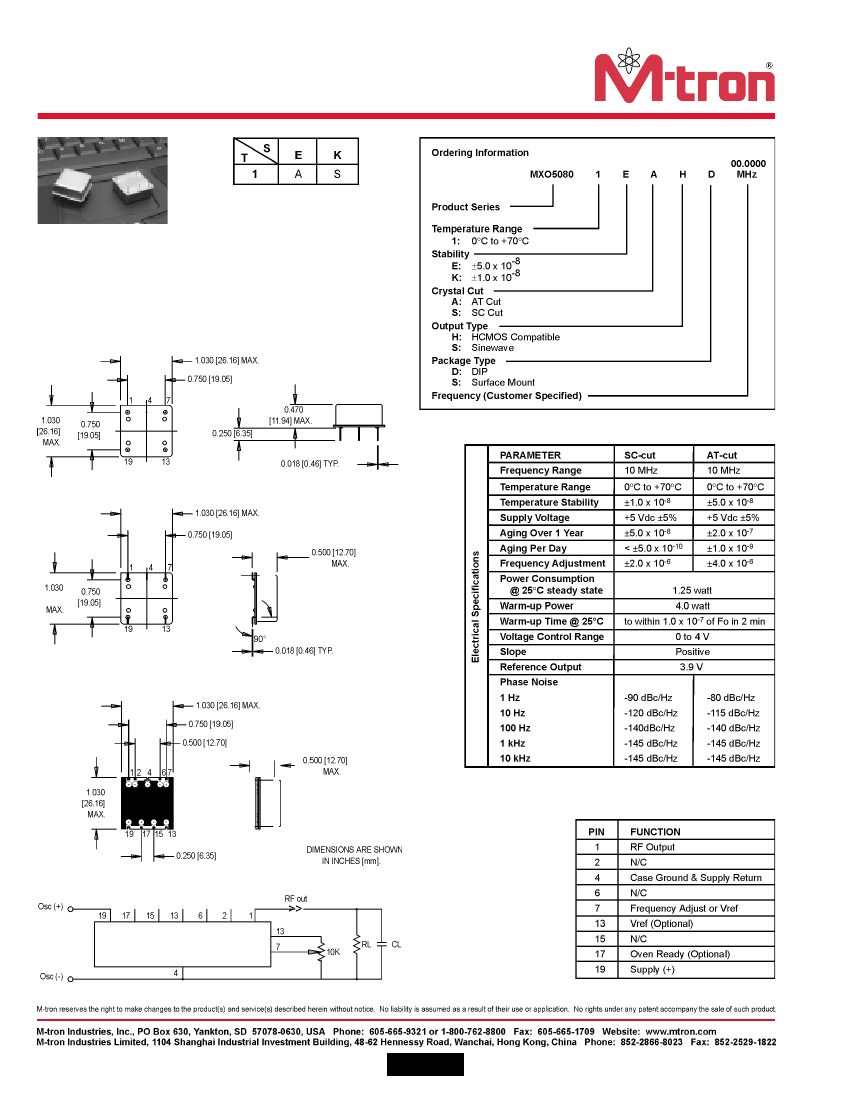

Preview

Download Datasheet

View All

MXO5080 Series

1x1 in., 5.0 Volt, HCMOS/Sinewave, OCXO

A = AT Cut

S = SC Cut

•

Surface mount package offering both AT and SC cut

crystals

Ideal for microwave radios (short haul), base stations, and

test equipment applications where size and package style

(SMT) are critical

Pin Connections

MXO50801KSHS10MHZ Related Products

	MXO50801KSHS10MHZ	MXO50801EAHD10MHZ	MXO50801EASD10MHZ	MXO50801EASS10MHZ	MXO50801KSSS10MHZ	MXO50801KSHD10MHZ	MXO50801KSSD10MHZ	MXO50801EAHS10MHZ
Description	HCMOS Output Clock Oscillator, 10MHz Nom	HCMOS Output Clock Oscillator, 10MHz Nom	Sine Output Oscillator, 10MHz Nom	Sine Output Oscillator, 10MHz Nom	Sine Output Oscillator, 10MHz Nom	HCMOS Output Clock Oscillator, 10MHz Nom	Sine Output Oscillator, 10MHz Nom	HCMOS Output Clock Oscillator, 10MHz Nom
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	0.05 PPM/FIRST YEAR	0.2 PPM/FIRST YEAR	0.2 PPM/FIRST YEAR	0.2 PPM/FIRST YEAR	0.05 PPM/FIRST YEAR	0.05 PPM/FIRST YEAR	0.05 PPM/FIRST YEAR	0.2 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	0.01%	0.05%	0.05%	0.05%	0.01%	0.01%	0.01%	0.05%
input power	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W
Manufacturer's serial number	MXO5080	MXO5080	MXO5080	MXO5080	MXO5080	MXO5080	MXO5080	MXO5080
Installation features	SURFACE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT
Nominal operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	HCMOS	HCMOS	SINE	SINE	SINE	HCMOS	SINE	HCMOS
Oven power supply voltage	5V	5V	5V	5V	5V	5V	5V	5V
physical size	26.16mm x 26.16mm x 11.94mm	26.16mm x 26.16mm x 11.94mm	26.16mm x 26.16mm x 11.94mm	26.16mm x 26.16mm x 12.7mm	26.16mm x 26.16mm x 12.7mm	26.16mm x 26.16mm x 11.94mm	26.16mm x 26.16mm x 11.94mm	26.16mm x 26.16mm x 11.94mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO	NO	YES
Preheating power	4 W	4 W	4 W	4 W	4 W	4 W	4 W	4 W
Maximum warm-up time	2 Minute	2 Minute	2 Minute	2 Minute	2 Minute	2 Minute	2 Minute	2 Minute
Base Number Matches	1	1	1	1	1	1	-	-
Maker	-	MtronPTI	-	-	MtronPTI	MtronPTI	MtronPTI	MtronPTI
