525EU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 525EU

525EU: DescriptionAC-DC Regulated Power Supply Module, 3 Output, 200W, 2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE; CategoryPower/power management The power supply circuit; File Size71KB，2 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

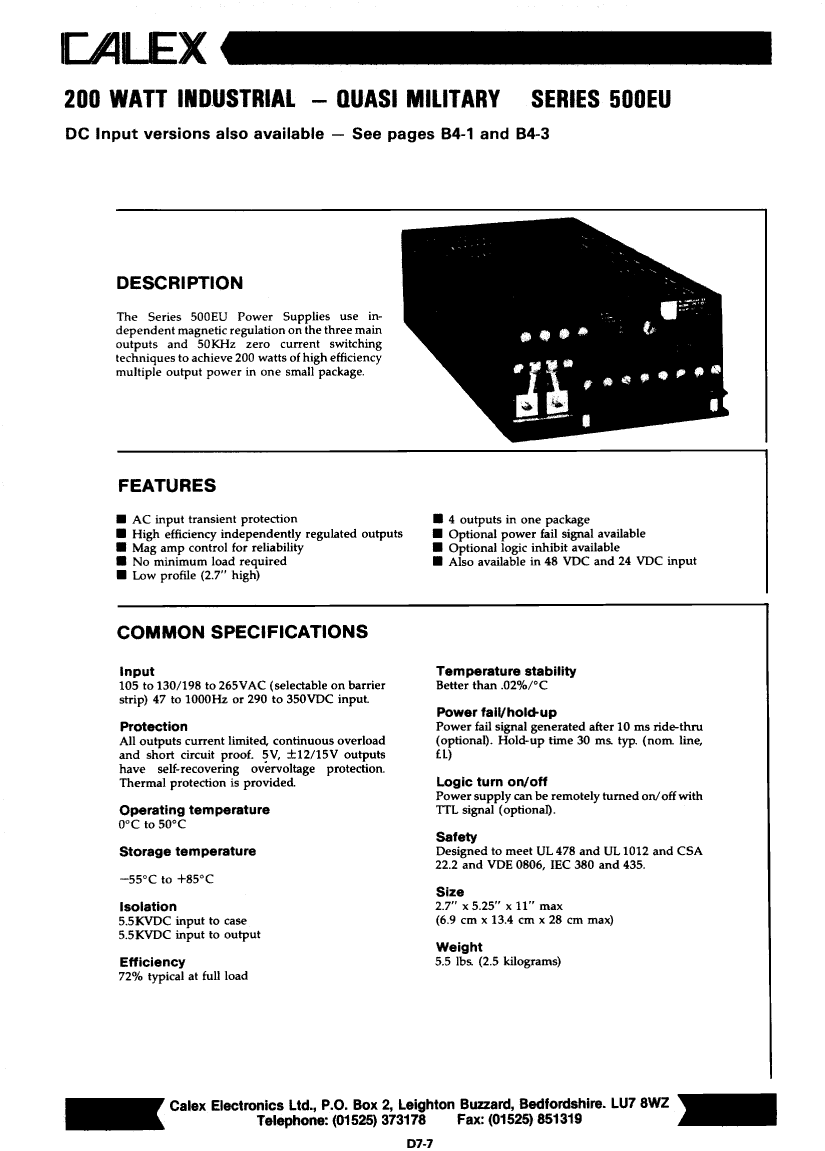

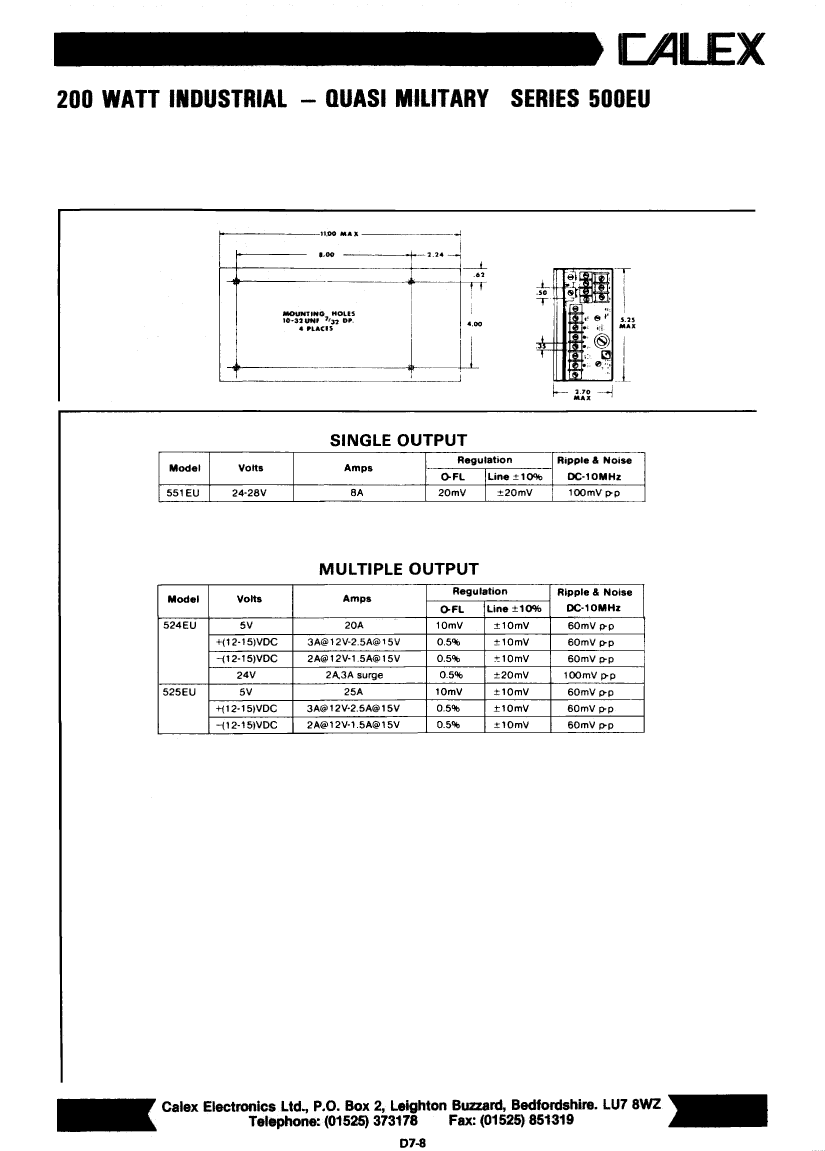

525EU Overview

AC-DC Regulated Power Supply Module, 3 Output, 200W, 2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE

525EU Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V
Minimum input voltage	105 V
JESD-30 code	R-XXMA-X
Maximum load regulation	0.2%
Number of functions	1
Output times	3
Maximum operating temperature	50 °C
Minimum operating temperature
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	200 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

525EU Related Products

	525EU	551EU	524EU
Description	AC-DC Regulated Power Supply Module, 3 Output, 200W, 2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 1 Output, 200W, 2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 4 Output, 200W, 2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE
Parts packaging code	MODULE	MODULE	MODULE
package instruction	2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE	2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE	2.700 X 5.250 X 11.000 INCH, LOW PROFILE, MODULE
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V	130 V	130 V
Minimum input voltage	105 V	105 V	105 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X
Number of functions	1	1	1
Output times	3	1	4
Maximum operating temperature	50 °C	50 °C	50 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	200 W	200 W	200 W
Fine-tuning/adjustable output	NO	NO	NO
Base Number Matches	1	1	1
Maximum load regulation	0.2%	-	0.2%
Nominal output voltage	5 V	-	5 V
Maker	-	Calex Mfg Co Inc.	Calex Mfg Co Inc.
