1-67987-2 datasheet, PDF - EEWORLD Datasheet

1-67987-2: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size448KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

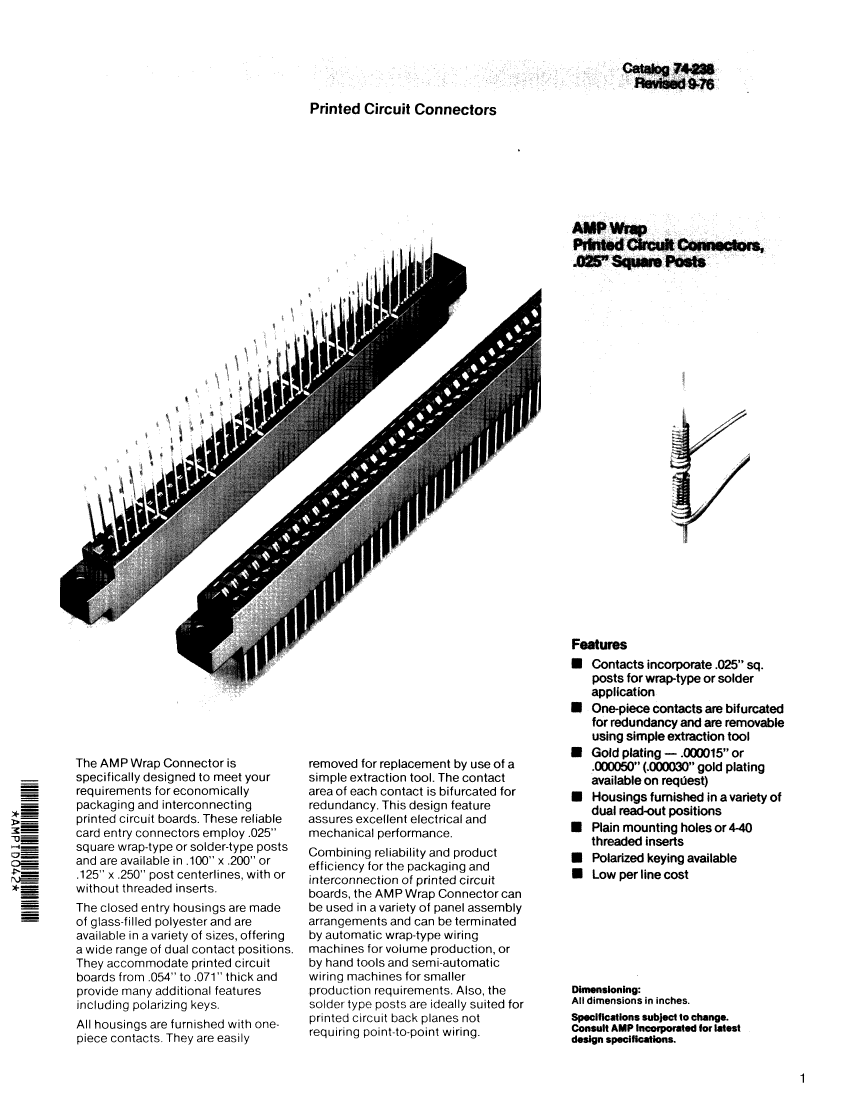

1-67987-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Reach Compliance Code	unknow
Board mount options	HOLE .125-.137

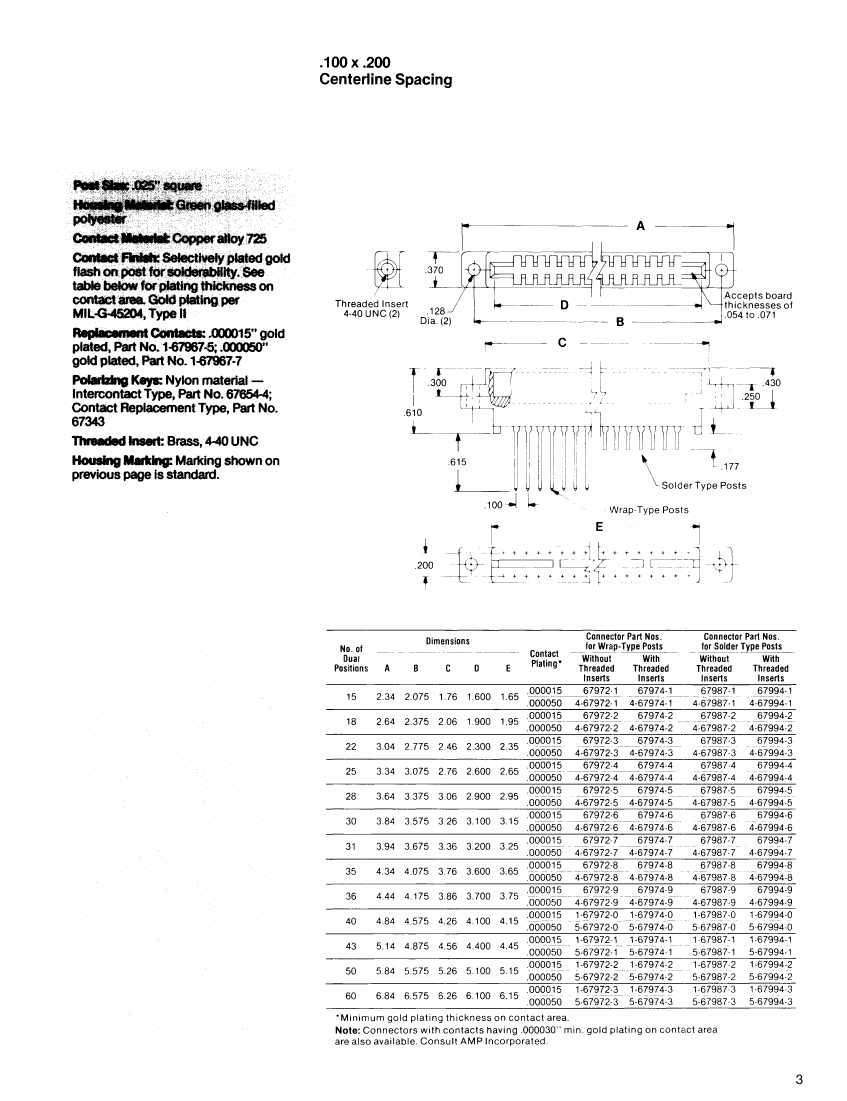

body width	0.37 inch
subject depth	0.61 inch
body length	5.84 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	COPPER ALLOY
contact mode	RECTANGULAR

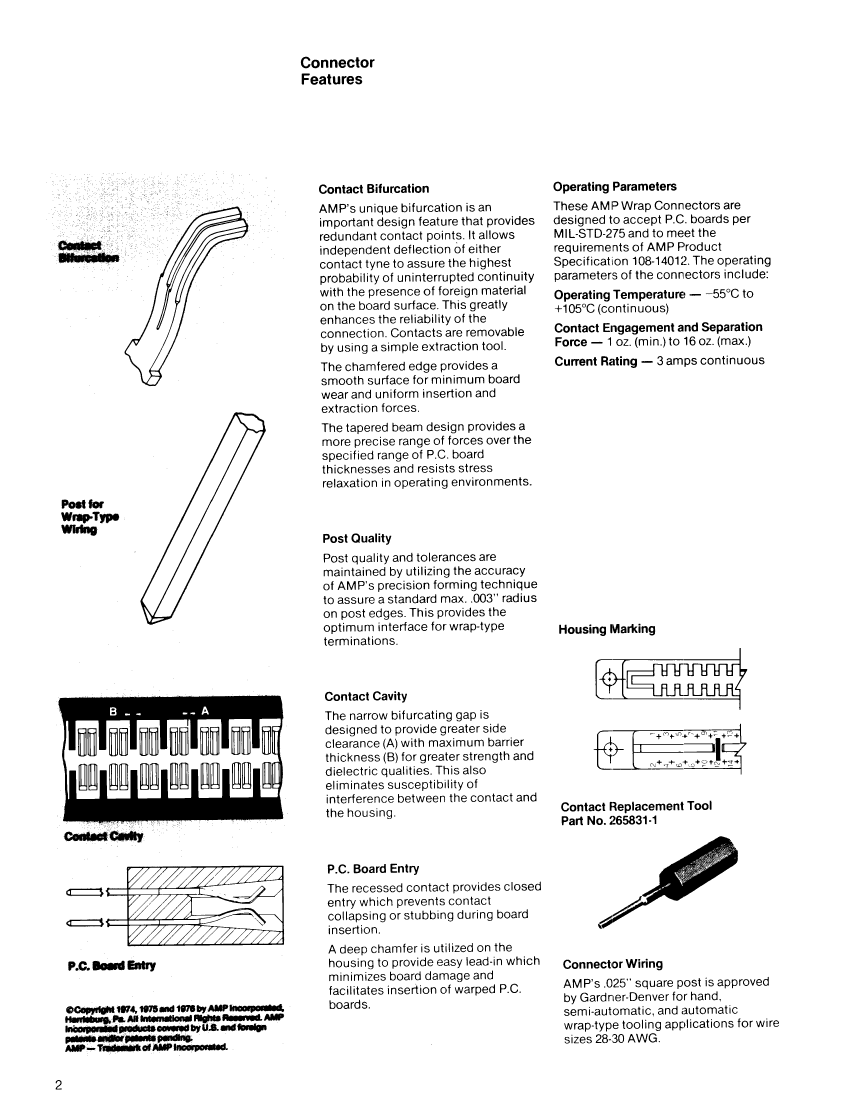

Contact style	BELLOWED TYPE
maximum insertion force	4.448 N
Insulator color	GREEN
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	67987

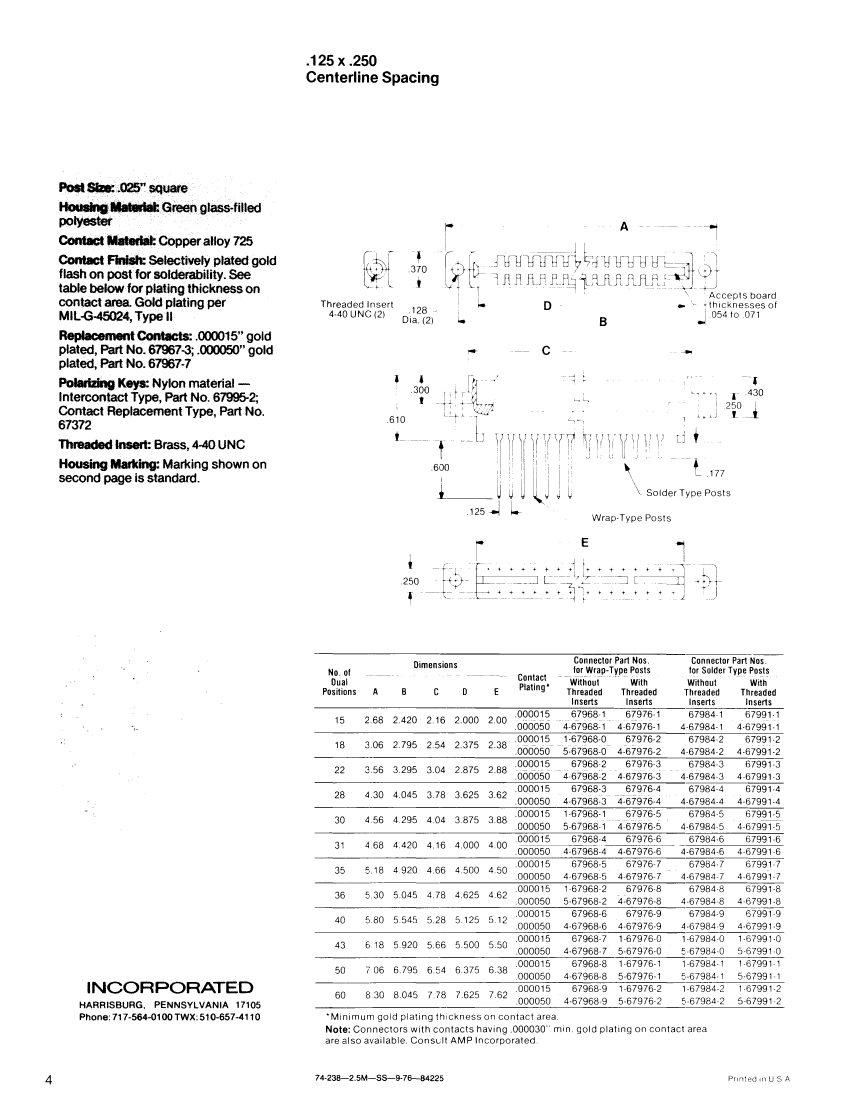

Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	15u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
Evacuation force-minimum value	.278 N
Base Number Matches	1
