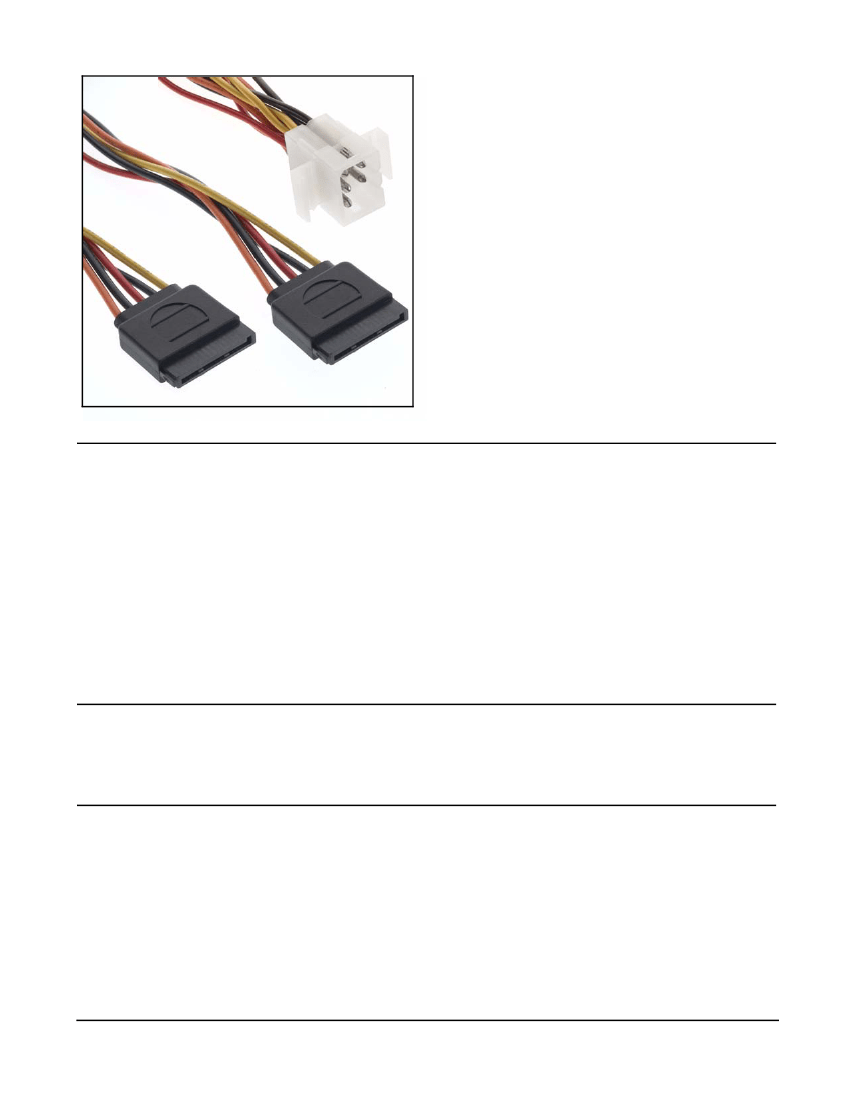

3M™ Serial Advanced Technology Attachment (SATA) Power Cable
Y Configuration
5601 Series
• 15-position power cable
• Rugged over-molded construction provided in
standard lengths
• Supports 3.3V, 5V or 12V applications
• "Y" type supports multiple devices
• Meets SATA Specification 1.0a
• See Regulatory Information Appendix (RIA)
for chemical compliance information
Date Modified: June 26, 2007
TS-2110-B
Sheet 1 of 2
Physical
Insulator
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black (15 pin) / White (5 pin)
Contact
Material:
Plating
Wiping Area:
Underplating:
Cable
Conductors:
Marking
Copper Alloy
30
μ″
[ 0.76
μm
] Gold
50
μ″
[ 1.27
μm
] Nickel
18 AWG Stranded
3M Logo
Electrical
Current Rating
:
4.5 A
Insulation Resistance:
10
3
ΜΩ
(minimum)
Withstanding Voltage:
100 V
Environmental
Temperature Range:
-40°C to +85°C
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M™ Serial Advanced Technology Attachment (SATA) Power Cable
Y Configuration
"Y" Topology Power Cable
127
5601 Series
PIN 6
PIN 3
P2
P1
PIN 4
P3
PIN 1
200
PIN 1
PIN 15
SATA 15 Position Plug
Ends Typ. for P2 and P3
WIRE CO LO R CHART
P1
2
3
4
5
6
Color
Black
Black
Black
Black
Orange
Orange
Red
Red
Yellow
Yellow
P2
4, 5, 6
10, 11, 12
10, 11, 12
1, 2, 3
1, 2, 3
7, 8, 9
7, 8, 9
13, 14, 15
13, 14, 15
mm
mm
[inch]
Tolerance Unless Noted
0
±3
0.0
0.00
±.25 ±.127
P3
4, 5, 6
Note: The 3M logo is on the reverse side of P3.
[ ] Dimensions for Reference
Only
Ordering Information
5601 - X X 127 - 200
(RIA E1 & C1 Apply)
Series Product:
Left Connector:
2 = Straight
Right Connector:
2 = Straight
TS-2110-B
Sheet 2 of 2
Length of Right Cable in (mm) ± 10 mm
Length of Left Cable in (mm) ± 10 mm
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is compliant by
exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.
CHINA

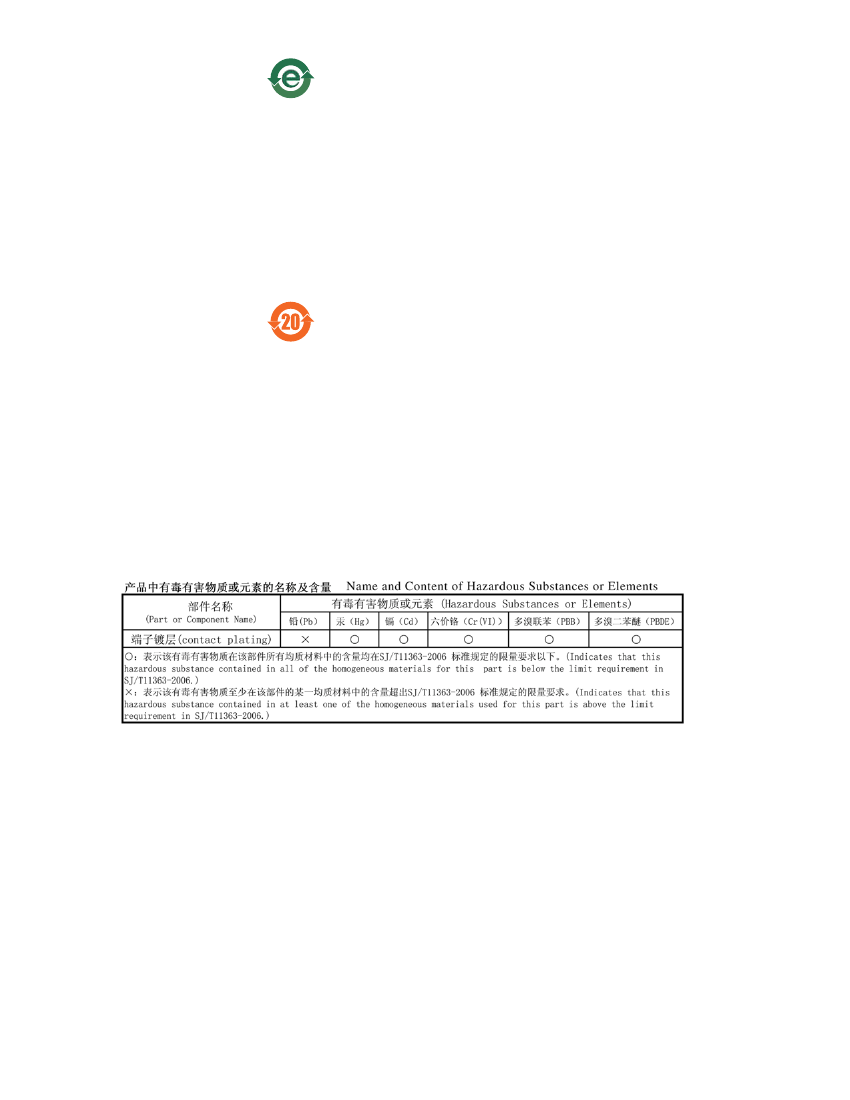

Appendix C1: China RoHS
