0015474243 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0015474243

0015474243: Description24 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE; CategoryThe connector The connector; File Size142KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0015474243 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0015474243	-	-	View	Buy Now

0015474243 Overview

24 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE

0015474243 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STACKED
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

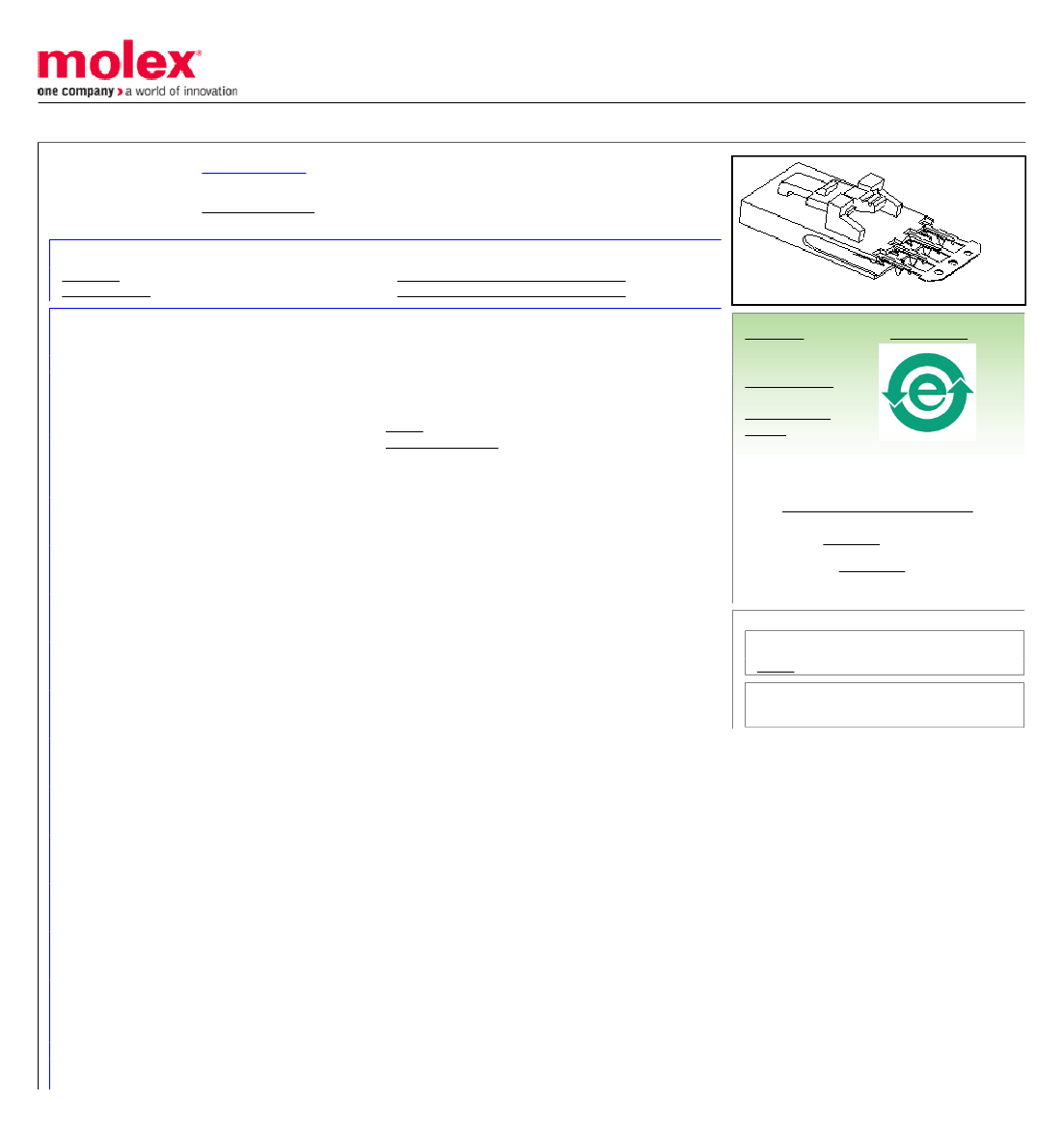

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

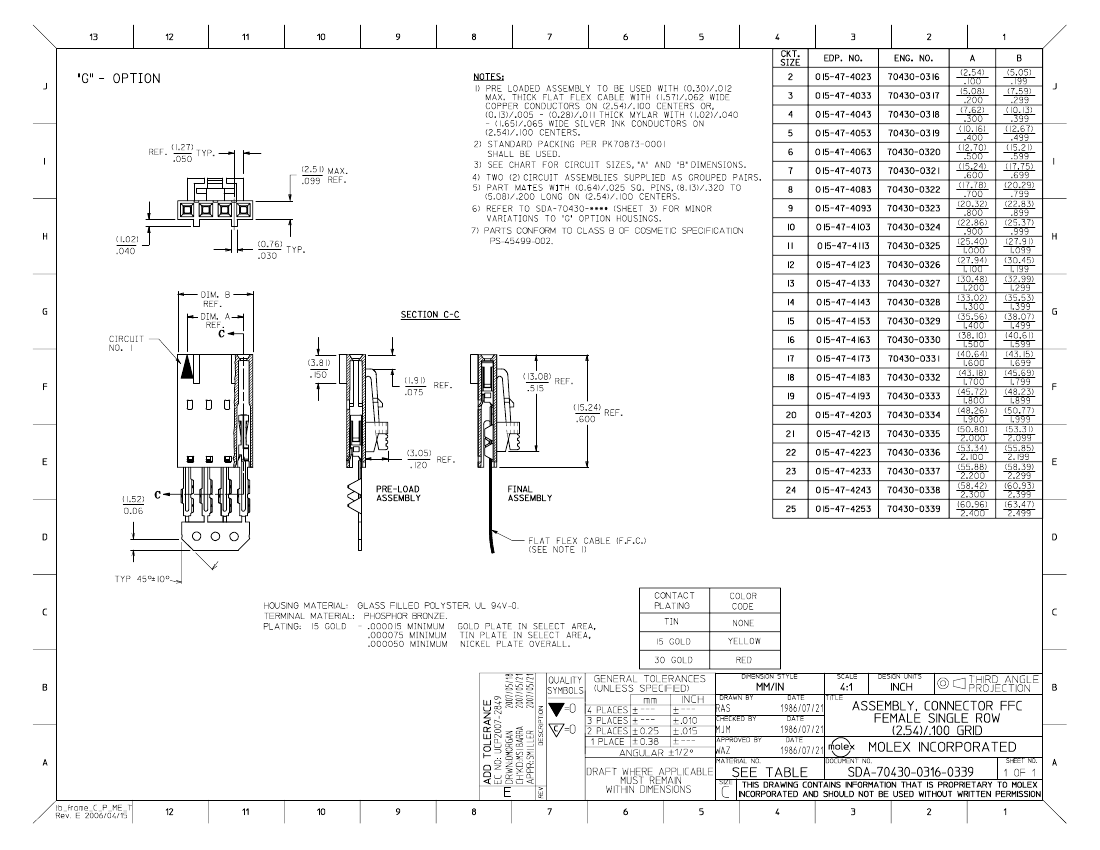

Drawing (PDF)

0015474243

Active

cgrid__sl_products

2.54mm (.100") C-Grid SL™ Single Row, Female, Version G Receptacle, 24 Circuits

Product Specification PS-70430 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19880

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

70430

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black

N/A

Vertical

94V-0

Phosphor Bronze

Gold

Tin

Polyester Alloy

Vertical

0.130 In

3.30 mm

None

0.062 In, 0.093 In

1.60 mm, 2.40 mm

Tube

0.100 In

2.54 mm

0.100 In

2.54 mm

0.375

1.875

N/A

Yes

-40°C to +105°C

IDT or Pierce

FFC/FPC

Search Parts in this Series

70430Series

Mates With

C-Grid® locking headers and panel mounts

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 2A

250V

Material Info

0015474243 Related Products

	0015474243	015-47-4243	70430-0338
Description	24 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE	24 CONTACT(S), FEMALE, FFC/FPC CONNECTOR	24 CONTACT(S), FEMALE, FFC/FPC CONNECTOR
Reach Compliance Code	compliant	compliant	unknow
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD (15) OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	TIN	Gold (Au) - with Nickel (Ni) barrier	GOLD (15) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e3	e4	e4
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	24	24	24
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
Maker	Molex	Molex	-
Is Samacsys	N	N	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Termination type	IDC	IDC	-

Recommended Resources

Bidirectional frequency conversion circuit

One of the one-way operation circuits of DC motor armature connected with resistor to start energy consumption braking

A starting circuit that reduces the voltage of the synchronous motor reactor and adds excitation according to the change of the stator current

TDA2007 power amplifier circuit diagram

Control the DC motor starting circuit according to the fast principle

AC electronic relay circuit

About AD421: I use +5V to power AD421, why does the chip heat up immediately when the power is turned on? The positive and negative terminals of the chip are connected correctly. Does anyone know about this situat...; nbmeixiang21 MCU

Happy Dragon Boat Festival: ...; dcexpert Talking

Why is the address of this DAC E000H?: Dear brothers and sisters: In the figure below, why is the address of the digital-to-analog converter DAC0832 connected to the 8031 microcontroller E000H? Please give me some advice! Thank you!...; hfudsi MCU

Question about 28335 adc: In DSP28335, when the AD pin input voltage is 0, why does the AdcRegs.ADCRESULT register always remain around 31172 instead of 0?...; zhangxin Microcontroller MCU

Static electricity: The company has made a car side turn signal light, the circuit is very simple, now when the power is off, the ground of the static gun is connected to the product input ground, when 4KV static electri...; aq1261101415 Automotive Electronics

What is the current market share and advantages of AVR microcontrollers?: I haven't used AVR for a long time. I wonder what the current market share of AVR microcontrollers is and what their technical advantages are?...; westlife_lp Microchip MCU
