MMSS-05-24C-L-04.25-D-K-LDX datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MMSS-05-24C-L-04.25-D-K-LDX

MMSS-05-24C-L-04.25-D-K-LDX: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size940KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MMSS-05-24C-L-04.25-D-K-LDX Overview

Cable Assembly

MMSS-05-24C-L-04.25-D-K-LDX Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

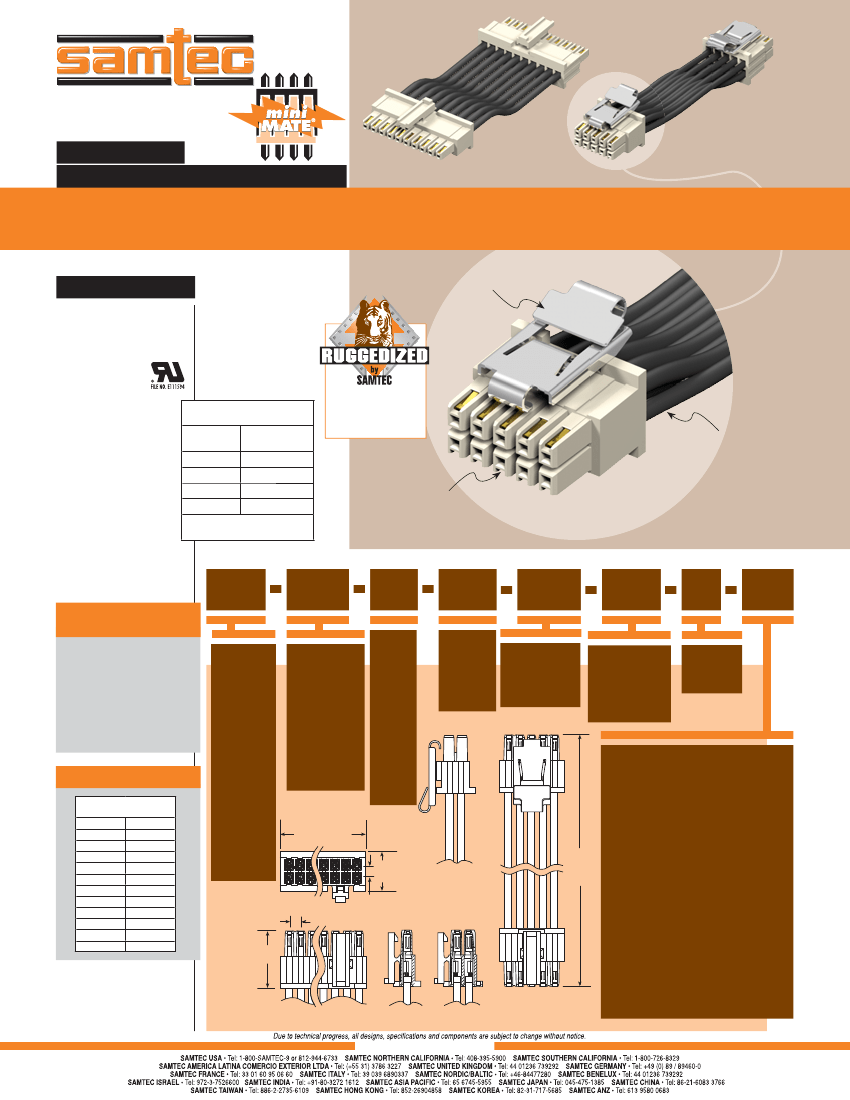

F-213 (29-JUL-13)

(2,54 mm) .100"

MMSD, MMSDT, MMSS, MMSST SERIES

MMSS–10–20–L–03.25–D–K–LUS

MMSD–05–20–L–04.25–D–K–MUX

DISCRETE WIRE CABLE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MMSD,

www.samtec.com?MMSDT,

www.samtec.com?MMSS or

www.samtec.com?MMSST

Insulator Material:

Nylon 66

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Operating Temp Range:

-35°C to +105°C (PVC)

-55°C to +125°C (*Teﬂon )

Voltage Rating:

20 to 30 AWG =

300 VAC/424 VDC

Wire:

20 to 30 AWG

RoHS Compliant:

Yes

Mates with:

IPL1

(Does not mate with IPT1)

Metal or

plastic latch

CURRENT RATING

(PER CONTACT)

AMBIENT

TEMP

20°C

40°C

60°C

95°C

MMSD/IPL1

7.4A

6.5A

5.9A

3.8A

• Individually

shrouded contacts

• Metal or plastic

latches

Wire range from

20-30 AWG

Single or Double

ended available

6 POSITIONS (2x3)

20 AWG POWERED

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

TYPE

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLY

LENGTH

END

OPTION

LATCH

OPTION

APPLICATION

SPECIFIC OPTION

• Other color coded cables

(*Teﬂon

N/A).

• Other sizes/pin counts.

• With or without Plug

Polarization (omit pin 1).

• Other Gold plating options.

• Guide post

Call Samtec.

MMSD

= Double Row

PVC Cable

MMSDT

= Double Row

*Teﬂon

Cable

(24, 28 & 30

AWG only)

–02, –03,

–04, –05,

–06, –08,

–10, –12,

–15, –16,

–20, –25

(Call Samtec

for other sizes)

–20

–22

–24

–24C

= Color

Coded

Cable

–L

= 10µ"

(0,25 µm)

Gold on

contact,

Tin on tail

–“XX.XX”

= Assembly

Length in Inches

(82,55 mm)

03.25" min.

–D–K–MUS

–S

= Single End

–K

= Keyed

Polarization

–D

= Double End

(Latch Required)

APPLICATION

–24C CABLE

COLOR CODING

COLOR

ETC

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

REPEAT

MMSS

= Single Row

PVC Cable

–26

–28

–30

(Metal latches for more

rugged environments;

–02, –05 & –10 positions only)

x (2,54) .100

= Single Row

+ (1,40) .055

Cable

*Teﬂon

(24, 28 & 30

AWG only)

MMSST

–M

= Single Ended, Metal Latches

(Leave blank for plastic)

Double Ended (–D) Crossed

requires MMSD/MMSDT

Assembly

Length

± (3,18)

.125

No. of positions

(8,89)

.350

–M & –MXX

(MMSD/MMSDT)

(2,54)

.100

(2,54) .100

(12,83)

.505

Note:

For wiring option

information refer to drawing

on web.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–D–K–LUS

MMSS/

MMSST

MMSD/

MMSDT

–LUS

= Plastic Latch up, straight

–LDS

= Plastic Latch down, straight

–LUX

= Plastic Latch up, crossed

–LDX

= Plastic Latch down, crossed

–MUS

= Metal Latch up, straight

–MDS

= Metal Latch down, straight

–MUX

= Metal Latch up, crossed

–MDX

= Metal Latch down, crossed
