EC31QS09TE12R datasheet, PDF - EEWORLD Datasheet

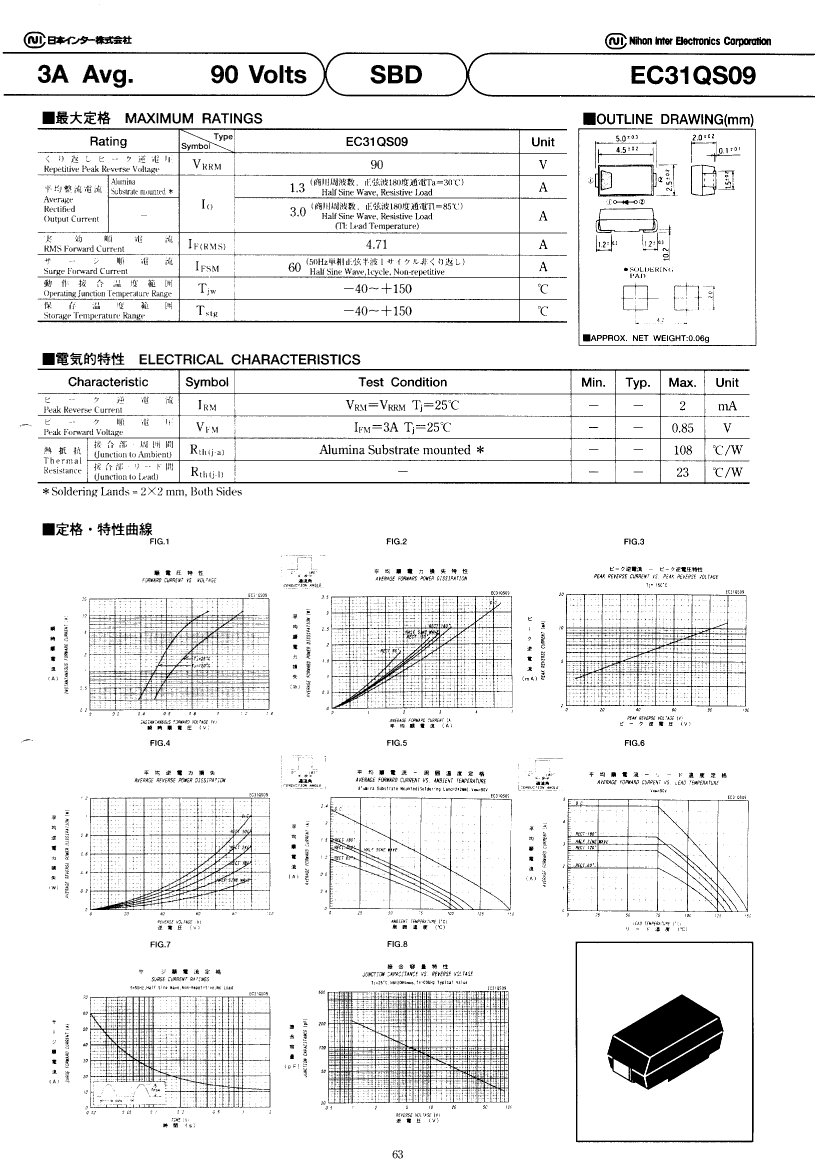

EC31QS09TE12R: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size137KB，1 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

EC31QS09TE12R Overview

Rectifier Diode,

Parameter Name	Attribute value
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

	EC31QS09TE12R	EC31QS09TE12R5	EC31QS09TE12L5	EC31QS09TE12L
Description	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknown	unknown
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
