TV-35N-2-PBT-T datasheet, PDF - EEWORLD Datasheet

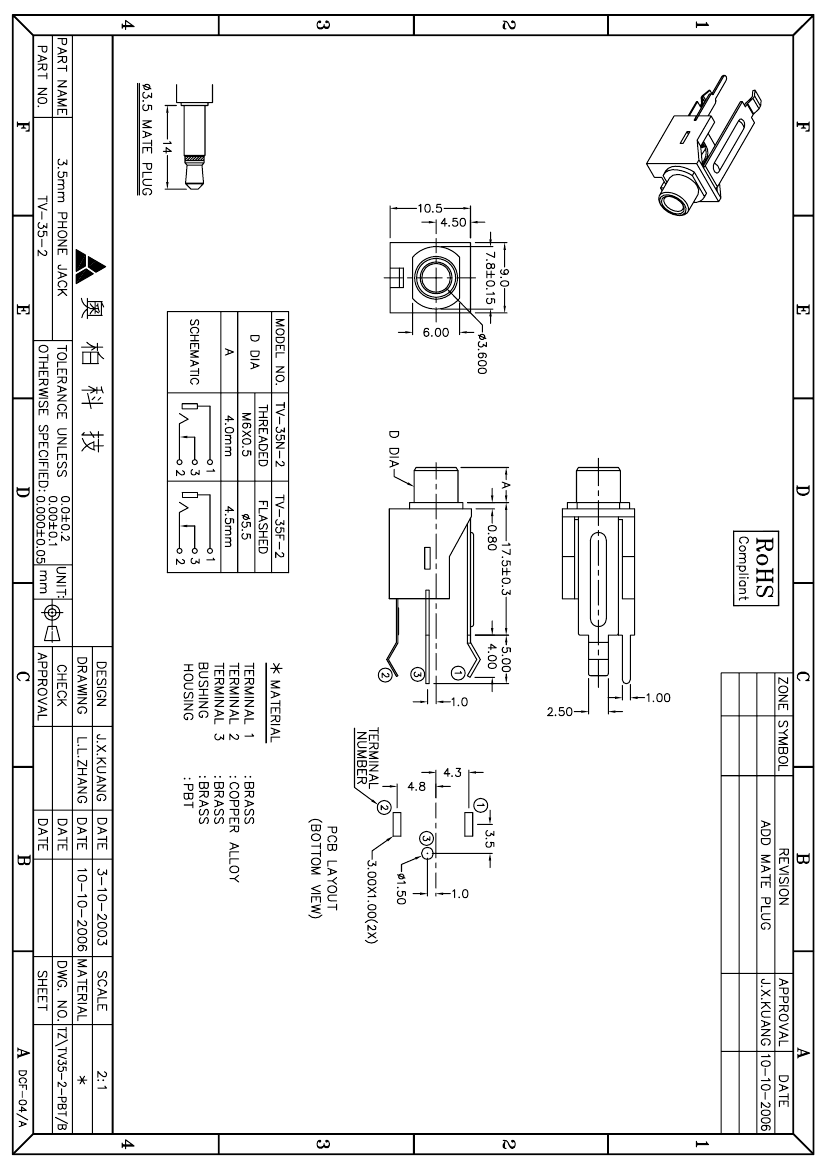

TV-35N-2-PBT-T: DescriptionAudio/RCA Connector, 3 Pole(s), Female, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerObjective Tech Co., Ltd.

Download Datasheet Parametric Compare View All

TV-35N-2-PBT-T Overview

Audio/RCA Connector, 3 Pole(s), Female, Solder Terminal, Locking, Jack

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
audio type	PHONO
body width	0.413 inch
subject depth	0.846 inch
body length	0.354 inch
Body/casing type	JACK
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
Contact resistance	100 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	5000 Cycles
maximum insertion force	29.3568 N
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	TV-35-2
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of poles	3
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.197 inch
Termination type	SOLDER
Evacuation force-minimum value	2.919 N
Base Number Matches	1

	TV-35N-2-PBT-T	TV-35F-2-PBT-T
Description	Audio/RCA Connector, 3 Pole(s), Female, Solder Terminal, Locking, Jack	Audio/RCA Connector, 3 Pole(s), Female, Solder Terminal, Locking, Jack
Reach Compliance Code	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT
audio type	PHONO	PHONO
body width	0.413 inch	0.413 inch
subject depth	0.846 inch	0.866 inch
body length	0.354 inch	0.354 inch
Body/casing type	JACK	JACK
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
Contact to complete cooperation	SN	SN
Contact completed and terminated	TIN	TIN
Contact point gender	FEMALE	FEMALE
Contact material	BRASS	BRASS
Contact resistance	100 mΩ	100 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	700VAC V	700VAC V
Durability	5000 Cycles	5000 Cycles
maximum insertion force	29.3568 N	29.3568 N
Insulation resistance	100000000 Ω	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	TV-35-2	TV-35-2
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of poles	3	3
Number of ports	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.197 inch	0.197 inch
Termination type	SOLDER	SOLDER
Evacuation force-minimum value	2.919 N	2.919 N
Base Number Matches	1	1
