LB-202-VD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LB-202-VD

LB-202-VD: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 6mm; CategoryLED optoelectronic/LED photoelectric; File Size45KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LB-202-VD Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 6mm

LB-202-VD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, 2 DIGITS
Display height	6 mm
Maximum forward current	0.02 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Number of characters	2
Number of functions	2
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	650 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

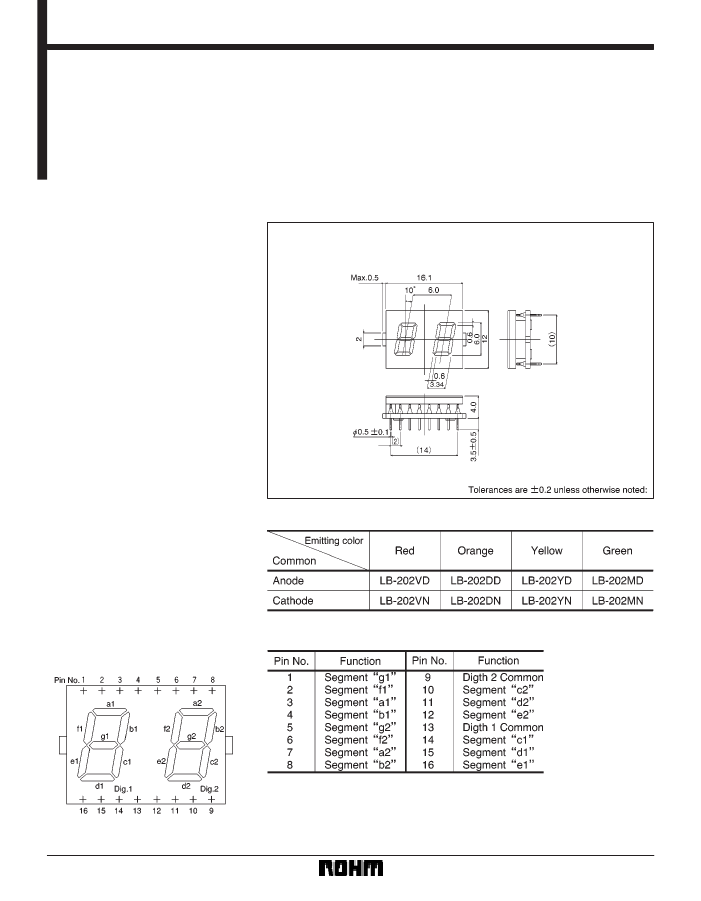

LED displays

High efficiency, two-digit numeric

displays

LB-202 DN Series

The LB-202 DN series were designed

to meet the need for multi-digit numeric

displays. These two-digit LED numeric

displays use GaAsP on GaP for the

emitting material (with the exception of

green) and have a character height of

6.0 mm.

FExternal

dimensions (Units: mm)

FFeatures

1) Height of character : 6.0 mm.

2) Common anode and common cath-

ode configurations are available for

each color.

3) High-efficiency reflectors are used

to achieve a bright, clear display.

FSelection

guide

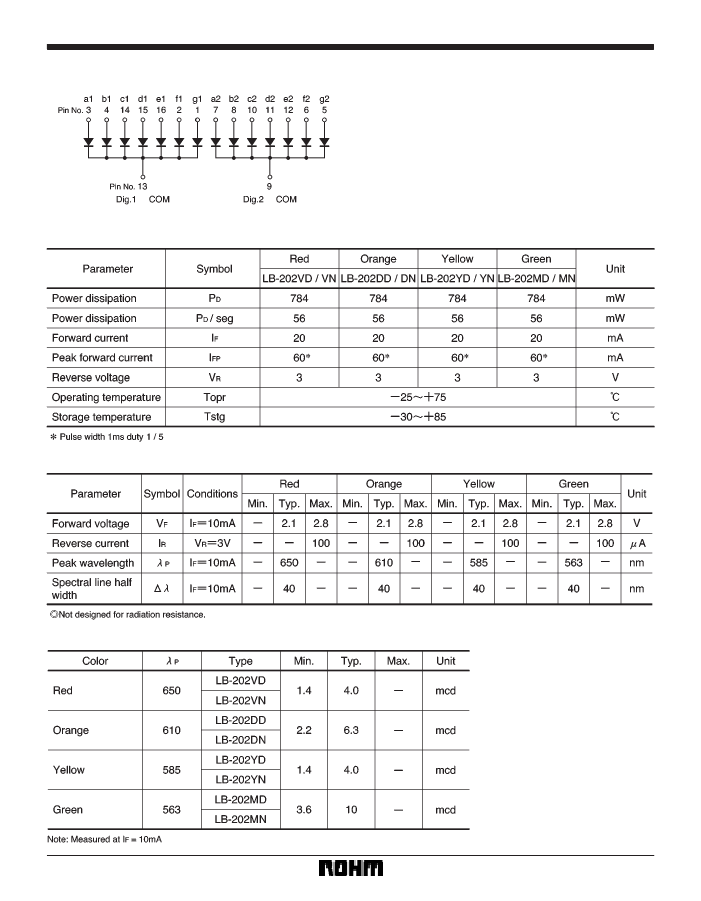

FPin

assignments

193

LB-202-VD Related Products

	LB-202-VD	LB-202-DD	LB-202DN	LB-202-DN	LB-202-MD	LB-202-MN	LB-202-VN	LB-202-YN	LB-202YN	LB-202-YD
Description	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 6mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 6mm	7 SEG NUMERIC DISPLAY, ORANGE, 6 mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 6mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 6mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 6mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 6mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 6mm	7 SEG NUMERIC DISPLAY, YELLOW, 6 mm	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 6mm
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant	unknown	compliant
color	RED	ORANGE	ORANGE	ORANGE	GREEN	GREEN	RED	YELLOW	YELLOW	YELLOW
Configuration	COMMON ANODE, 2 DIGITS	COMMON ANODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON ANODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON CATHODE, 2 DIGITS	COMMON ANODE, 2 DIGITS
Display height	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Number of functions	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible
color@wavelength	Red	Orange	-	Orange	Green	Green	Red	Yellow	Yellow	Yellow
Maximum forward voltage	2.8 V	2.8 V	-	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	-	e0
Number of characters	2	2	-	2	2	2	2	2	2	2
peak wavelength	650 nm	610 nm	-	610 nm	563 nm	563 nm	650 nm	585 nm	585 nm	585 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	-	-	-	-
