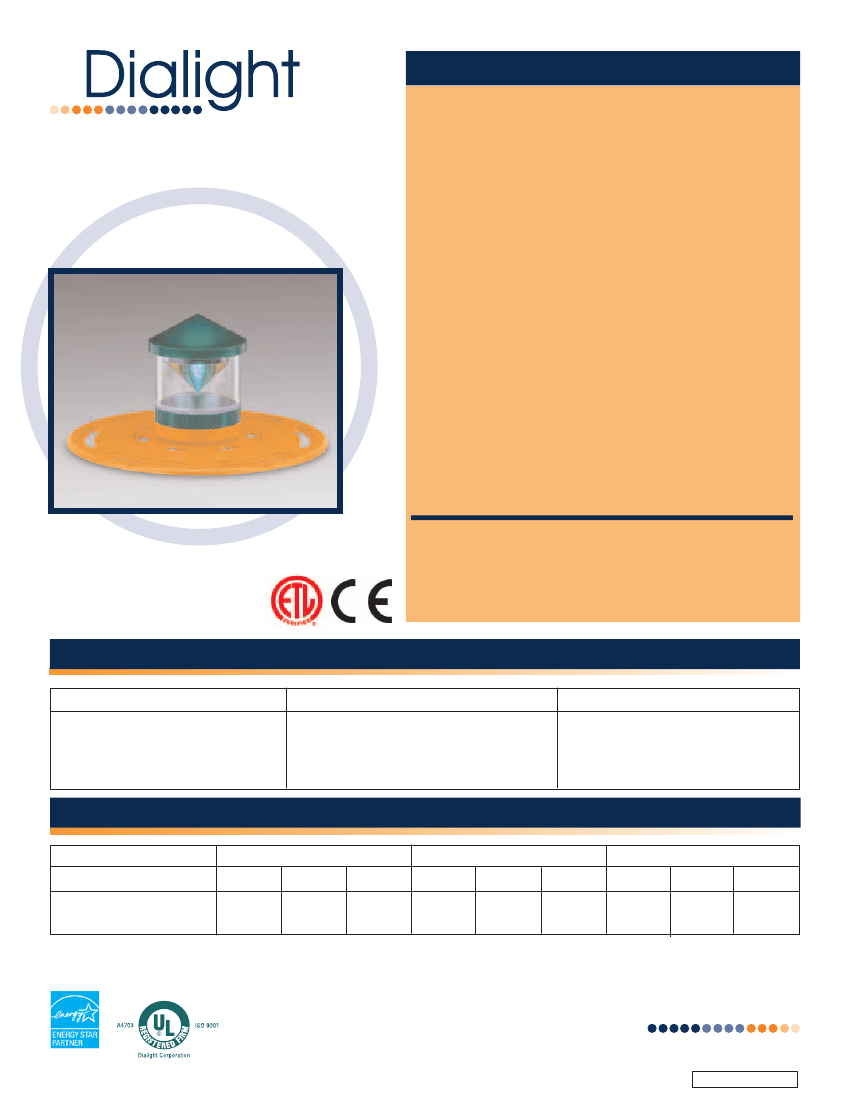

FEATURES / BENEFITS
Designed to replace incandescent elevated
heliport edge fixtures
D861H LED BASED
Elevated Heliport Perimeter
Edge Fixture
FAA Type L861H
Fixture is designed to mount onto standard L867
base can with a 10.25” Bolt circle, or stake mounted,
or with Dialight Junction Box
Baseplate, Gasket & Mounting Bolts included
Operates on 6.6A series circuit, or 120 VAC
Standard Height of 6”
Easily interface to existing airfield lighting circuits
5 year performance warranty
Weather/corrosion resistant lamp assembly and housing
Considerable power savings compared to incandescent
Creates no EMI/RFI
Lasts years longer than an incandescent
Elimination of costly fixture and lamp replacement if impacted
while also removing any exposure to potential electrical hazard
L861H - 5 Watts
Resistant to shock and vibration
Compliant to the following specifications
FAA AC NO. (150/5345-46B)
Transport Canada (TP312E)
ICAO (Annex 14, July 1990)
LED based Heliport perimeter edge fixtures are used for all
heliports as a perimeter edge fixture. The omni directional
light is used to define the perimeter of the area the helicopter
requires for landing and takeoff.
Patent# US 6,533,446
WEIGHTS & MEASUREMENTS
OVERALL HEIGHT
6”
14”
24”
30”
APPROX. SHIPPING WEIGHT
12.5lbs/5.7kg
13.5lbs/6.1kg
14.5lbs/6.6kg
15.5lbs/7kg
CONTAINER DIMENSIONS
12 1/4’’x
12 1/4’’x
12 1/4’’x
12 1/4’’x
17 3/8”x 8”
17 3/8”x 8”
261/4”x 8”
321/4”x 8”
UNIT ELECTRICAL SPECIFICATIONS
I IN
V IN
VA
SERIES
L861H, 6.6 AMP
L861H, 120 VOLT
MIN
6.2A
.2A
TYP
6.6A
.36A
MAX
7.0A
.45A
MIN
2.19
92
TYP
2.24
115
MAX
2.29
132
MIN
13.5
18.4
TYP
14.9
41.4
MAX
16.0
59.4
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732.919.3119 • Fax: (1) 732.751.5778 • www.dialight.com
a Roxboro Group Company
MDTG861H001_B

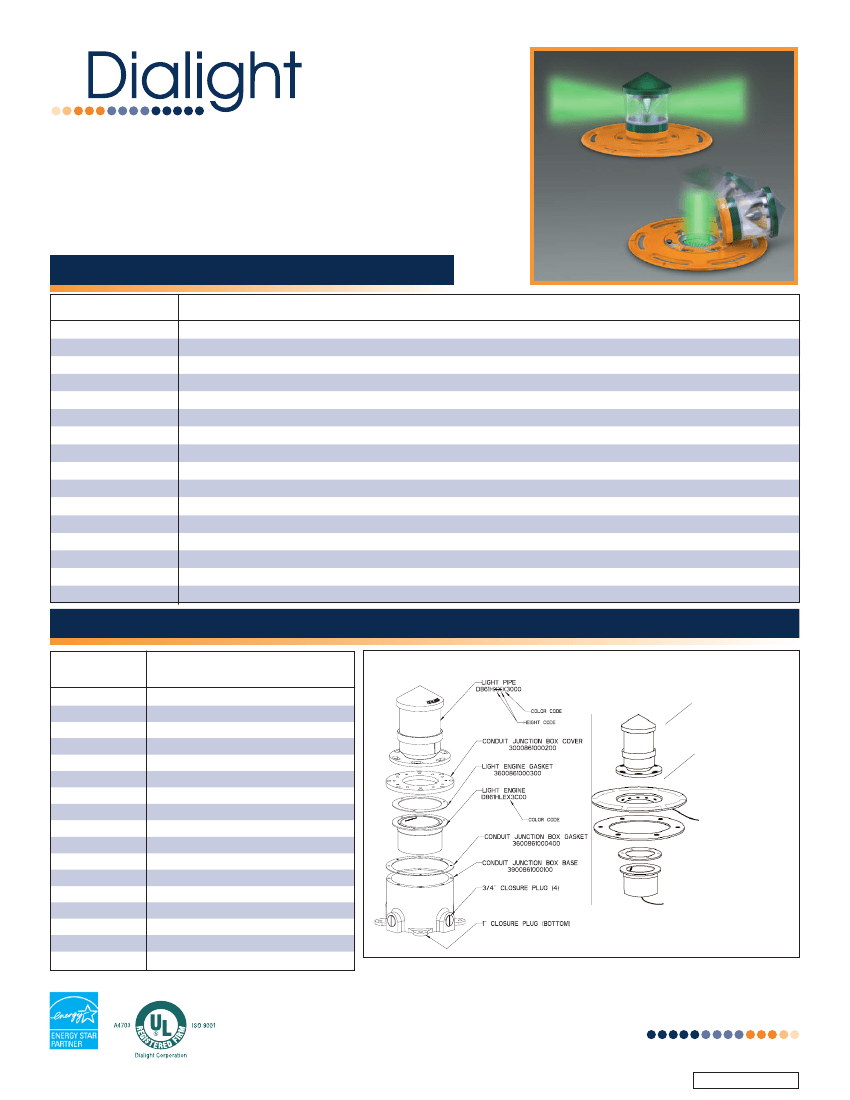

D861H LED BASED
Elevated Heliport Perimeter Edge Fixture
FAA Type L861H
PRODUCTS
PART NUMBER
D861-H06B-3C00
D861-H06G-3C00
D861-H06Y-3C00
D861-H14G-3C00
D861-H14Y-3C00
D861-H06B-3A00
D861-H06G-3A00
D861-H06Y-3A00
D861-H14G-3A00
D861-H14Y-3A00
D861-H06B-3C03
D861-H06G-3C03
D861-H06Y-3C03
D861-H06B-3A03
D861-H06G-3A03
D861-H06Y-3A03
DESCRIPTION
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, BLUE 06” OMNI-DIRECTIONAL, 120VAC INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, GREEN 06” OMNI-DIRECTIONAL, 120VAC INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, YELLOW, 06” OMNI-DIRECTIONAL, 120VAC INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, GREEN, 14” OMNI-DIRECTIONAL, 120VAC INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, YELLOW 14” OMNI-DIRECTIONAL, 120VAC INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, BLUE, 06” OMNI-DIRECTIONAL, 6.6A INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, GREEN, 06” OMNI-DIRECTIONAL, 6.6A INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, YELLOW, 06” OMNI-DIRECTIONAL, 6.6A INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, GREEN, 14” OMNI-DIRECTIONAL, 6.6A INPUT
L861H MEDIUM INTENSITY, ELEVATED, HELIPORT, YELLOW, 14” OMNI-DIRECTIONAL, 6.6A INPUT
KIT, MEDIUM INTENSITY, ELEVATED, HELIPORT PERIMETER, BLUE, 06", OMNI-DIRECTIONAL, 120 VAC INPUT W/CJB
KIT, MEDIUM INTENSITY, ELEVATED, HELIPORT PERIMETER, GREEN, 06", OMNI-DIRECTIONAL, 120 VAC INPUT W/DJB
KIT, MEDIUM INTENSITY, ELEVATED, HELIPORT PERIMETER, YELLOW, 06", OMNI-DIRECTIONAL, 120 VAC INPUT W/CJB
KIT, MEDIUM INTENSITY, ELEVATED, HELIPORT PERIMETER, BLUE, 06", OMNI-DIRECTIONAL, 6.6A INPUT W/ CJB
KIT, MEDIUM INTENSITY,ELEVATED, HELIPORT PERIMETER, GREEN, 06", OMNI-DIRECTIONAL,6.6A INPUT W/ CJB
KIT, MEDIUM INTENSITY, ELEVATED,HELIPORT PERIMETER, YELLOW, 06", OMNI-DIRECTIONAL, 6.6A INPUT W/ CJB
SPARE PARTS
PART NUMBER
D861-4000
D861-5000
D861-5001
D861-5002
DESCRIPTION
BASEPLATE, 10.25, 3” DIAMETER RISER
GASKET, FLAT, 10.25, BOLT CIRCLE
GASKET, KIT, LEVELING, 10.25, BOLT CIRCLE
GASKET, KIT
(Includes: Light engine flat/light pipe “O” ring)
BASEPLATE KIT
(Kit includes gasket and
mounting bolts)
GROUND WIRE
O-RING
(under light pipe)
LIGHT PIPE
D861-HO6B-3000
D861-T14B-3000
D861-T24B-3000
D861-T30B-3000
D861-H06G-3000
D861-H06Y-3000
D861-TLEB-3A00
D861-TLEB-3C00
D861-HLEG-3C00
D861-HLEG-3A00
D861-HLEY-3C00
D861-HLEY-3A00
LIGHT PIPE, 06”, BLUE
LIGHT PIPE, 14”, BLUE
LIGHT PIPE, 24”, BLUE
LIGHT PIPE, 30”, BLUE
LIGHT PIPE, 06”, GREEN
LIGHT PIPE, 06”, YELLOW
LIGHT ENGINE, 6.6A, BLUE
LIGHT ENGINE, 120VAC, BLUE
LIGHT ENGINE, 120VAC, GREEN
LIGHT ENGINE, 6.6A, GREEN
LIGHT ENGINE, 120VAC, YELLOW
LIGHT ENGINE, 6.6A, YELLOW
BASEPLATE GASKET, FLAT
LIGHT ENGINE GASKET
LIGHT ENGINE
POWER WIRE
