MPV5J-R20S8LJFREQ datasheet, PDF

MPV5J-R20S8LJFREQ: DescriptionLVDS Output Clock Oscillator, 30MHz Min, 800MHz Max,; CategoryPassive components oscillator; File Size68KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MPV5J-R20S8LJFREQ Overview

LVDS Output Clock Oscillator, 30MHz Min, 800MHz Max,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	25 ppm
frequency stability	50%
JESD-609 code	e4
linearity	5%
Manufacturer's serial number	MPV5J
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	0.55 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

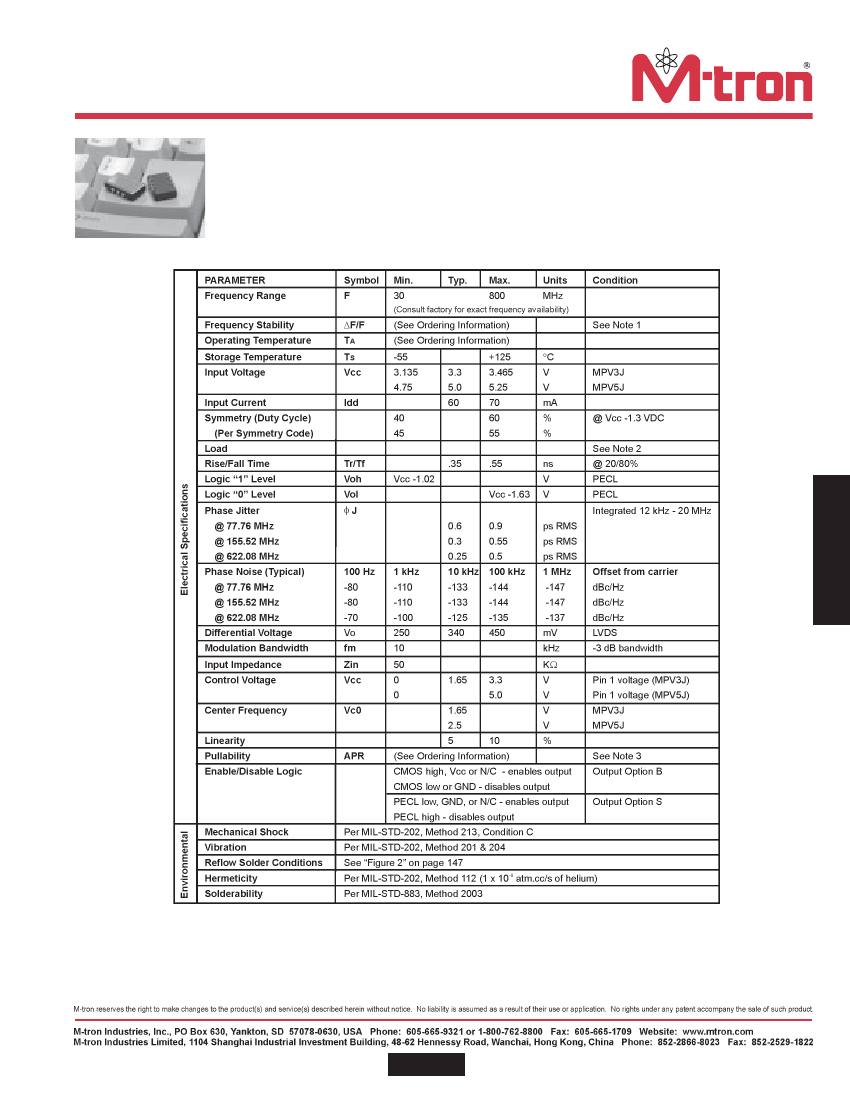

MPV3J & MPV5J Series

9x14 mm, 5.0 or 3.3 Volt, PECL/LVDS, VCXO

•

Integrated phase jitter of less than 1

ps from 12 kHz to 20 MHz

• Ideal for low noise PLL applications

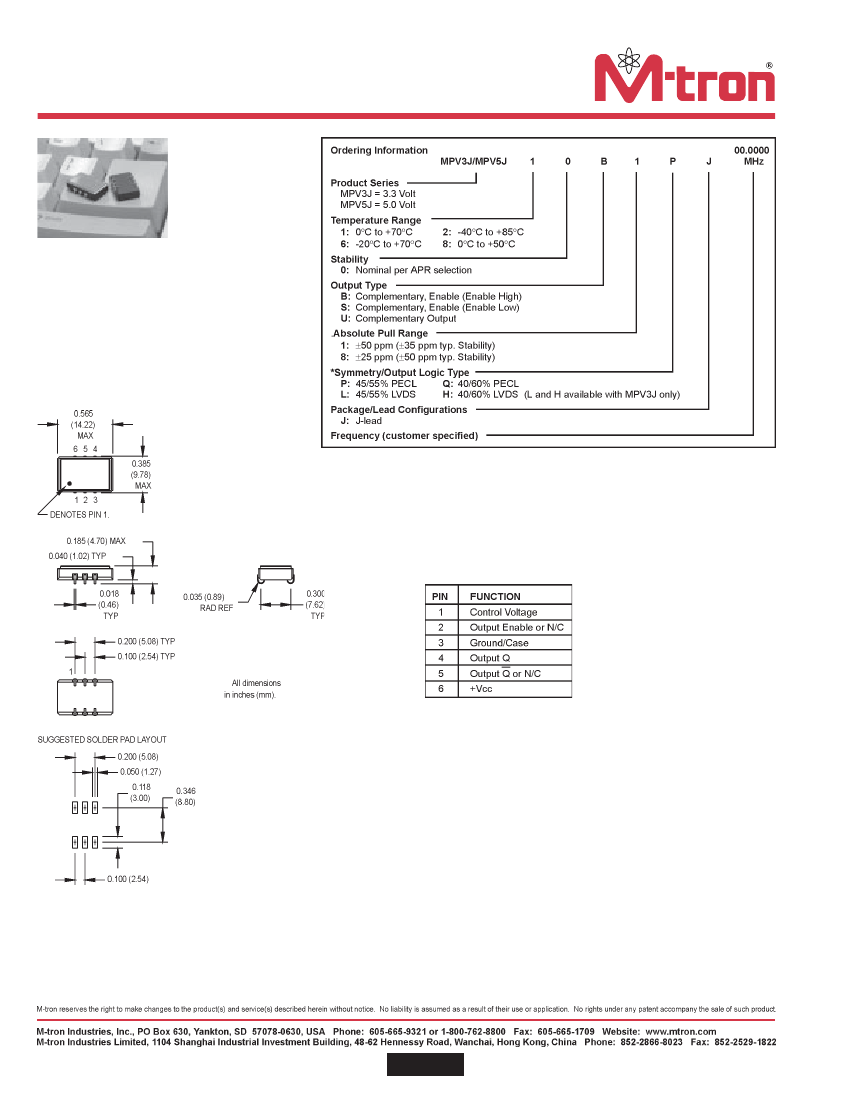

Pin Connections
