BM11B-XASS-TF: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size139KB，8 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

BM11B-XASS-TF Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal

BM11B-XASS-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	SHROUDED, TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER COPPER
Contact completed and terminated	TIN LEAD OVER COPPER
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	XA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

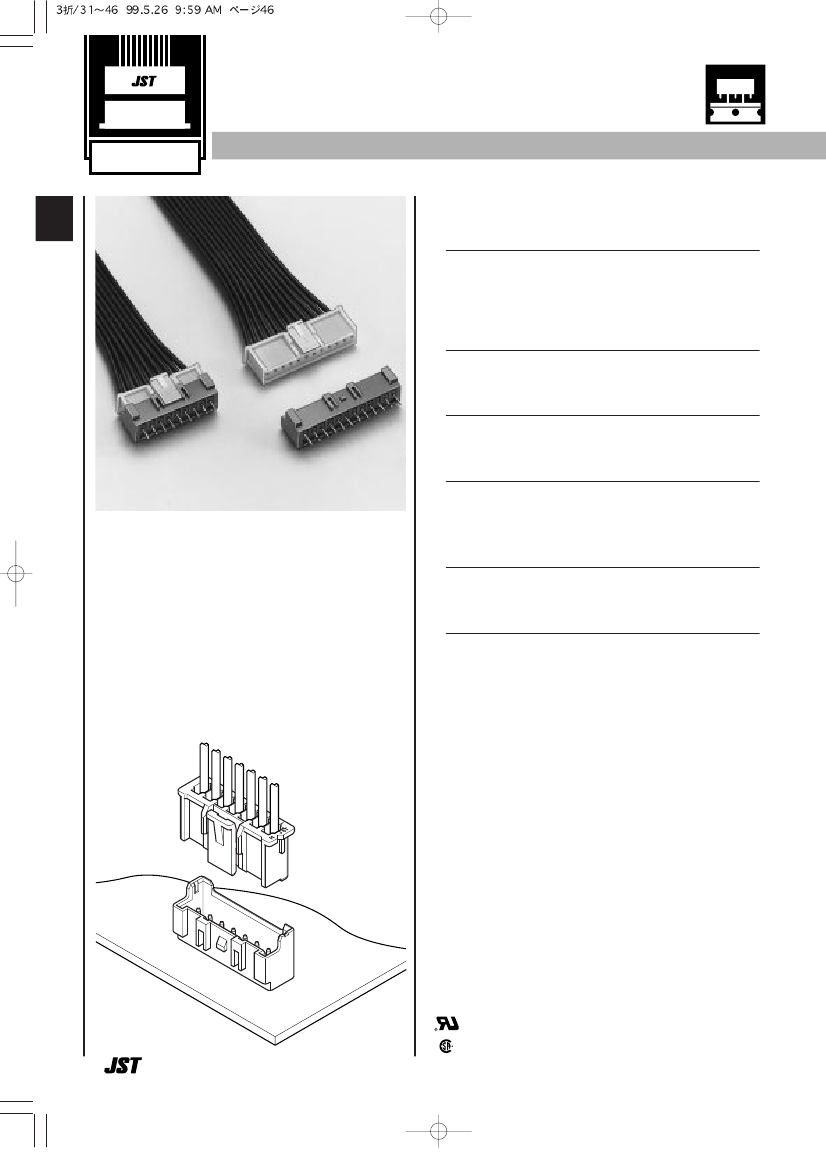

Crimp

CONNECTOR

Disconnectable Crimp style connectors

• Locking device

process or of vibration.

Radial Tape

2.5mm

(.098") pitch

Features –––––––––––––––––––––––

The housing has a locking device to securely hold the header,

preventing accidental disconnection because of external forces

that might result from the routing of wires during assembly

• Solder crack preventive material

Header wafer is made of glass-filled PA66 nylon thus effective

against the solder crack problem.

• Low insertion force

Header pins are round and reflow-treated, which provides low

insertion force.

• Insertion guide mechanism

Header has housing insertion guides for easy and secure

insertion.

• Applicable to automatic board mounting

machine

Radial taped or stick-mounted headers are also available for

automatic component insertion machine.

• Polarizing boss

Headers with polarizing bosses are also available.

Specifications–––––––––––––––––––

• Current rating: 3.0A AC DC

• Voltage rating: 250V AC DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10mΩ max.

After environmental testing/20mΩ max.

• Insulation resistance: 1,000MΩ min.

• Withstanding voltage: AC 1,000V/minute

• Applicable wire: AWG#28 to #22

• Applicable PC board thickness: 1.6mm (.063")

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized file No. E60389

Certified file No. LR20812

BM11B-XASS-TF Related Products

	BM11B-XASS-TF	BM10B-XASS-TF	BM14B-XASS-TF
Description	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Other features	SHROUDED, TOP ENTRY	SHROUDED, TOP ENTRY	SHROUDED, TOP ENTRY
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER COPPER	TIN LEAD OVER COPPER	TIN LEAD OVER COPPER
Contact completed and terminated	TIN LEAD OVER COPPER	TIN LEAD OVER COPPER	TIN LEAD OVER COPPER
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	XA	XA	XA
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	10	14
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
