UP2.8B-3R3-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> UP2.8B-3R3-R

UP2.8B-3R3-R: DescriptionGeneral Purpose Inductor, 3.3uH, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size85KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

UP2.8B-3R3-R Overview

General Purpose Inductor, 3.3uH, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

UP2.8B-3R3-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.0474 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UP2.8B
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

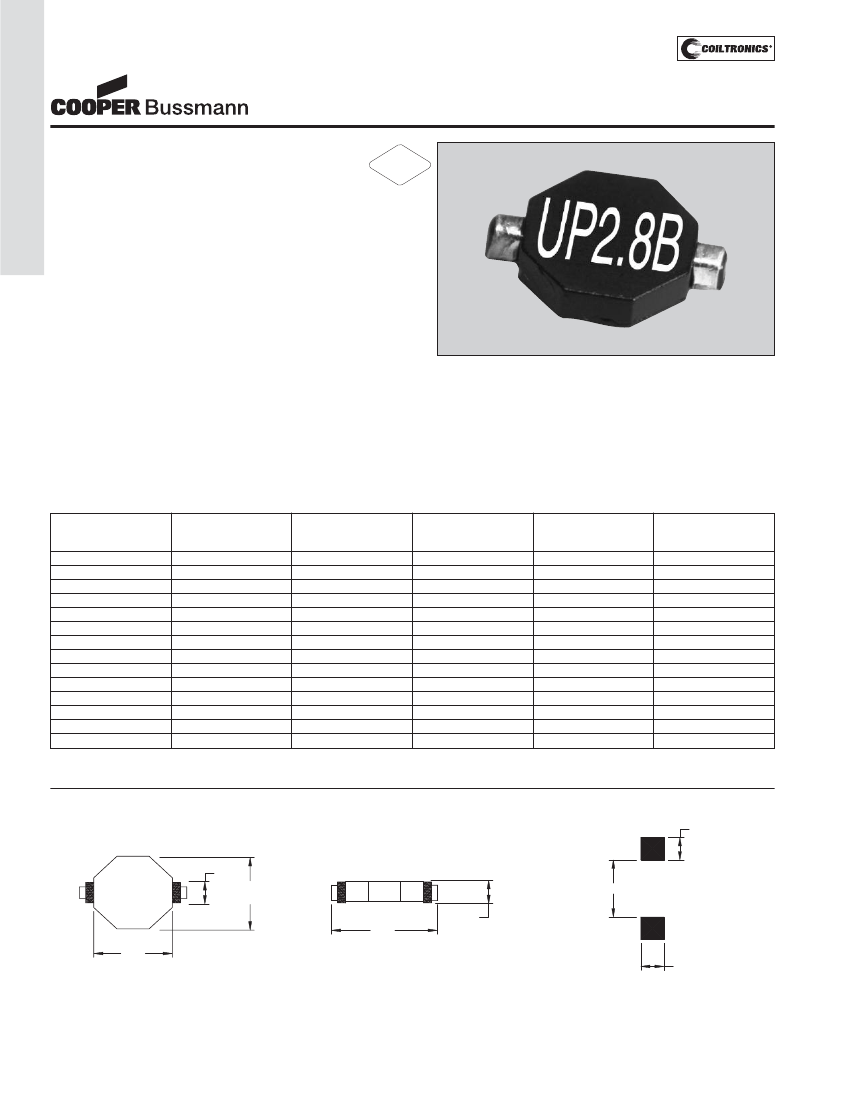

UNSHIELDED DRUM CORE (UP2.8B) UNI-PAC™ 2.8B

UNI-PAC™ 2.8

Low Cost, Low Profile 2.8mm

Power Inductors (Surface Mount)

Description

RoHS

2002/95/EC

• Miniature size and rugged construction

• Low DCR and high efficiency

• Suited for IR and vapor reflow solder

• Designed for high shock environments

• Frequency range 1kHz to 2MHz

• Ferrite core material

Applications

• DC-DC converters

• Filter inductors

• Signal conditioning

• Energy storage applications

• Computer, pager and battery powered equipment

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +85°C

range is application specific. Temperature rise is

approximately 40°C at rated RMS current. Maximum

operating temperature is 125°C including ambient.

• Solder reflow temperature: +260°C max. for 10 seconds

max.

Part

Number

UP2.8B-1R0-R

UP2.8B-1R5-R

UP2.8B-2R2-R

UP2.8B-3R3-R

UP2.8B-4R7-R

UP2.8B-6R8-R

UP2.8B-100-R

UP2.8B-150-R

UP2.8B-220-R

UP2.8B-330-R

UP2.8B-470-R

UP2.8B-680-R

UP2.8B-101-R

UP2.8B-151-R

Inductance

μH

(Rated)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

OCL (1)

μH ± 20%

0.98

1.59

2.44

3.24

4.15

6.73

100

150

Packaging

• Supplied in tape and reel packaging, 1,750 per reel

Irms (2)

Amperes

3.6

3.3

3.1

2.8

2.7

2.4

2.1

1.7

1.5

1.3

1.0

.89

.78

.62

Isat (3)

Amperes

8.0

6.4

5.2

4.5

3.9

3.2

2.7

2.2

1.7

1.5

1.2

1.0

.84

.74

DCR (4)

Ohms

(Max.)

.0286

.0349

.0356

.0474

.0478

.067

.080

.120

.190

.250

.340

.480

.622

.971

1) Open Circuit Inductance Test Parameters: 100kHz, 0.250 Vrms, 0.0 Adc

2) RMS current, delta temp. of 40° C ambient temperature of 85° C

3) Peak current for approximately 10% roll-off @ 20°C

4) Values @ 20° C

Mechanical Diagrams

TOP VIEW

Recommended PCB Layout

2.92

2.63

max

FRONT VIEW

9.4

max

12.9

max

2.8

max

7.37

UP2.8B

xxx

wwllyy R

9.4

max

Dimensions in Millimeters.

wwllyy = date code R = (revision level)

xxx = Inductance value per family chart

2.79

Component View

PM-132

Recommended Resources

Infrared light signal receiving circuit

Gyro amplifier circuit

Common high input impedance buffer amplifier circuit

PHS-29A acidity meter circuit

614-M (500VA) AC voltage regulator circuit
